Gear Milling Tools: A Guide to Understanding and Using Them

Gear milling tools are essential for creating the intricate gears used in a wide range of machinery, from cars to industrial equipment. These tools come in many different shapes and sizes and require a skilled operator to use them effectively.

First, let’s define what we mean by “gear milling tools.” These are cutting tools that are used to create gears through a process called gear milling. Gear milling involves cutting grooves or teeth into a gear blank to create the finished gear.

There are several types of gear milling tools, including gear hobs, gear shaper cutters, and gear milling cutters. Each type of tool is designed for a specific type of gear milling operation.

Gear hobs are cylindrical tools that are used to cut straight, helical, or spiral gears. They are typically made from high-speed steel or carbide and come in a range of sizes and shapes.

Gear shaper cutters are specialized tools that are used to create internal or external gears with specific shapes, such as bevel gears or worm gears. They are typically made from high-speed steel or carbide and require a specialized machine called a gear shaper to operate.

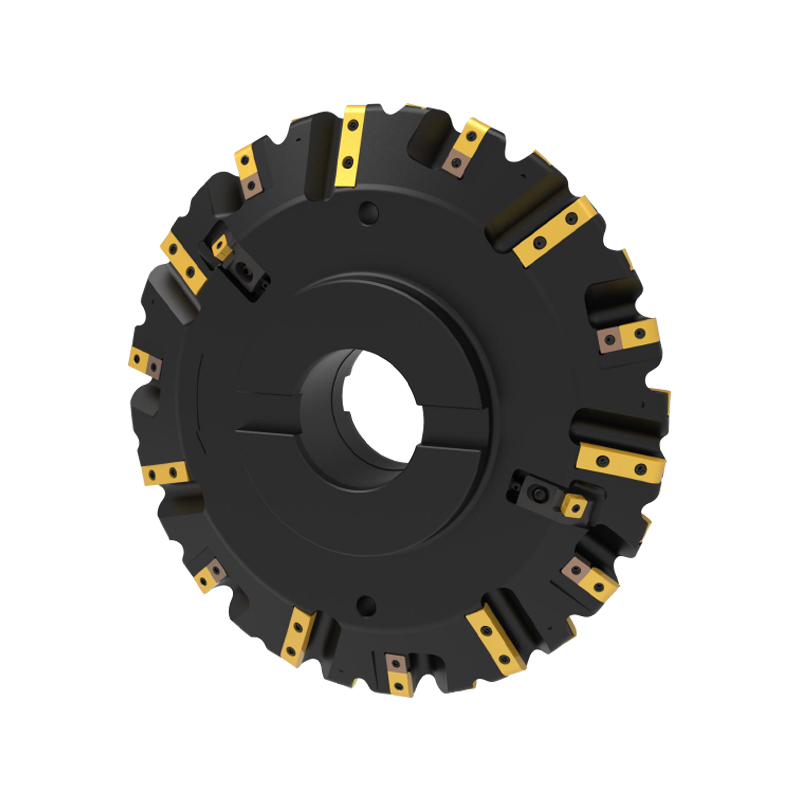

Gear milling cutters are similar to end mills but are designed specifically for milling gears. They come in many different shapes and sizes, including involute gear cutters, gear rack cutters, and circular gear cutters.

When it comes to using gear milling tools, it’s important to have a skilled operator who can properly set up the machine and tooling. The operator must also be able to choose the appropriate tooling and cutting parameters to achieve the desired gear specifications.

It’s also important to use high-quality materials when creating gears with gear milling tools. The gear blank should be made from a high-quality steel or other material that can withstand the stress and wear of regular use.

In conclusion, gear milling tools are essential for creating the gears used in a wide range of machinery. They come in many different types and require a skilled operator to use them effectively. Whether you’re creating gears for a car or industrial equipment, understanding the basics of gear milling tools is essential for achieving the desired results.
