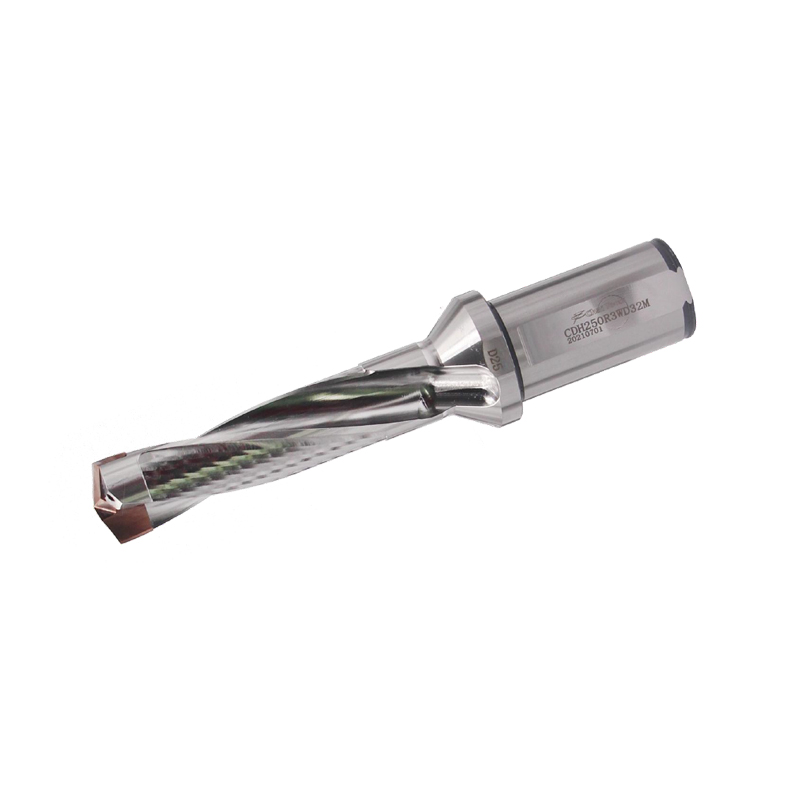

CDH-R7/R10 Head changeable drill

HEAD CHANGABLE DRILL HOLDER

Contact now

FEATURE
INQUIRY

• CDH •7 x D /10 x D • METRIC

PRODUCT MODEL	PRODUCT MODEL	DIMENSION

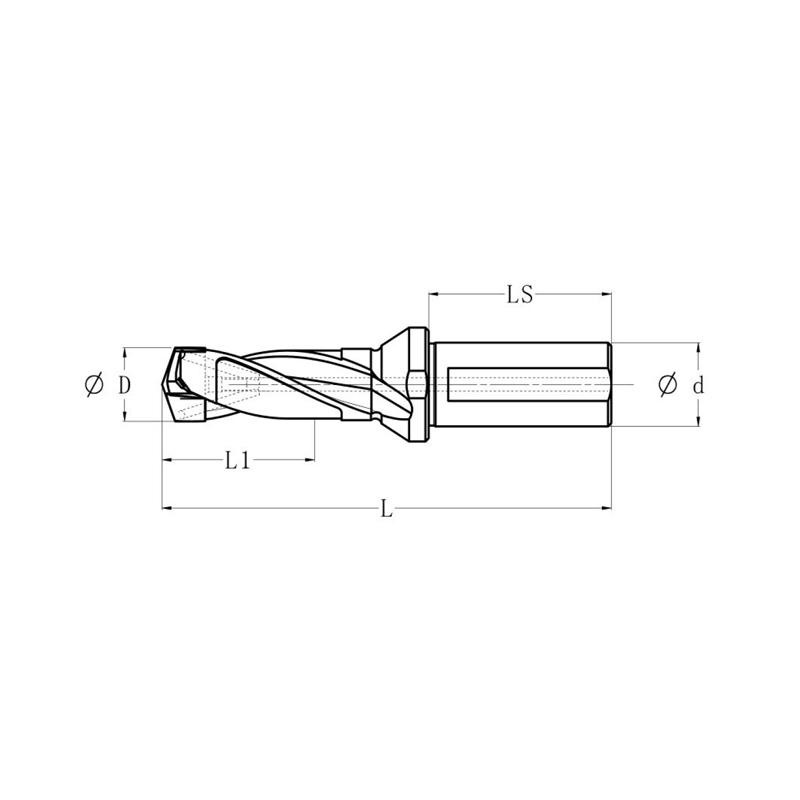

PRODUCT MODEL	PRODUCT MODEL	D		Dmax		LI		LS	d	SIZE
7 x D	10 x D	mm	in	mm	in	7XD	10XD	LS	d	SIZE
CDH125R7WD16M	CDH125R10WD16M	12. 500	0.4921	13. 000	0.5118	98	125	48	16	C
CDH130R7WD16M	CDH130R10WD16M	13. 000	0.5118	13.500	0. 5314	98	130	48	16	C
CDH135R7WD1GM	CDH135R10WD1GM	13. 500	0. 5315	13. 500	0. 5314	98	135	48	16	C
CDH136R7WD1GM	CDH136R10WD1GM	13.510	0. 5319	14.000	0. 5512	98	135	48	16	B
CDH140R7WD16M	CDH140R10WD16M	14.000	0. 5512	14. 500	0. 5708	98	140	48	16	B
CDH145R7WD20M	CDH145R10WD20M	14. 500	0. 5709	14.500	0. 5708	112	145	50	20	B
CDH146R7WD20M	CDH146R10WD20M	14.510	0. 5713	15. 000	0. 5906	112	145	50	20	A
CDH150R7WD20M	CDH150R10WD20M	15. 000	0.5906	15.500	0. 6102	112	150	50	20	A
CDH155R7WD20M	CDH155R10WD20M	15. 500	0.6102	15. 874	0.6249	112	155	50	20	A
CDH160R7WD20M	CDH160R10WD20M	16. 000	0.6299	16. 500	0. 6496	112	160	50	20	1
CDH165R7WD20M	CDH165R10WD20M	16. 500	0.6496	17. 000	0. 6693	126	165	50	20	1
CDH170R7WD20M	CDH170R10WD20M	17. 000	0.6693	17. 500	0. 6890	126	170	50	20	1
CDH175R7WD20M	CDH175R10WD20M	17. 500	0. 6890	18. 000	0. 7086	126	175	50	20	1
CDH180R7WD20M	CDH180R10WD20M	18. 000	0. 7087	18. 000	0. 7086	126	180	50	20	1
一	CDH181R10WD25M	18.010	0. 7091	18.500	0. 7283	一	185	56	25	2
CDH185R7WD25M	CDH185R10WD25M	18. 500	0. 7283	19. 000	0. 7480	140	185	56	25	2
CDH190R7WD25M	CDH190R10WD25M	19. 000	0. 7480	19.500	0. 7677	140	190	56	25	2
CDH195R7WD25M	CDH195R10WD25M	19. 500	0. 7677	19. 999	0. 7873	140	195	56	25	2
CDH200R7WD25M	CDH200R10WD25M	20. 000	0. 7874	20. 500	0. 8071	140	200	56	25	3
CDH205R7WD25M	CDH205R10WD25M	20. 500	0. 8071	21. 000	0. 8268	154	205	56	25	3
CDH210R7WD25M	CDH210R10WD25M	21.000	0.8268	21. 500	0. 8465	154	210	56	25	3
CDH215R7WD25M	CDH215R10WD25M	21.500	0.8465	22. 000	0. 8661	154	215	56	25	3
CDH220R7WD25M	CDH220R10WD25M	22. 000	0.8661	22. 000	0. 8661	154	220	56	25	3
一	CDH221R10WD25M	22.010	0.8665	22. 500	0. 8858	一	225	56	25	4
CDH225R7WD25M	CDH225R10WD25M	22. 500	0. 8858	23. 000	0.9055	168	225	56	25	4
CDH230R7WD25M	CDH230R10WD25M	23. 000	0.9055	23. 500	0. 9252	168	230	56	25	4
CDH235R7WD25M	CDH235R10WD25M	23. 500	0.9252	24. 000	0. 9448	168	235	56	25	4
CDH240R7WD25M	CDH240R10WD25M	24. 000	0.9449	24. 000	0. 9448	168	240	56	25	4
一	CDH241R10WD32M	24.010	0.9453	24. 500	0. 9646	一	245	60	32	5
CDH245R7WD32M	CDH245R10WD32M	24. 500	0.9646	25. 000	0. 9843	182	245	60	32	5
CDH250R7WD32M	CDH250R10WD32M	25. 000	0.9843	25. 500	1.0039	182	250	60	32	5
CDH255R7WD32M	CDH255R10WD32M	25. 500	1. 0039	26. 000	1.0236	182	255	60	32	5
CDH260R7WD32M	CDH260R10WD32M	26. 000	1.0236	26. 000	1.0236	182	260	60	32	5
一	CDH261R10WD32M	26. 010	1.0240	26. 500	1. 0433	一	265	60	32	6
CDH265R7WD32M	CDH265R10WD32M	26. 500	1. 0433	27. 000	1.0630	196	265	60	32	6
CDH270R7WD32M	CDH270R10WD32M	27. 000	1.0630	27. 500	1. 0827	196	270	60	32	6
CDH275R7WD32M	CDH275R10WD32M	27. 500	1.0827	28. 000	1.1023	196	275	60	32	6
CDH280R7WD32M	CDH280R10WD32M	28. 000	1.1024	28. 000	1.1023	196	280	60	32	6
一	CDH281R10WD32M	28.016	1.1030	28. 500	1. 1220	一	285	60	32	7
CDH285R7WD32M	CDH285R10WD32M	28. 500	1.1220	29. 000	1. 1417	210	285	60	32	7
CDH290R7WD32M	CDH290R10WD32M	29. 000	1.1417	29. 500	1.1614	211	290	60	32	7
CDH295R7WD32M	CDH295R10WD32M	29. 500	1.1614	30. 000	1. 1811	212	295	60	32	7
CDH300R7WD32M	CDH300R10WD32M	30. 000	1.1811	30. 000	1.8110	213	300	60	32	7
一	CDH301R10WD32M	30. 010	1.1815	30. 500	1. 2008	一	305	60	32	8
CDH305R7WD32M	一	30. 500	1.2008	31.000	1.2205	224	一	60	32	8
CDH310R7WD32M	CDH310R10WD32M	31.000	1. 2205	31. 500	1.2402	224	310	60	32	8
CDH315R7WD32M	一	31.500	1. 2402	32. 000	1.2598	224	一	60	32	8
CDH320R7WD32M	CDH320R10WD32M	32. 000	1.2598	32. 000	1.2598	224	320	60	32	8

•This tool holer has internal coolant
•holder should use correct inerts，Inserts to be ordered separaC59

•For information on adapting screw wrenches, see page C61; for usage, see page C62
