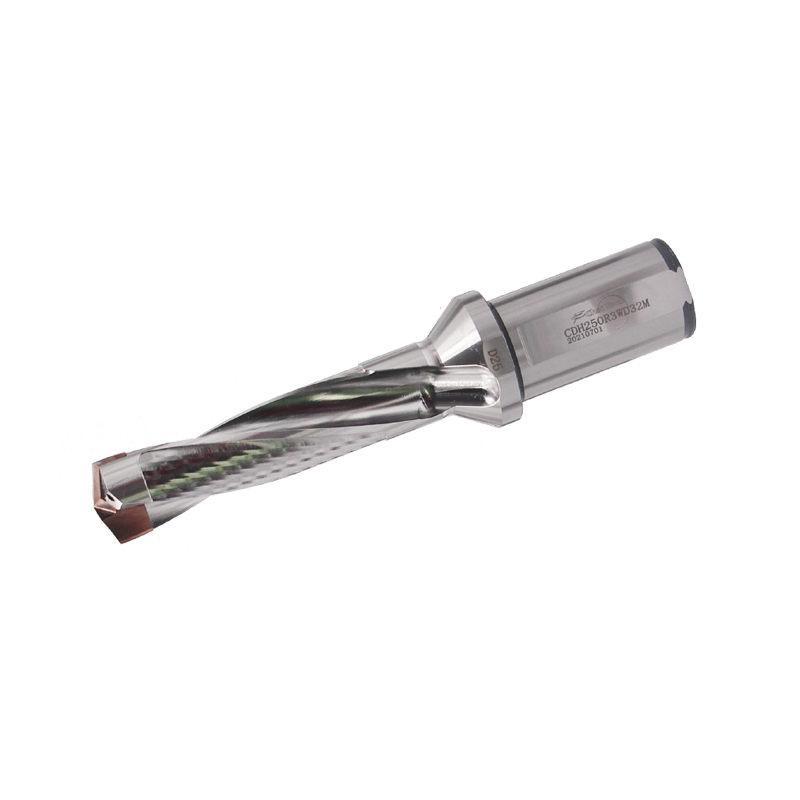

CDH-R3/R5 Head changeable drill

HEAD CHANGABLE DRILL HOLDER

Contact now

FEATURE
INQUIRY

• CDH • 3 x D / 5 x D • METRIC

PRODUCT MODEL	PRODUCT MODEL	DIMENSION
PRODUCT MODEL	PRODUCT MODEL	D		Dmax		LI		LS	d	SIZE
3 x D	5 x D	mm	in	mm	in	3XD	5XD	LS	d	SIZE
CDH125R3WD16M	CDH125R5WD16M	12. 500	0.4921	13. 000	0.5118	42	70	48	16	C
CDH130R3WD16M	CDH130R5WD16M	13. 000	0.5118	13. 500	0. 5314	42	70	48	16	C
CDH135R3WD16M	CDH135R5WD16M	13. 500	0. 5315	13. 500	0. 5314	42	70	48	16	C
CDH136R3WD16M	CDH136R5WD16M	13.510	0. 5319	14. 000	0. 5512	42	70	48	16	B
CDH140R3WD16M	CDH140R5WD16M	14.000	0. 5512	14. 500	0. 5708	42	70	48	16	B
CDH145R3WD20M	CDH145R5WD20M	14.500	0. 5709	14. 500	0. 5708	48	80	50	20	B
CDH146R3WD20M	CDH146R5WD20M	14.510	0. 5713	15. 000	0. 5906	48	80	50	20	A
CDH150R3WD20M	CDH150R5WD20M	15. 000	0.5906	15. 500	0. 6102	48	80	50	20	A
CDH155R3WD20M	CDH155R5WD20M	15. 500	0.6102	15. 874	0.6249	48	80	50	20	A
CDH160R3WD20M	CDH160R5WD20M	16. 000	0.6299	16. 500	0.6496	48	80	50	20	1
CDH165R3WD20M	CDH165R5WD20M	16. 500	0. 6496	17. 000	0.6693	54	90	50	20	1
CDH170R3WD20M	CDH170R5WD20M	17. 000	0.6693	17. 500	0.6890	54	90	50	20	1
CDH175R3WD20M	CDH175R5WD20M	17. 500	0. 6890	18. 000	0. 7086	54	90	50	20	1
CDH180R3WD20M	CDH180R5WD20M	18. 000	0. 7087	18. 000	0. 7086	54	90	50	20	1
	CDH181R5WD25M	18.010	0. 7091	18. 500	0. 7283	一	100	56	25	2
CDH185R3WD25M	CDH185R5WD25M	18. 500	0. 7283	19. 000	0. 7480	60	100	56	25	2
CDH190R3WD25M	CDH190R5WD25M	19. 000	0. 7480	19. 500	0. 7677	60	100	56	25	2
CDH195R3WD25M	CDH195R5WD25M	19. 500	0. 7677	19. 999	0. 7873	60	100	56	25	2
CDH200R3WD25M	CDH200R5WD25M	20. 000	0. 7874	20. 500	0. 8071	60	100	56	25	3
CDH205R3WD25M	CDH205R5WD25M	20. 500	0. 8071	21.000	0.8268	66	110	56	25	3
CDH210R3WD25M	CDH210R5WD25M	21.000	0.8268	21. 500	0.8465	66	110	56	25	3
CDH215R3WD25M	CDH215R5WD25M	21.500	0.8465	22. 000	0. 8661	66	110	56	25	3
CDH220R3WD25M	CDH220R5WD25M	22. 000	0.8661	22. 000	0. 8661	66	110	56	25	3
	CDH221R5WD25M	22.010	0.8665	22. 500	0.8858	一	120	56	25	4
CDH225R3WD25M	CDH225R5WD25M	22. 500	0. 8858	23. 000	0.9055	72	120	56	25	4
CDH230R3WD25M	CDH230R5WD25M	23. 000	0.9055	23. 500	0.9252	72	120	56	25	4
CDH235R3WD25M	CDH235R5WD25M	23. 500	0.9252	24. 000	0.9448	72	120	56	25	4
CDH240R3WD25M	CDH240R5WD25M	24. 000	0.9449	24.000	0.9448	72	120	56	25	4
	CDH241R5WD32M	24.010	0.9453	24.500	0. 9646	一	130	60	32	5
CDH245R3WD32M	CDH245R5WD32M	24. 500	0.9646	25. 000	0. 9843	78	130	60	32	5
CDH250R3WD32M	CDH250R5WD32M	25. 000	0.9843	25. 500	1.0039	78	130	60	32	5
CDH255R3WD32M	CDH255R5WD32M	25. 500	1. 0039	26. 000	1.0236	78	130	60	32	5
CDH260R3WD32M	CDH260R5WD32M	26. 000	1.0236	26. 000	1.0236	78	130	60	32	5
	CDH261R5WD32M	26. 010	1. 0240	26. 500	1. 0433	一	140	60	32	6
CDH265R3WD32M	CDH265R5WD32M	26. 500	1. 0433	27. 000	1.0630	84	140	60	32	6
CDH270R3WD32M	CDH270R5WD32M	27. 000	1.0630	27. 500	1. 0827	84	140	60	32	6
CDH275R3WD32M	CDH275R5WD32M	27. 500	1.0827	28. 000	1.1023	84	140	60	32	6
CDH280R3WD32M	CDH280R5WD32M	28. 000	1.1024	28. 000	1.1023	84	140	60	32	6
	CDH281R5WD32M	28.016	1.1030	28. 500	1. 1220	一	150	60	32	7
CDH285R3WD32M	CDH285R5WD32M	28. 500	1.1220	29. 000	1. 1417	90	150	60	32	7
CDH290R3WD32M	CDH290R5WD32M	29. 000	1.1417	29. 500	1. 1614	90	150	60	32	7
CDH295R3WD32M	CDH295R5WD32M	29. 500	1.1614	30. 000	1. 1811	90	150	60	32	7
CDH300R3WD32M	CDH300R5WD32M	30. 000	1.1811	30. 000	1. 1811	90	150	60	32	7
	CDH301R5WD32M	30. 010	1.1815	30. 500	1. 2008	一	160	60	32	8
CDH305R3WD32M	CDH305R5WD32M	30. 500	1. 2008	31. 000	1.2205	96	160	60	32	8
CDH310R3WD32M	CDH310R5WD32M	31.000	1. 2205	31. 500	1. 2402	96	160	60	32	8
CDH315R3WD32M	CDH315R5WD32M	31.500	1. 2402	32. 000	1. 2598	96	160	60	32	8
CDH320R3WD32M	CDH320R5WD32M	32. 000	1. 2598	32. 000	1. 2598	96	160	60	32	8

•This tool holer has internal coolant
•holder should use correct inerts，Inserts to be ordered separaC57

•For information on adapting screw wrenches, see page C61; for usage, see page C62
