CHB4 Head changeable drill

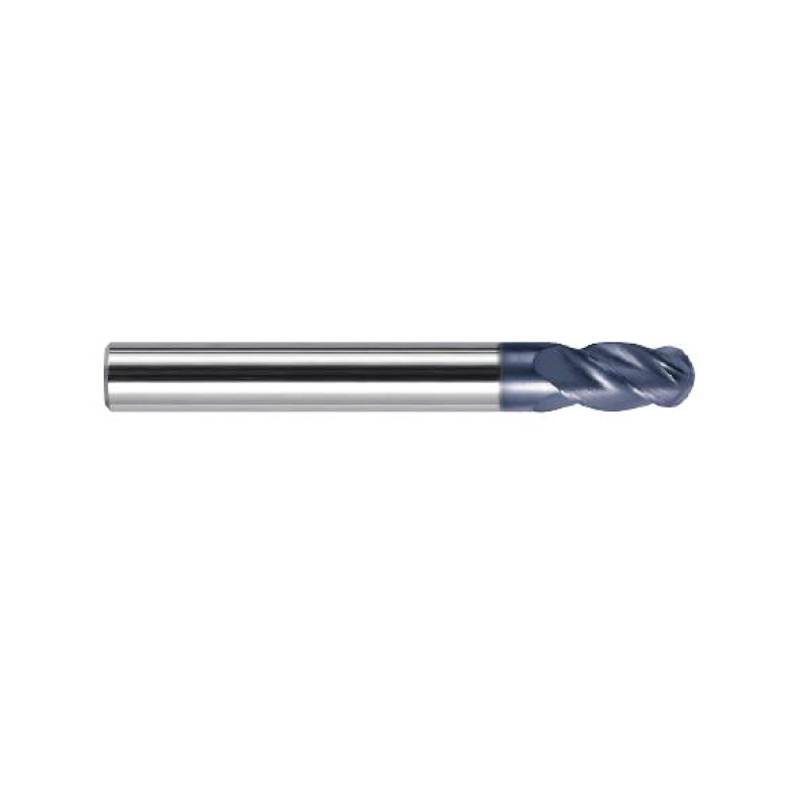

High hardness steel machining, four-blade straight shank ball nose solid carbide end mill

Contact now

FEATURE
INQUIRY

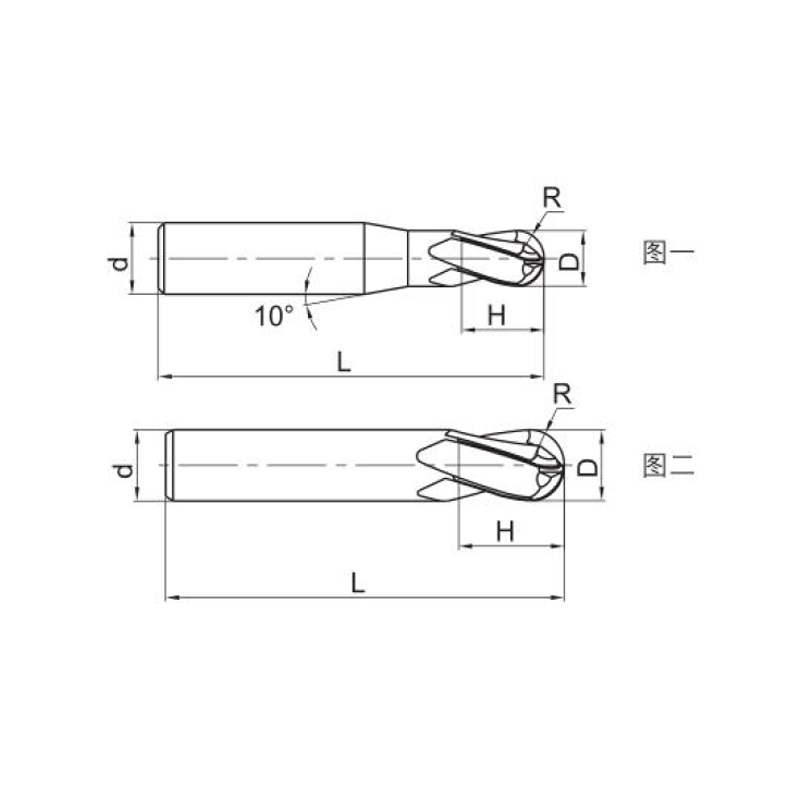

MODEL	TEETH Z	DIMENSION					PIC
MODEL	TEETH Z	D	R	d	H	L	PIC
CHB4-D030H006L50	4	3.0	1.5	6	6	50	PIC 1
CHB4-D040H008L50	4	4.0	2.0	6	8	50	PIC 1
CHB4-D050H010L50	4	5.0	2.5	6	10	50	PIC 1
CHB4-D060H012L50	4	6.0	3.0	6	12	50	PIC 2
CHB4-D080H016L60	4	8.0	4.0	8	16	60	PIC 2
CHB4-D100H020L75	4	10.0	5.0	10	20	75	PIC 2
CHB4-D120H024L75	4	12.0	6.0	12	24	75	PIC 2
CHB4-D140H028L75	4	14.0	7.0	14	28	75	PIC 2
CHB4-D160H032L100	4	16.0	8.0	16	32	100	PIC 2
CHB4-D180H036L100	4	18.0	9.0	18	36	100	PIC 2
CHB4-D200H040L100	4	20.0	10.0	20	40	100	PIC 2

material

Carbon

steel

ALLOY

Pre-hardened steel, hardened steel

CAST iron Ductile Iron

COOPER

ALLOY

ALU

ALLOY

Titan

alloy

Heat

res.

alloy

〜40HRC

〜50HRC

〜55HRC

♦

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CHB4 Head changeable drill suppliers and Wholesale CHB4 Head changeable drill company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
