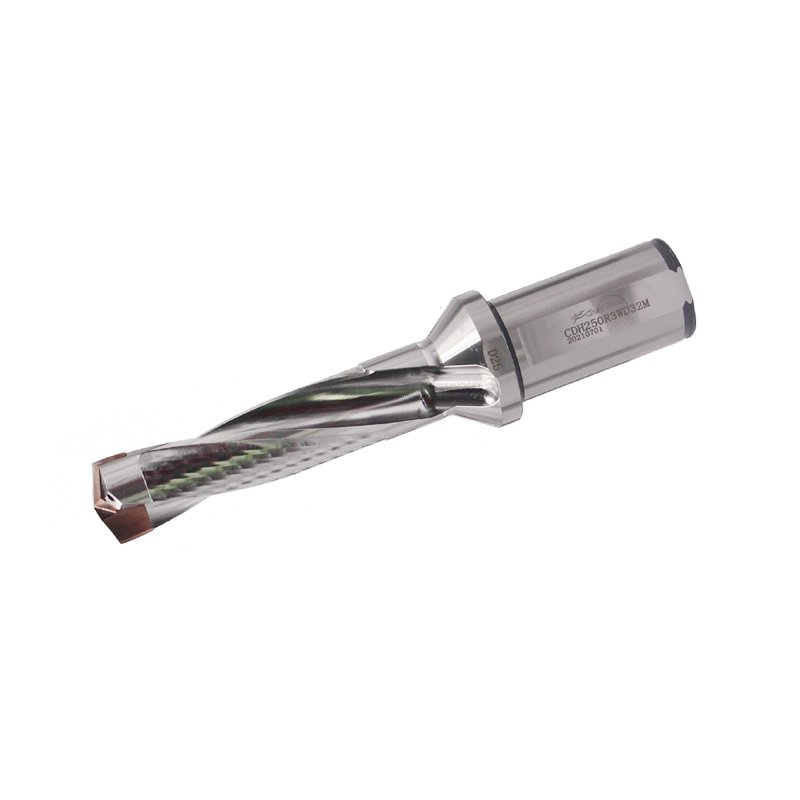

CDH-R1 Head changeable drill

HEAD CHANGABLE DRILL HOLDER

Contact now

FEATURE
INQUIRY

• CDH • 1 x D • METRIC

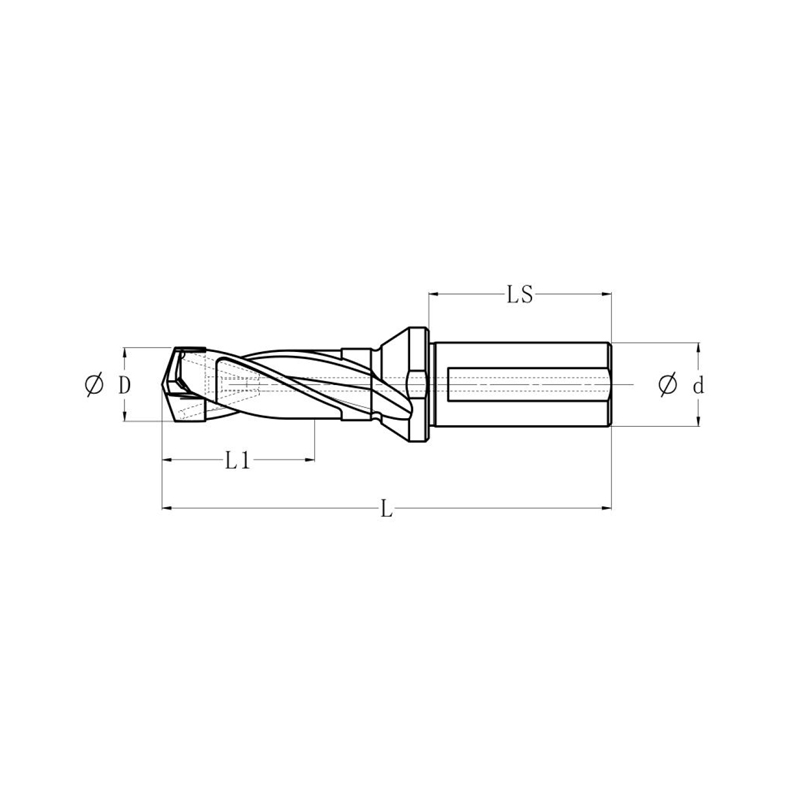

PRODUCT MODEL	DIMENSION
PRODUCT MODEL	D		Dmax		LI	LS	d	L	HOLDER SIZE
1 x D	mm	in	mm	in	LI	LS	d	L	HOLDER SIZE
CDH125R1WD16M	12.500	0. 4921	13. 500	0. 5314	14	48	16	78	c
CDH136R1WD16M	13.510	0.5319	14. 500	0. 5708	15	48	16	81	B
CDH146R1WD20M	14.510	0.5713	15. 874	0.6249	16	50	20	85	A
CDH160R1WD20M	16. 000	0.6299	18.000	0. 7086	18	50	20	88	1
CDH181R1WD25M	18.010	0.7091	19. 999	0. 7873	20	56	25	99	2
CDH200R1WD25M	20. 000	0.7874	22. 000	0. 8661	22	56	25	102	3
CDH221R1WD25M	22.010	0.8665	24.000	0.9448	24	56	25	107	4
CDH241R1WD32M	24.010	0.9453	26. 000	1.0236	26	60	32	115	5
CDH261R1WD32M	26.010	1.0240	28.000	1.1023	28	60	32	119	6
CDH281R1WD32M	28.016	1.1030	30. 000	1.1811	30	60	32	123	7
CDH301R1WD32M	30.010	1.1815	32.000	1.2598	32	60	32	127	8

•This tool holer has internal coolant
•holder should use correct inerts

•Inserts to be ordered separately

•For information on adapting screw wrenches, see page C61; for usage, see page C62
