The Evolution of the Indexable U Drill: From Basic Design to High-Tech Machining Solutions

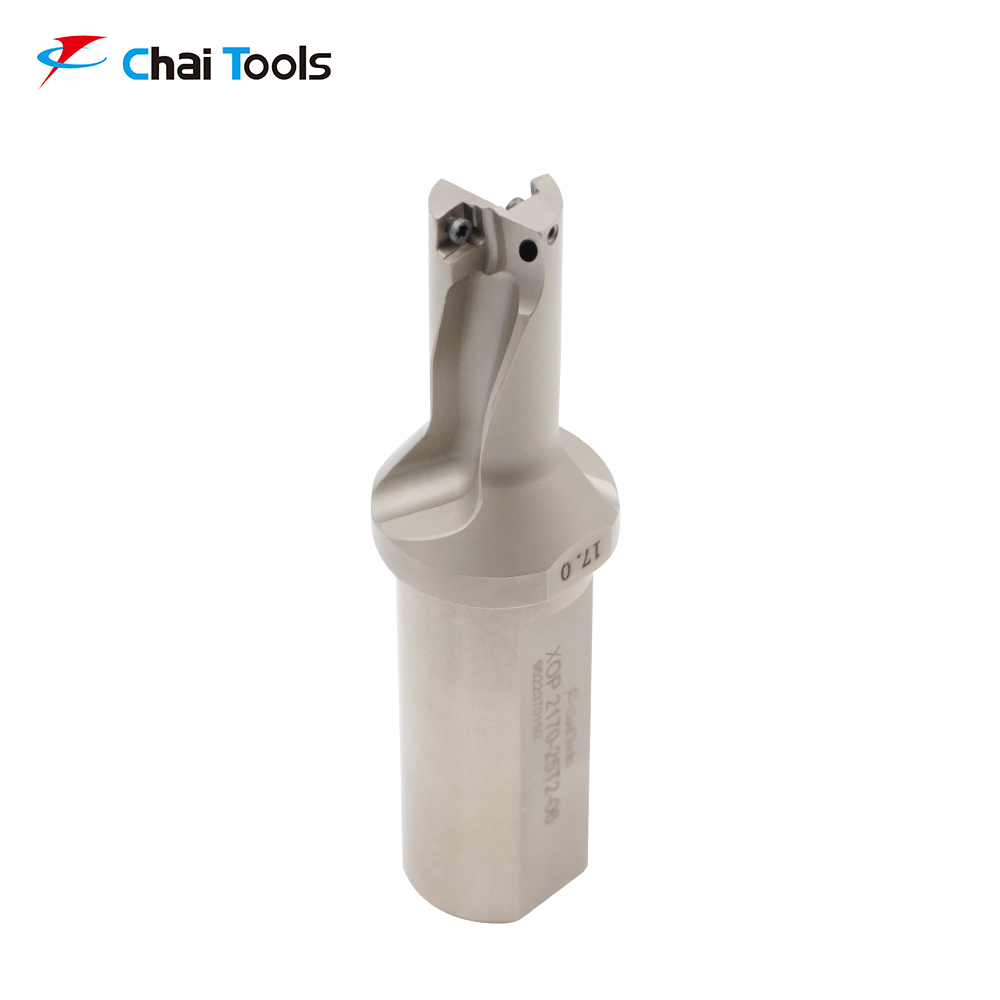

Indexable U drills, also known as U-shaped or U-drills, are a type of cutting tool that are used for drilling large holes in a variety of materials, including steel, cast iron, aluminum, and even some plastic materials. The design of the indexable U drill has evolved over the years, from simple and basic designs to high-tech and advanced machining solutions.

The earliest indexable U drills were simple in design, consisting of a single piece of tool steel with a U-shaped cutting edge. These early U drills were primarily used for drilling large holes in steel and cast iron materials. However, they had a number of limitations, such as a short lifespan and limited cutting capabilities.

As technology and machining solutions evolved, so too did the design of the indexable U drill. Today, modern indexable U drills are made with high-speed steel or carbide materials, which provide increased durability and improved cutting capabilities. They are also equipped with indexable carbide inserts, which can be easily replaced when worn or damaged, allowing for extended tool life and decreased downtime for tool changes.

One of the most important advancements in the indexable U drill industry is the introduction of multi-flute designs. These designs allow for a larger number of cutting edges, which results in faster drilling speeds, improved hole quality and longer tool life. Additionally, new coatings are also available for indexable U drill, such as TiAlN and TiN, which provide a harder and more wear-resistant surface, increasing the tool lifespan.

Another important development in the indexable U drill industry is the introduction of coolant-fed designs. These designs have coolant passages through the tool shank, which allow for the delivery of coolant directly to the cutting edge, improving cutting performance and extending tool life by reducing heat build-up.

Nowadays, indexable U drill technology is not limited to drilling large holes but also to other applications such as chamfering, countersinking, and counterboring. This added versatility increases the range of material types and thicknesses that can be processed, and allows a shop to reduce the number of tool changes and optimize their machines utilization.

With the continuous advancements in technology and machining solutions, indexable U drills have become a highly effective and efficient tool for drilling large holes in a variety of materials. They are now designed with high-speed steel or carbide materials, and equipped with indexable carbide inserts, which provide increased durability and improved cutting capabilities. They have also been designed to be adaptable to other machining operations, resulting in increased tool versatility and reduced downtime. As a result, the indexable U drill has become a vital tool for many industrial and manufacturing operations, and it will continue to play an important role in the machining industry.
