CCF…SP Milling Cutter

Chamfering Mill Holder

Contact now

FEATURE
INQUIRY

FEAURES

Applicable to all kinds of holes, edge chamfering

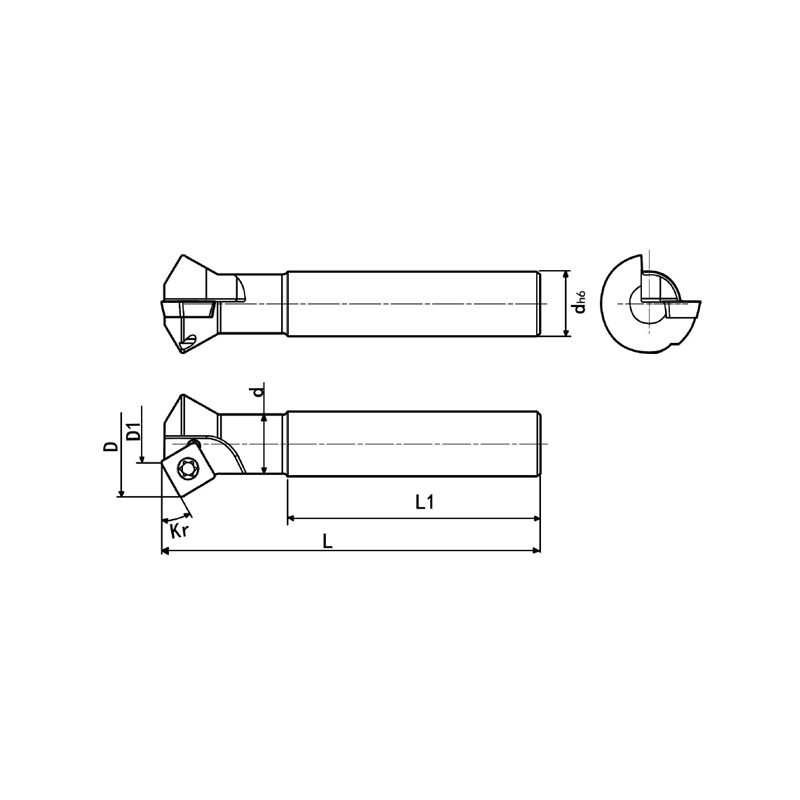

MODEL	Kr (° )		DIMENSION						INSERT
MODEL	Kr (° )		D	D1	dl	d	L	LI	INSERT
CCF30SP-112L120Y20R-12	30	1	32.4	11.6	18	20	120	80	SPKT 1204
CCF45SP-112L120Y20R-12	45	1	28.6	11.35	18	20	120	80
CCF45SP-225L160Y25R-12	45	2	41.66	24. 34	24.4	25	160	120
CCF60SP-225L160Y25R-12	60	2	36. 78	24. 48	24.4	25	160	120

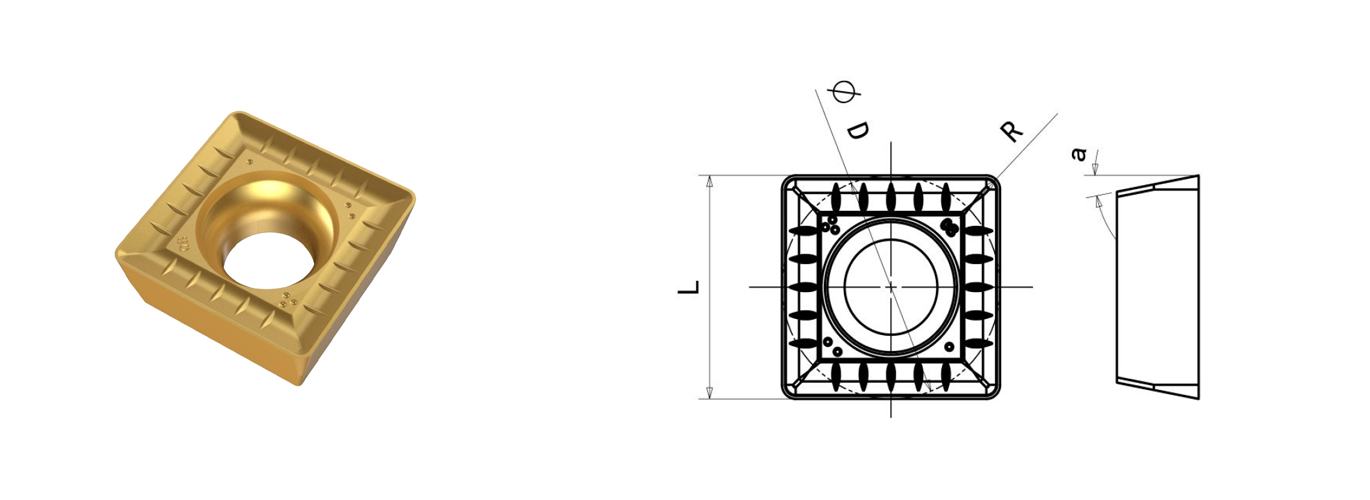

INSERTS

MODEL	DIMENSION				GRADE
MODEL	d	t	a	r	CT5320	CT7320	CT8420	CT9320
SPKT 120408-KM	12.7	4. 76	11。	0.8			•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CCF…SP	CSD5012	CTQ20
