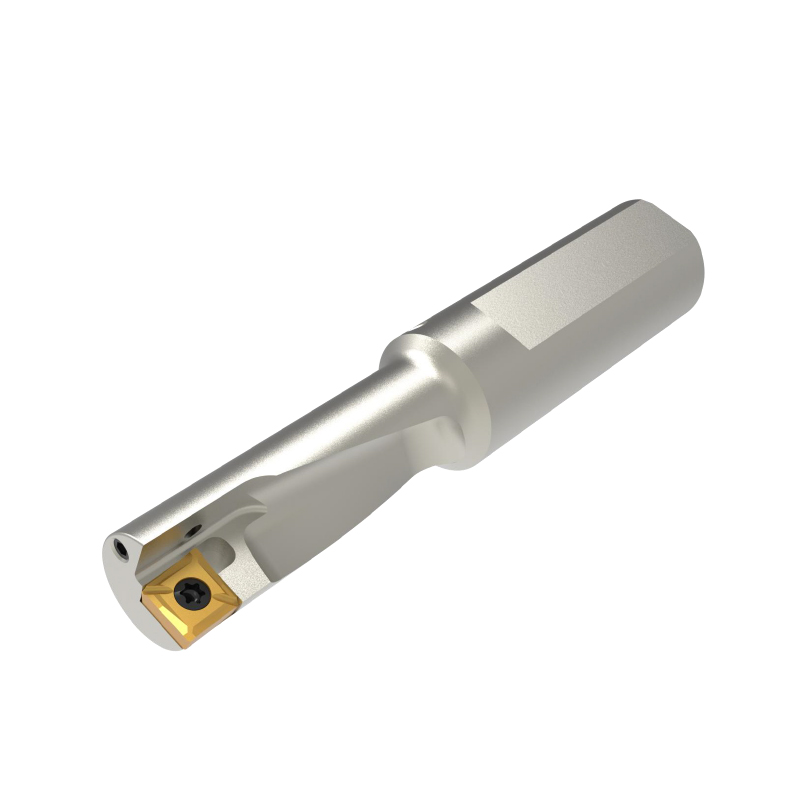

XCP．．-T1 Drill Cutter

MUTIL FUNCTION HOLDER

Contact now

FEATURE
INQUIRY

FEAURES

Multifunctional drill
Single tooth design
Suitable for drilling, boring and turning
Drilling diameter φ12～ 32mm ·Internal cooling design

◎drilling depth：3xD(diameter)

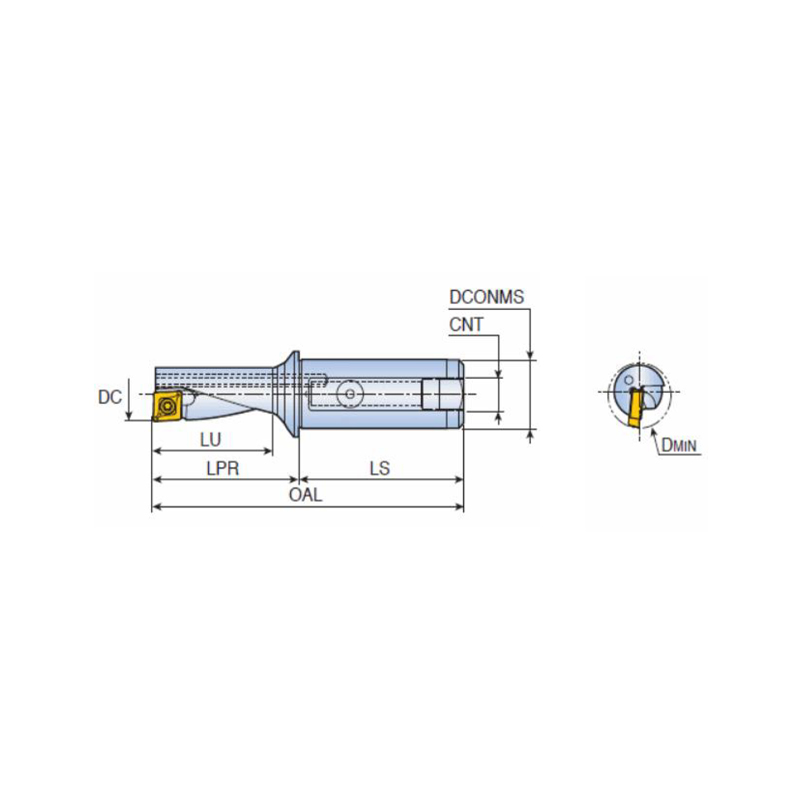

product model	dimensions								compatible inserts
product model	DC	DCONMS	WF	LU	LPR	LS	Dmin	CNT	compatible inserts
XCP 3120-16T1-06	12	16	8.5	27.0	33.0	45	14.5	Gl/8	XCMT 06
XCP 3140-16T1-07	14	16	9.5	31.5	38.5	45	16.5	Gl/8	XCMT 07
XCP 3160-20T1-08	16	20	11. 1	36.0	44.0	50	19.0	Gl/8	XCMT 08
XCP 3200-25T1-10	20	25	13.2	45.0	55.0	56	23.5	Gl/8	XCMT 10
XCP 3250-32T1-13	25	32	16.5	56.2	69.0	61	29.0	Gl/8	XCMT 13
XCP 3320-40T1-17	32	40	20.5	72.0	86.0	74	36.5	Gl/8	XCMT 17

◎Standard shank with internal coolant

◎insertsTo be ordered separately

accessory

product model	screw	wrench
product model
XCP 3120	CSG2252-P	CTS07W-P
XCP 3140	CSG2565-P	CTS08W-P
XCP 3160	CSG3085-P	CTS10W-P
XCP 3200	CSG3585-P	CTS10W-P
XCP 3250	CSC4511	CTS15W
XCP 3320	CSG5012-P	CTS20W-P

inserts model	dimensions				turning		drilling	grade
inserts model	IC	L	S	RE	DEPTH mm	FEED mm/rev	FEED mm/rev	CT5320
XCMT 060204	6.4	6.4	2. 38	0.4	0. 3-2. 5	0. 03-0. 20	0. 03-0. 12	•
XCMT 070304	7.5	7.5	3. 18	0.4	0. 4-2. 8	0. 05-0. 22	0. 03-0. 13
XCMT 080304	8.4	8.4	3. 18	0.4	0. 4-3. 2	0. 06-0. 25
XCMT 10T304	10.5	10.5	3. 97	0.4	0. 5-3. 5	0. 06-0. 30
XCMT 10T308	10.5	10.5	3. 97	0.8	0. 5-3. 5	0. 06-0. 30
XCMT 130404	13.4	13.4	4. 76	0.4	0. 6-4. 3	0. 08-0. 33
XCMT 130408	13.4	13.4	4. 76	0.8	0. 6-4. 3	0. 08-0. 33
XCMT 170508	17.4	17.4	5. 56	0.8	0. 7-5. 3	0. 10-0. 38
