LNSERIES：CE490LN End Milling Cutter

END MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ20 ～φ40mm
Vertical 4-edged blade
Common inserts for face milling, vertical milling and corn milling

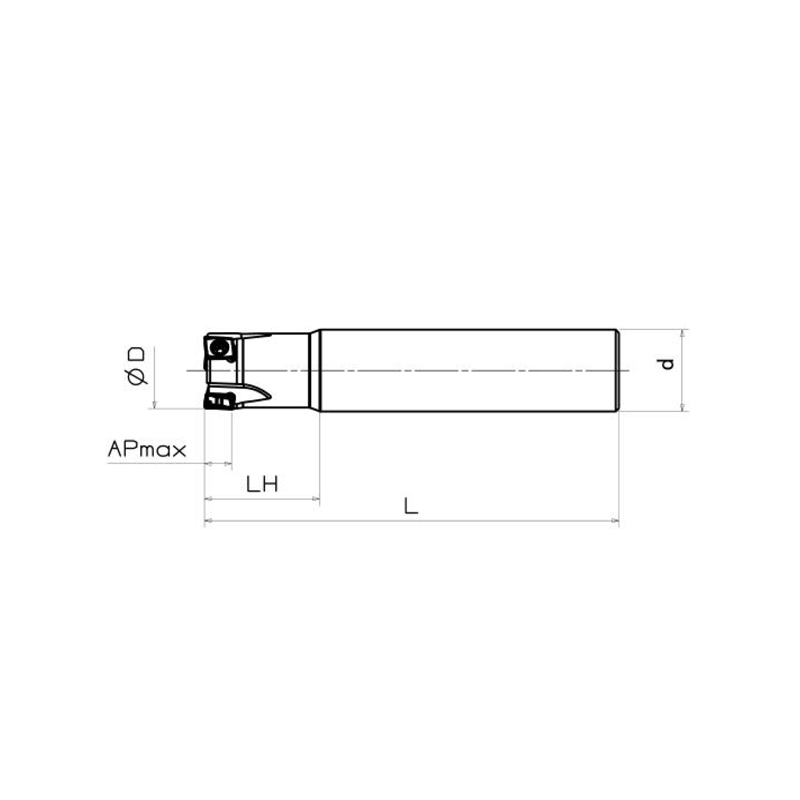

MODEL	kr			DIMENSION					SUITABLE INSERT
MODEL	kr			D	LH	d	L	APmax	SUITABLE INSERT
CE490LN-220L150Y20R-09	90°	2		20	30	20	150	8.5	LNHU 0904
CE490LN-220L150Y20R-09		3		20	30	20	150
CE490LN-325L150Y25R-09		3		25	30	25	150
CE490LN-425L150Y25R-09		4		25	30	25	150
CE490LN-332L150Y32R-09		3		32	30	32	150
CE490LN-532L150Y32R-09		5		32	30	32	150
CE490LN-440L170Y32R-09		4		40	30	32	170
CE490LN-640L170Y32R-09		6		40	30	32	170
CE490LN-230L150Y25R-12	90°	2	30		35	25	150	11.5	LNHU 1206
CE490LN-330L150Y25R-12		3	30		35	25	150
CE490LN-232L150Y32R-12		2	32		35	32	150
CE490LN-332L150Y32R-12		3	32		35	32	150
CE490LN-235L150Y32R-12		2	35		35	32	150
CE490LN-335L150Y32R-12		3	35		35	32	150
CE490LN-340L170Y32R-12		3	40		35	32	170
CE490LN-440L170Y32R-12		4	40		35	32	170

ACCESSORY

MODEL	DIA	SCREW	WRENCH
MODEL	DIA
CE490LN-09	20	CSC3080	CTS10W
CE490LN-09	25、32、40	CSC3010	CTS08W

MODEL

SCREW

WRENCH

CE490LN-12

CSC4013

CTS15W

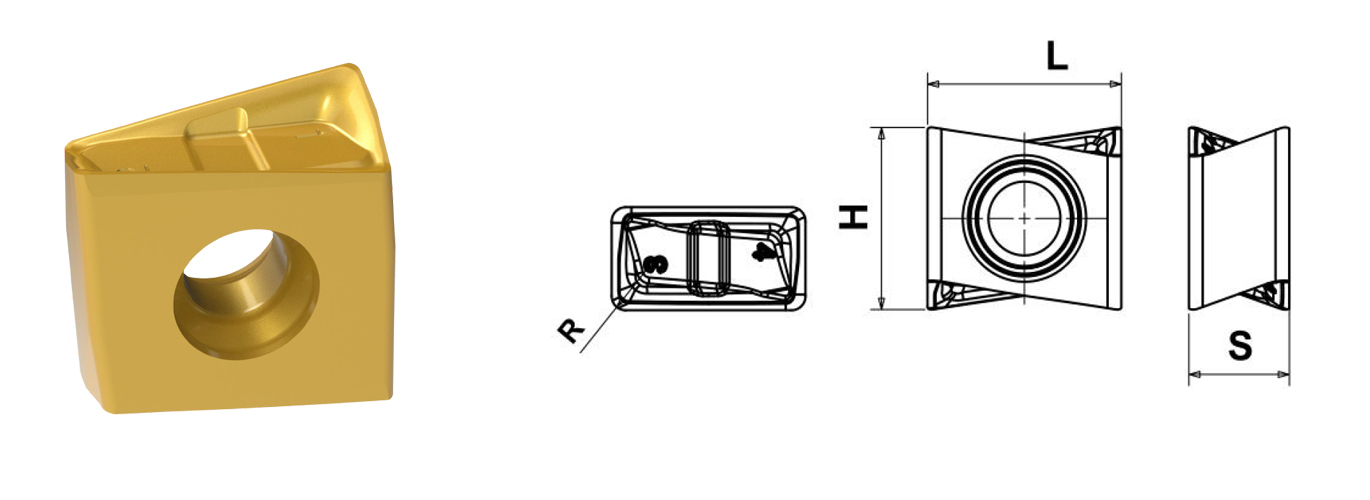

MODEL	EDGE LEONG	KR r )	DIMENSION					GRADE
MODEL	EDGE LEONG	KR r )	L	H	S	R	APmax	CT5320	CT7320	CT8320	CT101
LNHU 090404-M	09	90	9.02	8. 55	4. 48	0.4	8.5	•	•	•
LNHU 120608-M	12		12.7	13.0	6. 75	0.8	11.5	•	•	•
LNHU 120612-M	12		12.7	13.0	6. 75	1.2	11.5	•	•	•
LNHU 120608-AL	12		12.7	13.0	6. 75	0.8	11.5				•
LNHU 160808-M	16		16.4	16.2	8.0	0.8	15.0	•	•	•
