WN04SERIES：CE90WN End Milling Cutter

END MILL CUTTER HOLDER

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ20 ～φ32mm
Common inserts for face milling and vertical milling

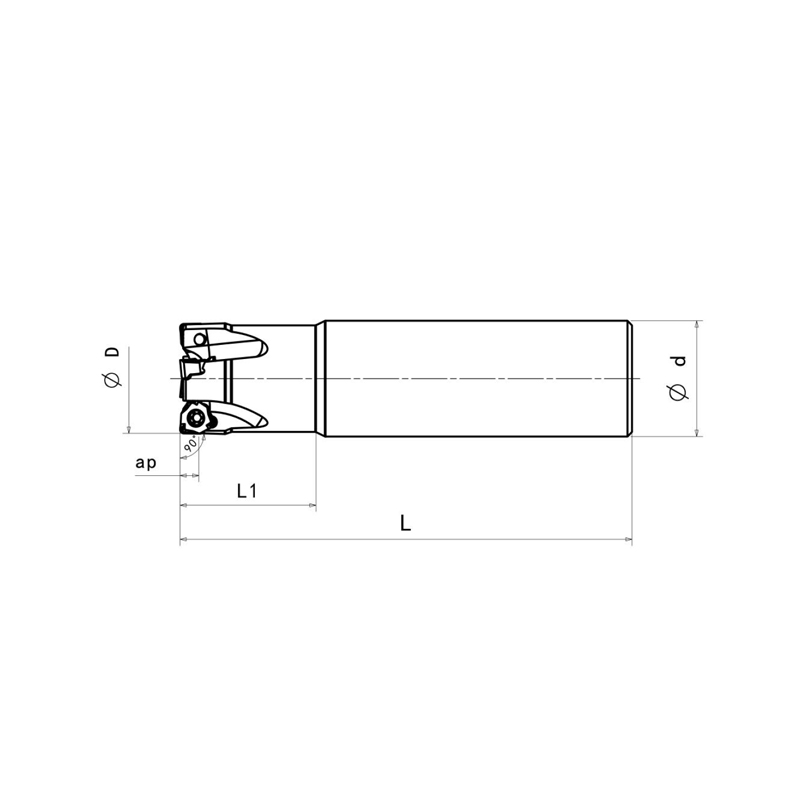

MODEL		DIMENSION					WEIGHT	SUITABLE INSERT
MODEL		D	d	L	H	ap	WEIGHT	SUITABLE INSERT
CE90WN-220L150Y20R-04	2	20	20	150	29	4.0	0.7	WNHX 0403
CE90WN-320L150Y20R-04	3	20	20	150	29	4.0	0.7
CE90WN-425L170Y25R-04	4	25	25	170	29	4.0	0.6
CE90WN-525L170Y25R-04	5	25	25	170	29	4.0	0.6
CE90WN-532L195Y32R-04	5	32	32	195	31	4.0	1.2
CE90WN-632L195Y32R-04	6	32	32	195	31	4.0	1.2
CE90WN-220M10R-04	2	20	18.3	28	M10	4.0	0. 1	WNHX 0403
CE90WN-320M10R-04	3	20	18.3	28	M10	4.0	0. 1
CE90WN-425M12R-04	4	25	23	30	M12	4.0	0.2
CE90WN-525M12R-04	5	25	23	30	M12	4.0	0.2
CE90WN-532M16R-04	5	32	30	40	M16	4.0	0.3
CE90WN-632M16R-04	6	32	30	40	M16	4.0	0.3

MODEL

EDGE

LENGT

DIMENSION

GRADE

CT5320

CT7420

CT8320

CT8420

CT7420

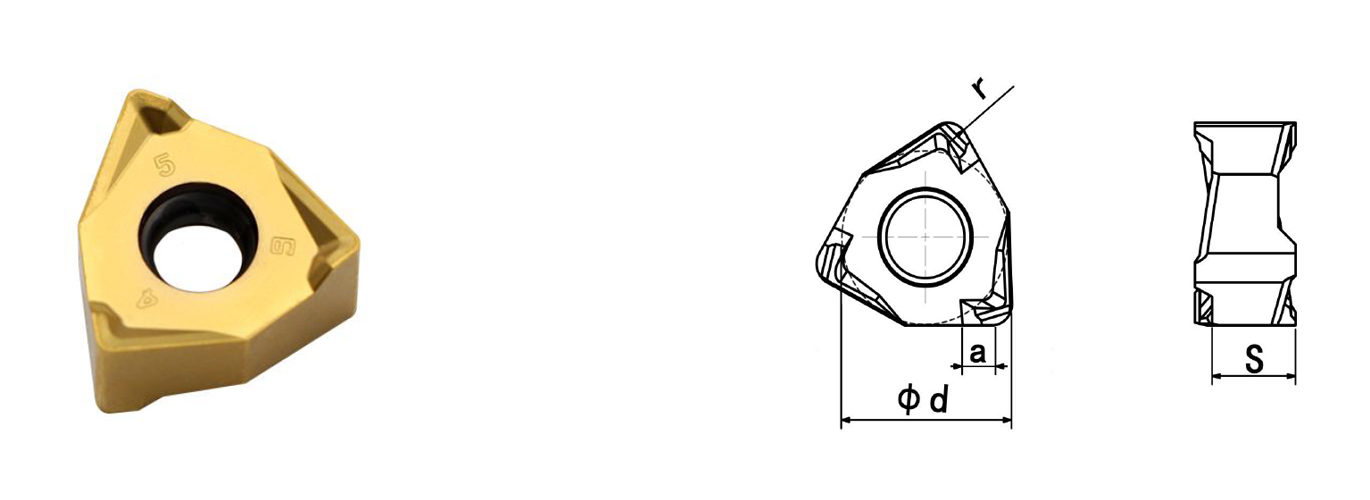

WNHX 040308-ML

7.64

0.8

3. 29

1.1

•

ACCESSORY

MODEL

SCREW

WRENCH

CE90WN

CSG2565-P

CTS08W-P
