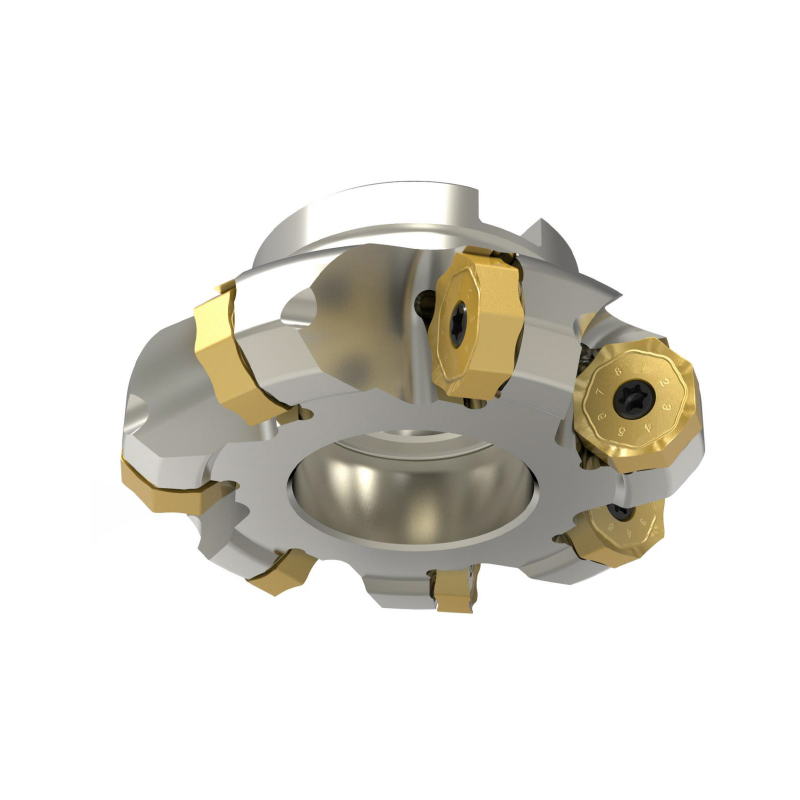

ON SERIES：CFM44ON-09 Face Milling Cutter

FACE MILL CUTTER；Kr=44°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIA φ63～φ315mm
The blade is double-sided 16-edge type, economical good, large rake design of the insert, cutting fast

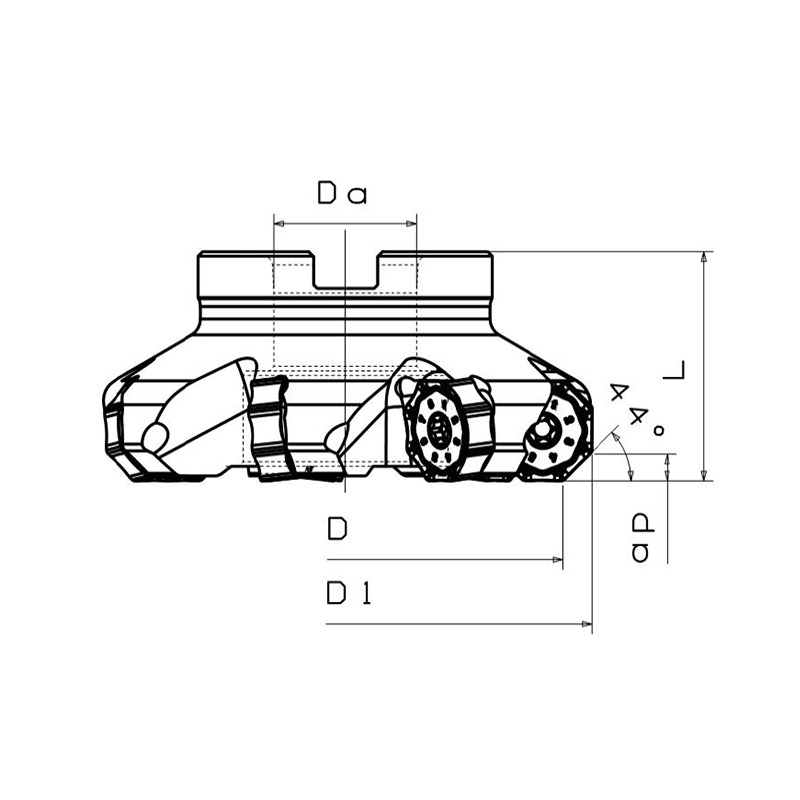

MODEL		DIMENSION					CONNE CTOR	KG	INSERT
MODEL		D	D1	L	ap	Da	CONNE CTOR	KG	INSERT
CFM440N-563A22R-09	5	63	78	40	5.0	22	A	0.6	ONGU 0905
CFM440N-663A22R-09	6	63	78	40	5.0	22	A	0.6
CFM440N-680A27R-09	6	80	95	50	5.0	27	A	1. 1
CFM440N-780A27R-09	7	80	95	50	5.0	27	A	1. 1
CFM440N-7100B32R-09	7	100	115	50	5.0	32	B	1.8
CFM440N-8100B32R-09	8	100	115	50	5.0	32	B	1.8
CFM440N-8125B40R-09	8	125	140	63	5.0	40	B	3.0
CFM440N-10125B40R-09	10	125	140	63	5.0	40	B	3.0
CFM440N-10160C40R-09	10	160	175	63	5.0	40	C	4.4
CFM440N-12160C40R-09	12	160	175	63	5.0	40	C	4.4
CFM440N-12200C60R-09	12	200	215	63	5.0	60	C	6.2
CFM440N-16250C60R-09	16	250	265	63	5.0	60	C	13.5
CFM440N-20315D60R-09	20	315	330	80	5.0	60	D	27.8

◎Standard cutter head without internal coolant; inserts to be ordered separately

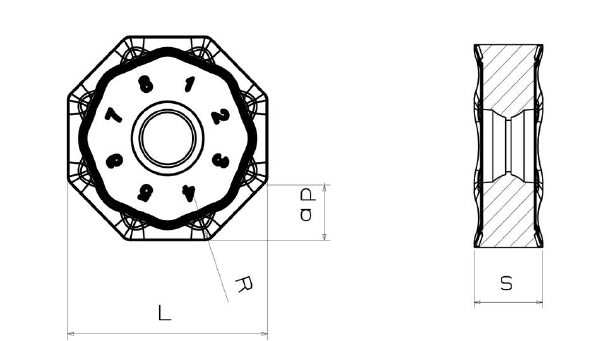

MODEL

EDGE

LONG

DIMENSION MM

GRADE

CT5320

CT5420

CT7320

CT7420

CT8320

CT8330

CT8420

ONGU 090506-ML

21.85

7. 62

5.0

0.6

•

ONGU 090506-MLW

ONGU 090510-ML

1.0

•

ONGU 090510-MLW

ONGU 090520-ML

2.0

•

-MLW groove inserts are wiper inserts

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM44ON-09	CSG5016	CTS20W
