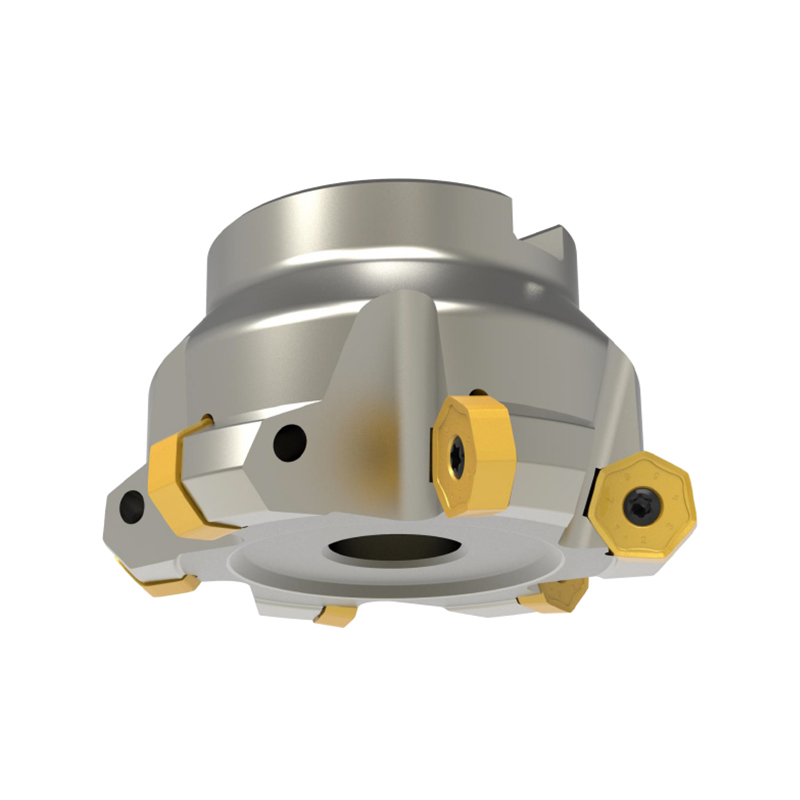

QN SERIES：CFM45QN-07S Face Milling Cutter

FACE MILL CUTTER；Kr=45°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIA φ40～φ160mm
The blade is double-sided 14-edge type, which is economical
Suitbale for steel, stainless steel, cast iron etc.

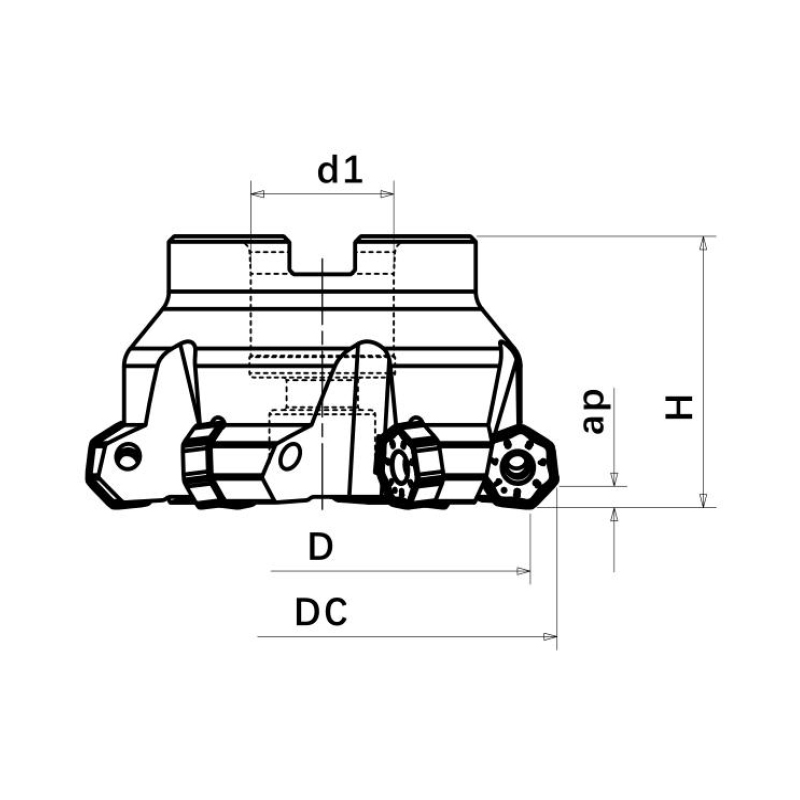

MODEL		DIMENSION MM						CONNE CTOR	KG	INSERT
MODEL		D	DC	dl	H	ap		CONNE CTOR	KG	INSERT
CFM45QN-340A16R-07S	3	40	50	16	40	4	0	A	0.5	QNGX 07 QNKX 07 QNMX 07
CFM45QN-450A22R-07S	4	50	60	22	45	4	0	A	0.5
CFM45QN-550A22R-07S	5	50	60	22	45	4	0	A	0.5
CFM45QN-563A22R-07S	5	63	73	22	45	4	0	A	0.8
CFM45QN-663A22R-07S	6	63	73	22	45	4	0	A	0.8
CFM45QN-680A27R-07S	6	80	90	27	50	4	0	A	1.5
CFM45QN-780A27R-07S	7	80	90	27	50	4	0	A	1.5
CFM45QN-7100B32R-07S	7	100	110	32	50	4	0	B	2.7
CFM45QN-8100B32R-07S	8	100	110	32	50	4	0	B	2.7
CFM45QN-8125B40R-07S	8	125	135	40	63	4	0	B	4.3
CFM45QN-10125B40R-07S	10	125	135	40	63	4	0	B	4.3
CFM45QN-9160C40R-07S	9	160	170	40	63	4	0	C	6.5
CFM45QN-12160C40R-07S	12	160	170	40	63	4	0	C	6.5

◎Standard cutter head without internal coolant; inserts to be ordered separately

◎-S CUTTER EQUIPPED WITH SCREW M4

◎CUTTER WITH INSERTS MODEL QNKX series, only for MS groove type.

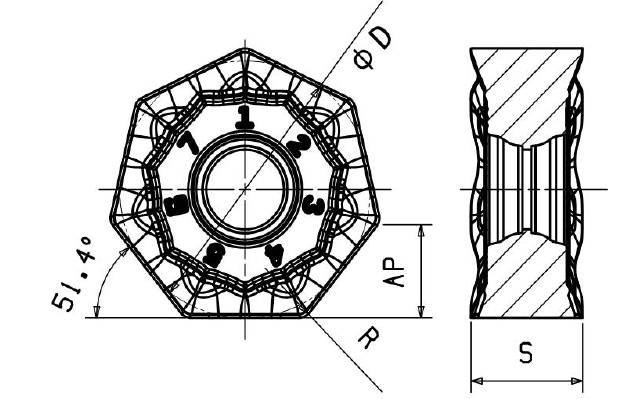

INSERT	SHAPE							INTRODUCTION			INSERT PAGE
								•Flat mount blade •Double-sided 14 blades •45° main declination angle •Maximum depth of cut 4.0mm			B37

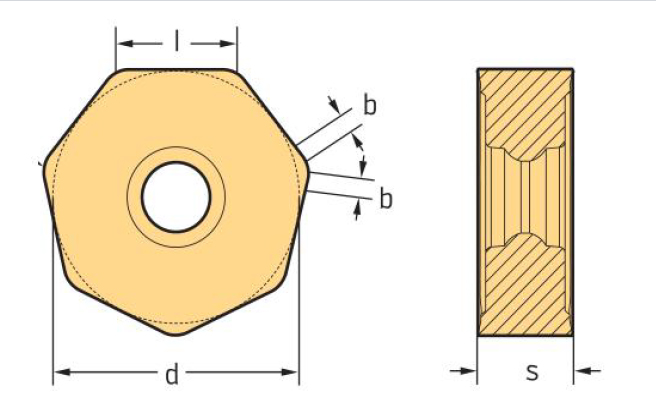

INSERT MODEL	DIMENSION MM					GRADE					SCREW/ WRENCH
	1	d	b	s	r	CT5320	CT5420	CT7320	CT7420	CT8420
QNGX 070508N-M	6. 98	14.5	—	5.4	0.8	•	•	•	•	•	CSG4013-P CTS15W-P
QNGX 070508N-MW			1.1			•	•	•	•	•
QNKX 070508N-MS			—			•	•	•	•	•

INSERT

SHAPE

INTRODUCTION

INSERT PAGE

• Double-sided 14- flute milling insert

• Flat mount blade

B123

INSERT MODEL

EDGE

LONG

DIMENSION MM

GRADE

CT5320

CT5420

CT7320

CT7420

CT8320

CT8330

CT8420

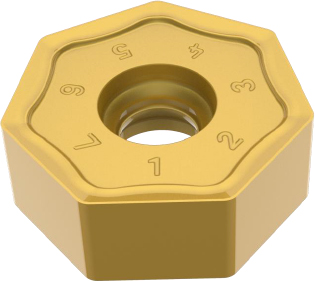

QNMX 070508-ML

14.5

6. 47

5.0

0.8

•
