SD14 SERIES：CFM90SD Face Milling Cutter

FACE MILL CUTTER,Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ160mm
Positive 4 edges0°inserts for fast cutting
AP max cutting depth5.5- 10.0mm ·The cutting edge of the blade is in the shape of a large arc.

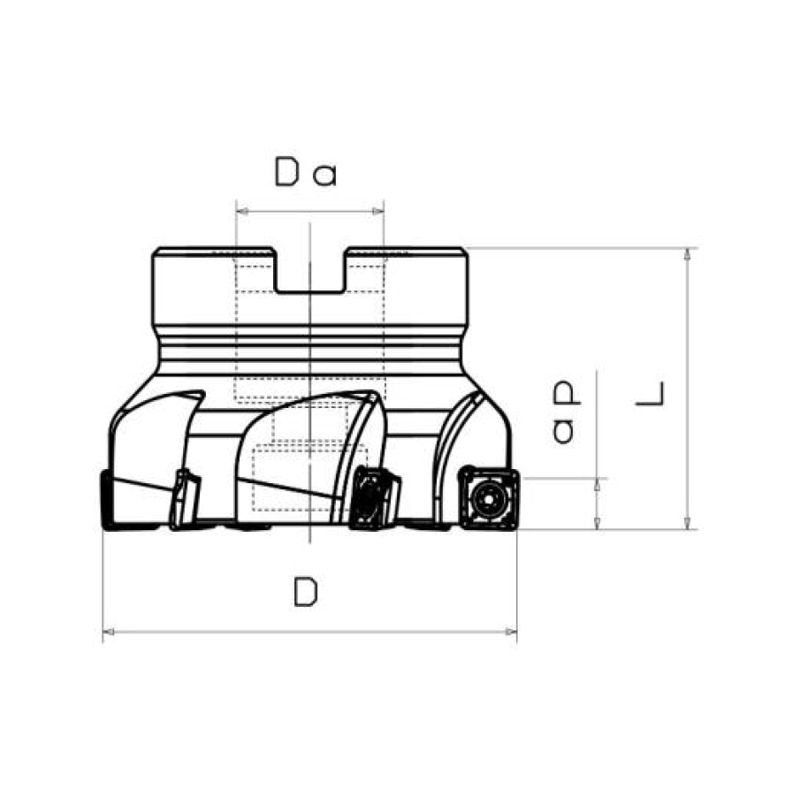

MODEL		DIMENSION				CONNECTOR	kg	SUITABLE INSERT
MODEL		D	L	ap	Da	CONNECTOR	kg	SUITABLE INSERT
CFM90SD-550A22R-14	5	50	40	10	22	A	0.7	SDKT 1404
CFM90SD-663A22R-14	6	63	40	10	22	A	0.7
CFM90SD-680A27R-14	6	80	50	10	27	A	1.2
CFM90SD-880A27R-14	8	80	50	10	27	A	1. 1
CFM90SD-8100B32R-14	8	100	50	10	32	B	1. 1
CFM90SD-10100B32R-14	10	100	50	10	32	B	1.9
CFM90SD-10125B40R-14	10	125	63	10	40	B	1.8
CFM90SD-12125B40R-14	12	125	63	10	40	B	1.7
CFM90SD-15160C40R-14	15	160	63	10	40	C	3.2

INSERTS MODEL	EDGE LONG	DIMENSION					GRADE
INSERTS MODEL	EDGE LONG	d	S	bs	La	R	CT5420	CT7420	CT8240	CT8420
SDKT 140408M-PM	14	13.8	3.9	2.0	10.3	0.8	•	•	•	•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM90SD-14	CSG3585-P	CTS10W-P
