WN SERIES：CFM90WN Face Milling Cutter

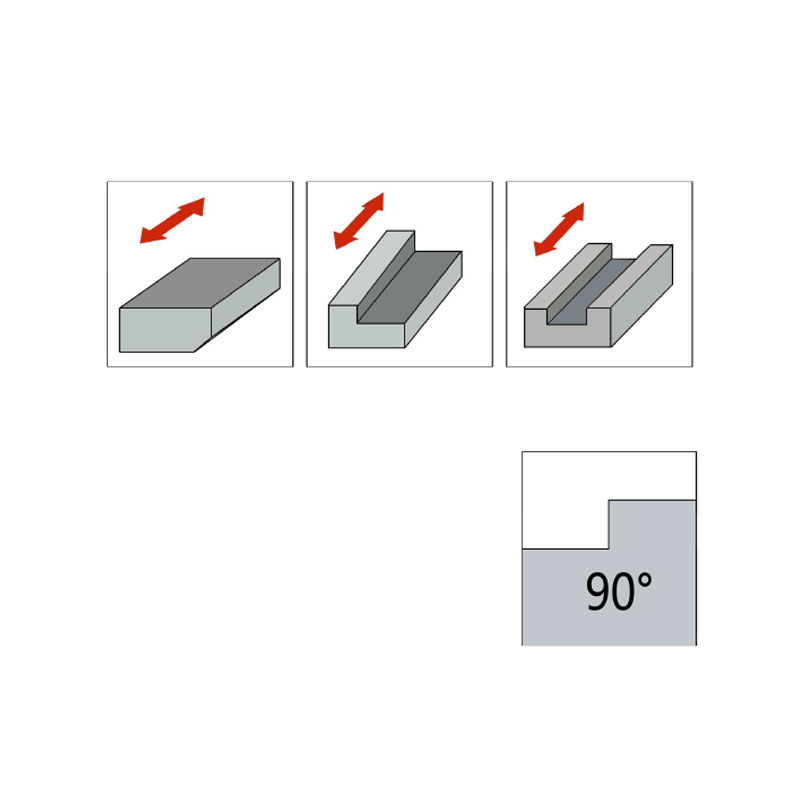

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ40～φ160mm
Inserts double side 6 edges.
Wiper inserts for better surface processing

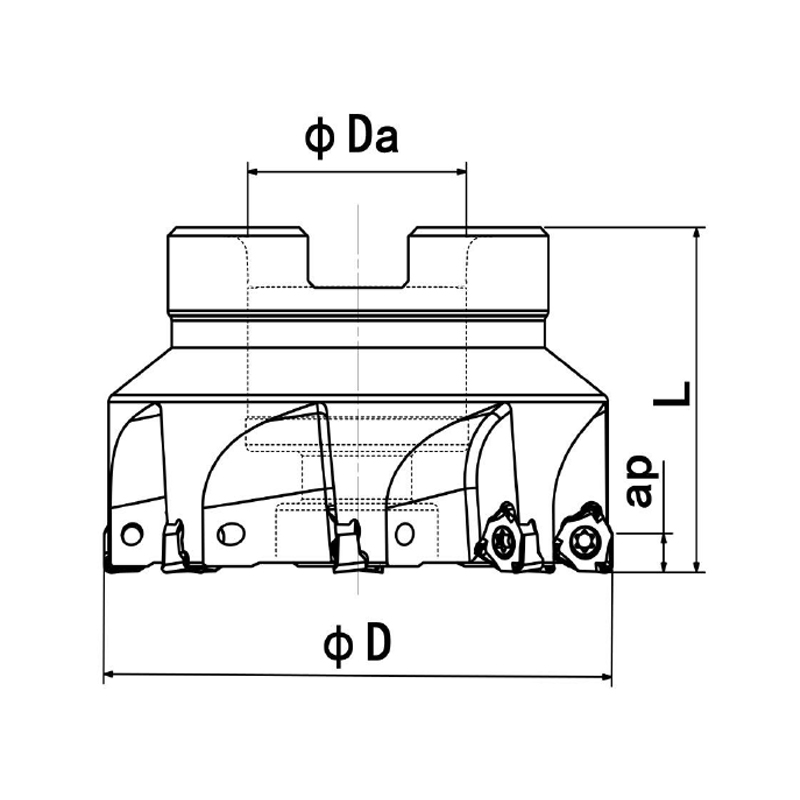

MODEL		DIMENSION)				CONNE	kg	SUITABLE INSERTS
MODEL		D	Da	L	ap	CTOR	kg	SUITABLE INSERTS
CFM90WN-640A16R-04	6	40	16	40	4.0	A	0.2	WNHX 0403
CFM90WN-740A16R-04	7	40	16	40	4.0	A	0.2
CFM90WN-850A22R-04	8	50	22	40	4.0	A	0.4
CFM90WN-950A22R-04	9	50	22	40	4.0	A	0.4
CFM90WN-963A22R-04	9	63	22	40	4.0	A	0.7
CFM90WN-1063A27R-04	10	63	22	40	4.0	A	0.7
CFM90WN-450A22R-08	4	50	22	40	7.5	A	0.3	WNHX 0806
CFM90WN-550A22R-08	5	50	22	40	7.5	A	0.3
CFM90WN-463A22R-08	4	63	22	40	7.5	A	0.4
CFM90WN-663A22R-08	6	63	22	40	7.5	A	0.4
CFM90WN-763A22R-08	7	63	22	40	7.5	A	0.4
CFM90WN-663A27R-08	6	63	27	40	7.5	A	0.4
CFM90WN-763A27R-08	7	63	27	40	7.5	A	0.4
CFM90WN-580A27R-08	5	80	27	50	7.5	A	1.0
CFM90WN-780A27R-08	7	80	27	50	7.5	A	1.0
CFM90WN-980A27R-08	9	80	27	50	7.5	A	1.0
CFM90WN-6100B32R-08	6	100	32	50	7.5	B	1.5
CFM90WN-8100B32R-08	8	100	32	50	7.5	B	1.5
CFM90WN-11100B32R-08	11	100	32	50	7.5	B	1.5
CFM90WN-7125B40R-08	7	125	40	63	7.5	B	2.8
CFM90WN-11125B40R-08	11	125	40	63	7.5	B	2.8
CFM90WN-14125B40R-08	14	125	40	63	7.5	B	2.8
CFM90WN-12160C40R-08	12	160	40	63	7.5	C	4.8
CFM90WN-16160C40R-08	16	160	40	63	7.5	C	4.8
