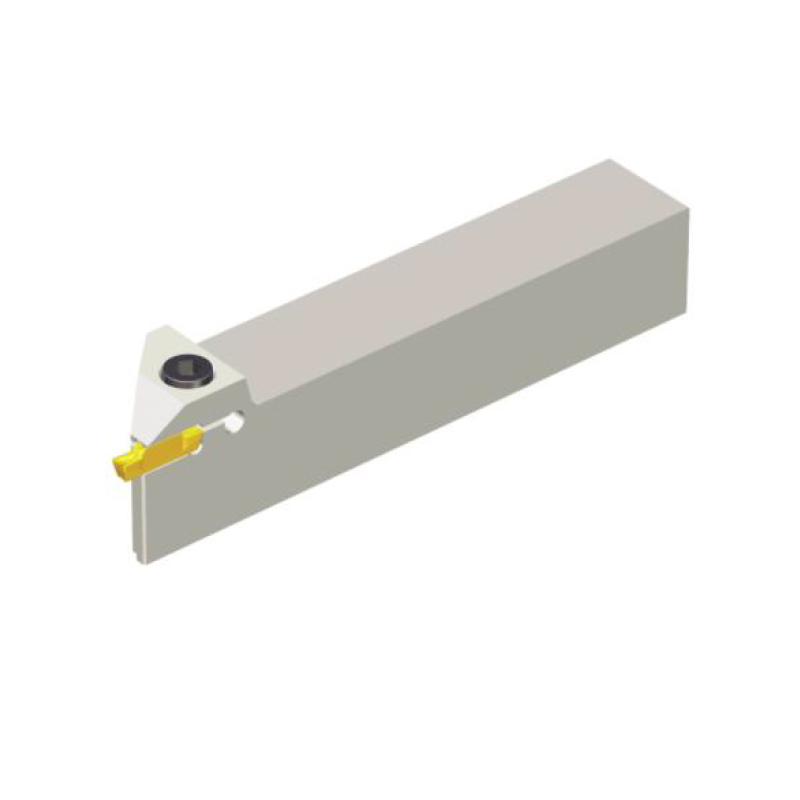

TGFR/L Grooving Tool

EXTERNAL FACE GROOVING & TURNING MILL

Contact now

FEATURE
INQUIRY

FEAURES

Outer face shallow groove grooving tool holder

APPLICATION

Cut width: 2～4mm
Maximum depth of cut: 8.5mm

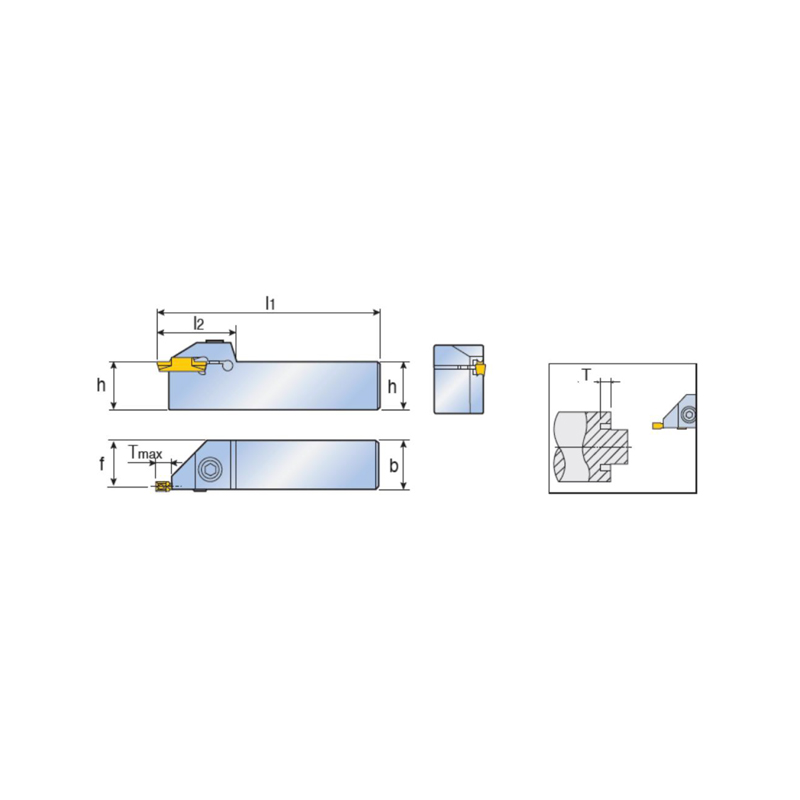

PRODUCT MODEL	HOLDER SIZE	DIMENSION						COMPATIBLE INSERT
PRODUCT MODEL	HOLDER SIZE	h	b	11	f	L2	Tmax	COMPATIBLE INSERT
TGFR/L 1616-4	2/3/4	16	16	110	14.6	33	4.8	TDGU TDGX TDGC TDEF
TGFR/L 2020-4	2/3/4	20	20	125	18.6	33	4.8
TGFR/L 2525-4	2/3/4	25	25	150	23.6	33	4.8
TGFR/L 2020-6	5/6	20	20	125	17.6	37	4.8
TGFR/L 2525-6	5/6	25	25	150	22.6	37	4.8

◎INSERTS to be ordere s
◎This SHANK has no internal coolant

ACCESSORY

PRODUCT MODEL	SCREW	WRENCH
PRODUCT MODEL
TGFR/L 1616	CLA0601610	CBL50
TGFR/L 2020	CLA0602010	CBL50
TGFR/L 2525	CLA0602510	CBL50

face machining	Note on insert selection
	First, confirm the minimum machining diameter of end face GROOVING on page E04.
