TGIFR/L Grooving Tool

End face inner hole shallow groove and end face TURNING MILL SHANK

Contact now

FEATURE
INQUIRY

FEAURES

Face Bore Shallow Groove and Face Turning Toolholders

APPLICATION
Cut width: 3～6mm
Maximum depth of cut: 5.5mm

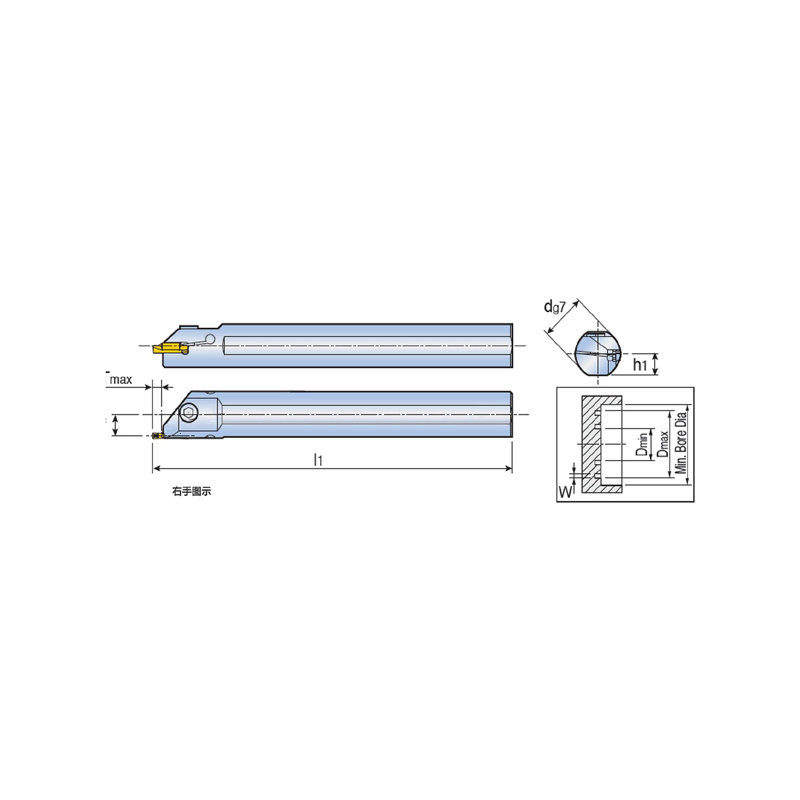

PRODUCT MODEL	HOLDER SIZE	DIMENSION					COMPATIBLE INSERT
PRODUCT MODEL	HOLDER SIZE	d	11	f	hi	Tmax	COMPATIBLE INSERT
TGIFR/L 25-4C-T5. 5	3,4	25	200	11.3	11.5	5.5	TDGU TDGX TDGC TDEF
TGIFR/L 32-4C-T5. 5	3,4	32	250	14.8	15	5.5
TGIFR/L 25-6C-T5. 5	5,6	25	200	10.3	11.5	5.5
TGIFR/L 32-6C-T5. 5	5,6	32	250	13.8	15	5.5

◎INSERTS to be ordere s
◎This SHANK has no internal coolant

w	Min bore diameter		Dmin		Dmax
w	d=25	d=32	TDGU	TDGU ROUND INSERT	Dmax
3	26.3	33.3	20	44	OO
4	26.8	33.8	18	42
5	26.3	33.3	20
6	26.8	33.8	18

ACCESSORY

PRODUCT MODEL	SCREW	WRENCH
PRODUCT MODEL
TGIFR/L 25	CLA0602010	CBL50
TGIFR/L 32	CLA0602510	CBL50

face machining	Note on insert selection
	First, confirm the minimum machining diameter of end face GROOVING on page E04.
