High FEED SERIES：TFMBL Milling Cutter

High feed milling tool shank

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ30 ～φ42mm
Inserts are double-sided slotting inserts
Effectively decompose the radial cutting force to achieve largefeed cutting ·cavity milling face milling

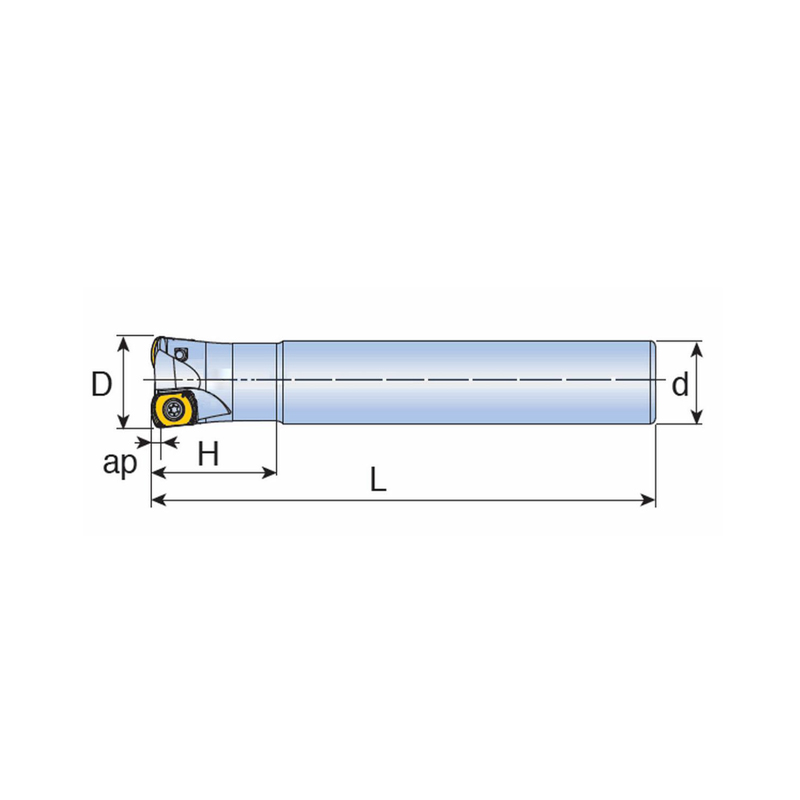

MODEL		DIMENSION					INSERT
MODEL		D	d	L	H	ap	INSERT
TEBL 230-32-11-L150	2	30	32	150	70	2.0	BLMF 1105
TEBL 232-32-11-L150	2	32	32	150	70	2.0
TEBL 232-32-11-L200	2	32	32	200	70	2.0
TEBL 332-32-11-L200	3	32	32	200	70	2.0
TEBL 233-32-11-L200	2	33	32	200	40	2.0
TEBL 233-32-11-L250	2	33	32	250	50	2.0
TEBL 333-32-11-L250	3	33	32	250	50	2.0
TEBL 335-32-11-L200	3	35	32	200	40	2.0
TEBL 340-32-11-L150	3	40	32	150	40	2.0
TEBL 340-32-11-L200	3	40	32	200	40	2.0

ACCESSORY

MODEL

SCREW

WRENCH

TEBL-11

CSD5012

CTS20W

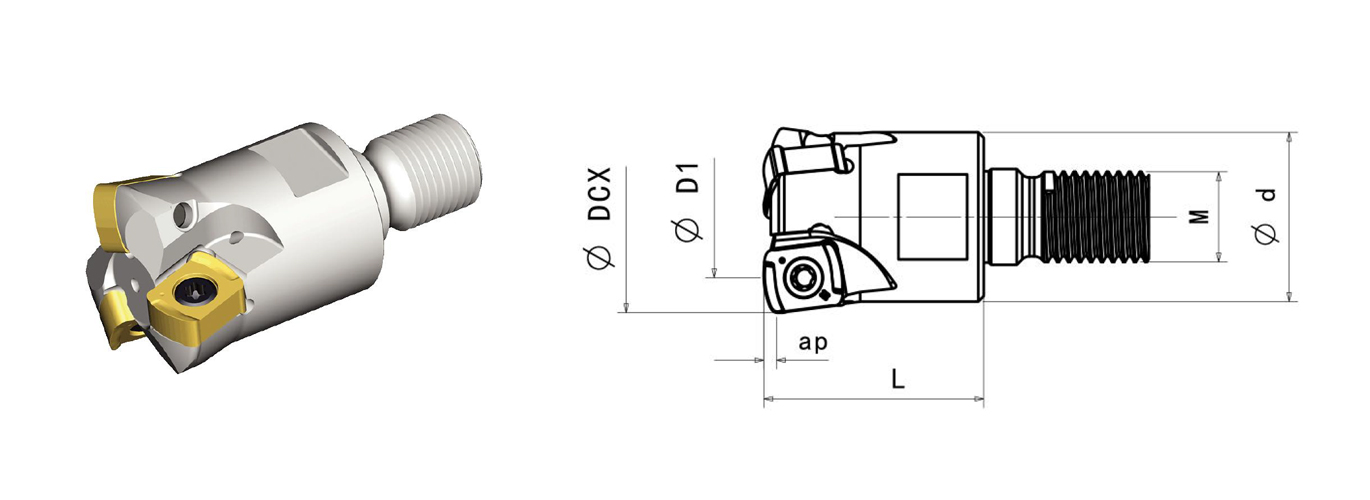

MODEL		DIMENSION						INSERT
MODEL		DCX	D1	L	d	ap	M	INSERT
TEBL 230-M16-11	2	30	14.7	43	29	2.0	16	BLMF 1105
TEBL 232-M16-11	2	32	16.6	43	29	2.0	16
TEBL 233-M16-11	2	33	17.6	43	29	2.0	16
TEBL 335-M16-11	3	35	19.5	43	29	2.0	16
TEBL 340-M16-11	3	40	24.4	43	29	2.0	16
TEBL 342-M16-11	3	42	26.4	43	29	2.0	16

INSERT	SHAPE						INTRODUCTION
							FAST FEED INSERT



MODEL	EDGE LONG	DIMENSION						GRADE
MODEL	EDGE LONG	1	dl	t	ap	FEED nm/TEETH	CUT DEP mm	CT5320	CT5420	CT9080
BLMP 0603R-M	06	9.0	6. 39	3. 73	1.0	0. 3-2. 5	0. 1-1.0	•	•	•
BLMP 0603R-MM	06	9.0	6. 39	3. 73	1.0	0. 3-2. 5	0. l-l.o	•	•	•
BLMP 0904R-M	09	11.9	9. 18	4. 80	1.5	0. 3-3. 5	0. 1-1.5	•	•	•
BLMP 0904R-MM	09	11.9	9. 18	4. 80	1.5	0. 3-3. 5	0. 1-1.5	•	•	•
BLMP 1105R-ML	11	14.6	11.2	6. 54	2.0	0. 3-4.0	0. 3-2. 0	•	•	•
BLMP 1105R-M	11	14.6	11.2	6. 54	2.0	0. 3-4.0	0. 3-2. 0	•	•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional High FEED SERIES：TFMBL Milling Cutter suppliers and Wholesale High FEED SERIES：TFMBL Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
