High FEED SERIES：TFMBL Milling Cutter

High FEED MILL CUTTER

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ32～φ125mm
Inserts are double-sided slotting inserts
Effectively decompose the radial cutting force to realize high feed cutting

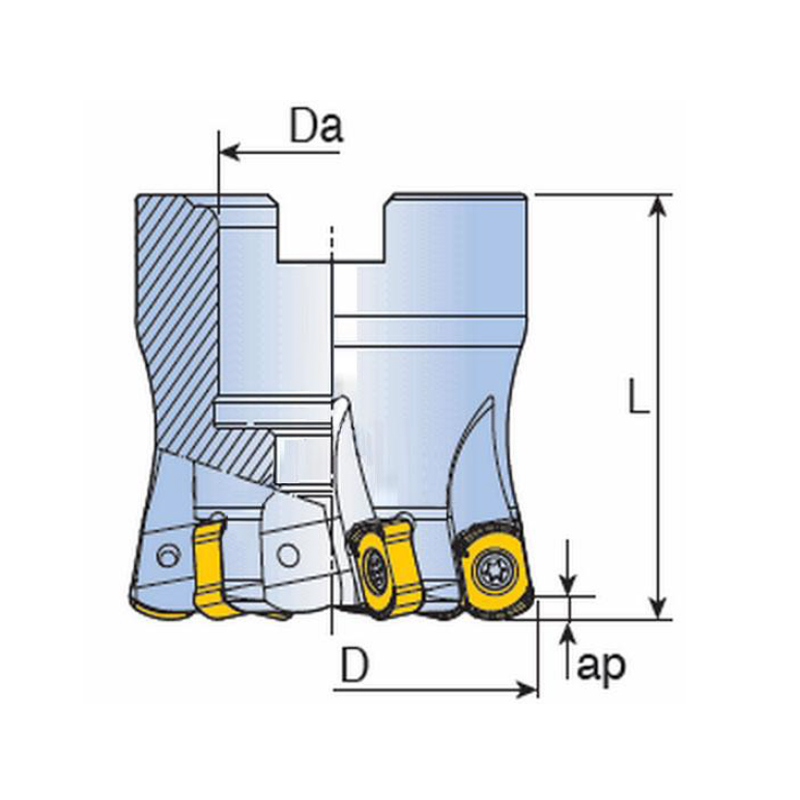

MODEL			DIMENSION				CONNE CTOR		INSERT
MODEL			D	da	L	ap	CONNE CTOR		INSERT
TFMBL 432-16R-06	4		32	16	40	1.0	A	0. 1	BLMF 0603
TFMBL 532-16R-06	5		32	16	40	1.0	A	0. 1
TFMBL 640-16R-06	6		40	16	40	1.0	A	0.2
TFMBL 640-22R-06	6		40	22	40	1.0	A	0.2
TFMBL 650-22R-06	6		50	22	50	1.0	A	0.4
TFMBL 750-22R-06	7		50	22	50	1.0	A	0.4
TFMBL 850-22R-06	8		50	22	50	1.0	A	0.4
TFMBL 752-22R-06	7		52	22	40	1.0	A	0.4
TFMBL 852-22R-06	8		52	22	40	1.0	A	0.4
TFMBL 763-22R-06	7		63	22	50	1.0	A	0.6
TFMBL 863-22R-06	8		63	22	50	1.0	A	0.6
TFMBL 963-22R-06	9		63	22	50	1.0	A	0.6
TFMBL 966-27R-06	9		66	27	50	1.0	A	0.7
TFMBL 440-16R-09	4		40	16	40	1.5	A	0.2	BLMF 0904
TFMBL 540-16R-09	5		40	16	40	1.5	A	0.2
TFMBL 550-22R-09	5		50	22	50	1.5	A	0.4
TFMBL 650-22R-09	6		50	22	50	1.5	A	0.4
TFMBL 750-22R-09	7		50	22	50	1.5	A	0.4
TFMBL 652-22R-09	6		52	22	40	1.5	A	0.4
TFMBL 752-22R-09	7		52	22	40	1.5	A	0.4
TFMBL 663-22R-09	6		63	22	50	1.5	A	0.4
TFMBL 763-22R-09	7		63	22	50	1.5	A	0.4
TFMBL 863-22R-09	8	63		22	50	1.5	A	0.6	BLMF 0904
TFMBL 766-27R-09	7	66		27	50	1.5	A	0.7
TFMBL 866-27R-09	8	66		27	50	1.5	A	0.8
TFMBL 780-27R-09	7	80		27	50	1.5	A	1.2
TFMBL 880-27R-09	8	80		27	50	1.5	A	1.2
TFMBL 980-27R-09	9	80		27	50	1.5	A	1.2
TFMBL 1080-27R-09	10	80		27	50	1.5	A	1.2
TFMBL 8100-32R-09	8	100		32	60	1.5	A	2.3
TFMBL 9100-32R-09	9	100		32	60	1.5	A	2.3
TFMBL 10100-32R-09	10	100		32	60	1.5	A	2.3
TFMBL 11100-32R-09	11	100		32	60	1.5	A	2.3
TFMBL 12100-32R-09	12	100		32	60	1.5	A	2.3
TFMBL 12125-40R-09	12	125		40	60	1.5	A	2.7
TFMBL 14125-40R-09	14	125		40	60	1.5	A	2.7

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
TEBL-06	CSC2560	CTS08W
TEBL-09	CSC3581	CTS15W

MODEL		DIMENSION				CONNE CTOR	kg	INSERT
MODEL		D	da	L	ap	CONNE CTOR	kg	INSERT
TFMBL 440-16R-11	4	40	16	40	2.0	A	0.2	BLMP 1105
TFMBL 450-22R-11	4	50	22	40	2.0	A	0.3
TFMBL 550-22R-11	5	50	22	40	2.0	A	0.3
TFMBL 552-22R-11	5	52	22	40	2.0	A	0.3
TFMBL 563-22R-11	5	63	22	50	2.0	A	0.7
TFMBL 663-22R-11	6	63	22	50	2.0	A	0.7
TFMBL 666-22R-11	6	66	22	50	2.0	A	0. 83
TFMBL 680-27R-11	6	80	27	60	2.0	A	1.4
TFMBL 780-27R-11	7	80	27	60	2.0	A	1.4
TFMBL 6100-32R-11	6	100	32	60	2.0	B	2.2
TFMBL 7100-32R-11	7	100	32	60	2.0	B	2.2

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
TEBL-11	CSD5012	CTS20W

INSERT	SHAPE						INTRODUCTION
							FAST FEED INSERT



MODEL	EDGE LONG	DIMENSION						GRADE
MODEL	EDGE LONG	1	dl	t	ap	FEED no/TEETH	CUT DEP.	CT5320	CT5420	CT9080
BLMP 0603R-M	06	9.0	6. 39	3. 73	1.0	0. 3-2. 5	0. 1-1.0	•	•	•
BLMP 0603R-MM	06	9.0	6. 39	3. 73	1.0	0. 3-2. 5	0. 1-1.0	•	•	•
BLMP 0904R-M	09	11.9	9. 18	4. 80	1.5	0. 3-3. 5	0. 1-1.5	•	•	•
BLMP 0904R-MM	09	11.9	9. 18	4. 80	1.5	0. 3-3. 5	0. 1-1.5	•	•	•
BLMP 1105R-ML	11	14.6	11.2	6. 54	2.0	0. 3-4.0	0. 3-2. 0	•	•	•
BLMP 1105R-M	11	14.6	11.2	6. 54	2.0	0. 3-4.0	0. 3-2. 0	•	•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional High FEED SERIES：TFMBL Milling Cutter suppliers and Wholesale High FEED SERIES：TFMBL Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
