Wholesale XOP 2215-25T2-07 2D indexable insert u drill

Home / Product / Drill Cutter / Indexable Insert U Drill / XOP 2215-25T2-07 2D indexable insert u drill
We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.

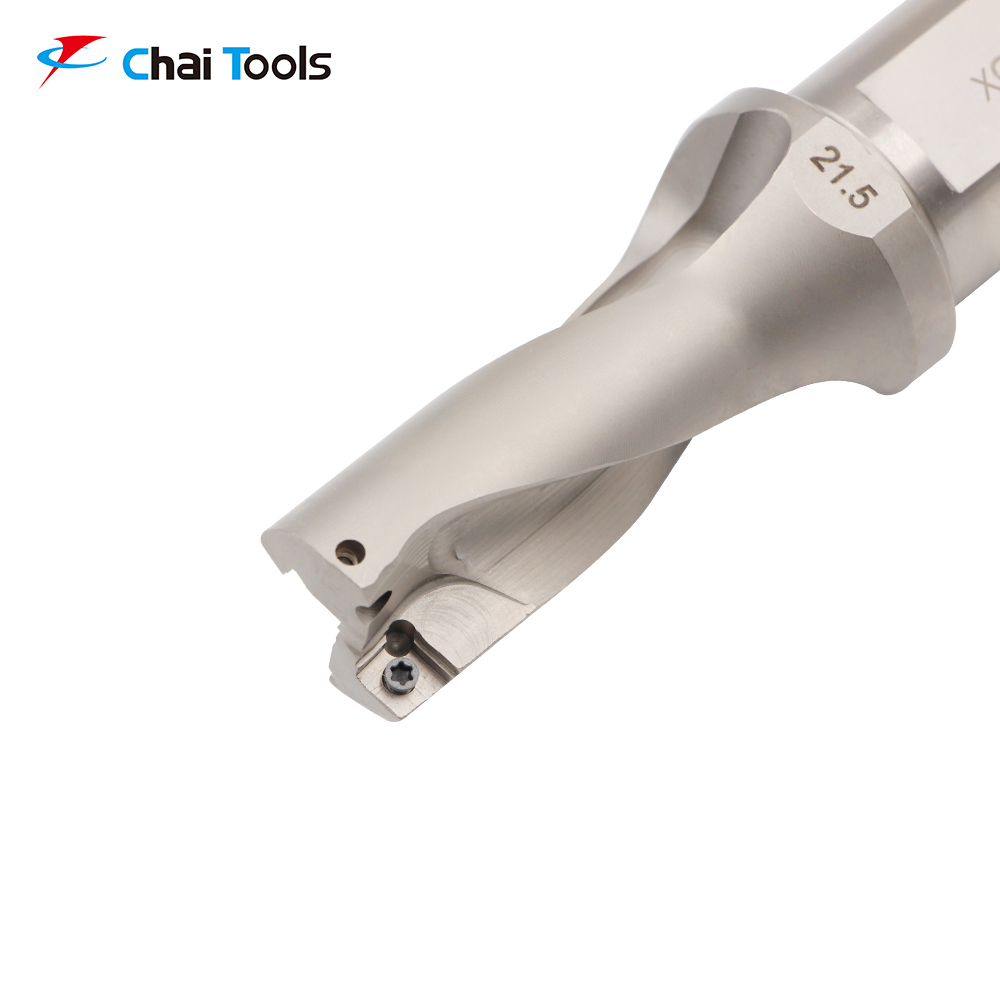

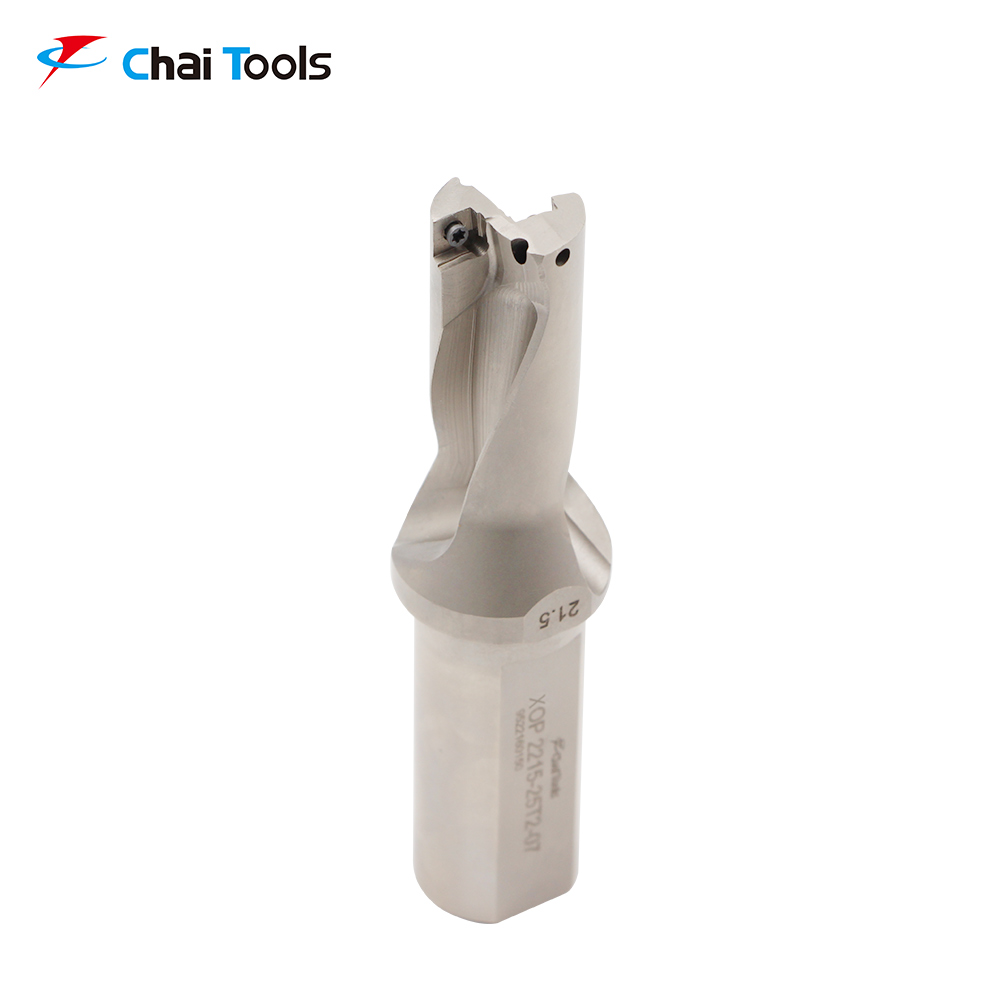

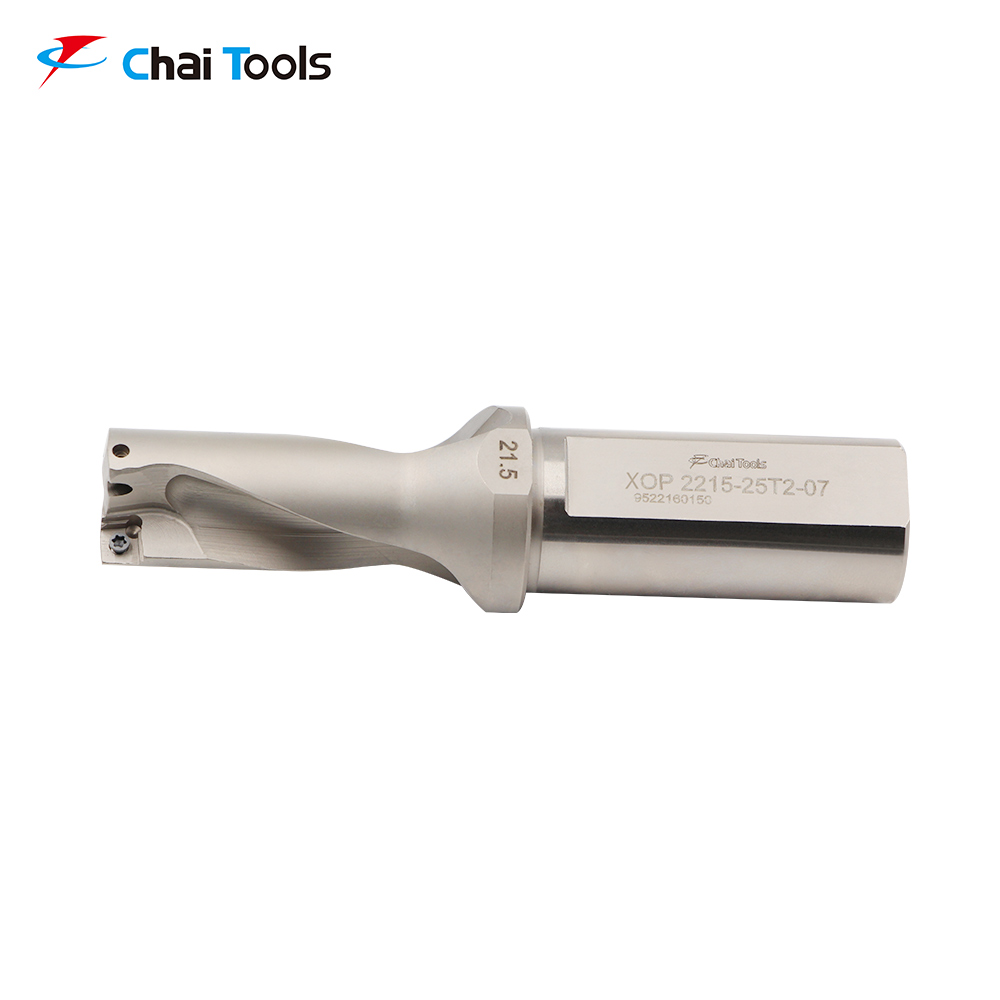

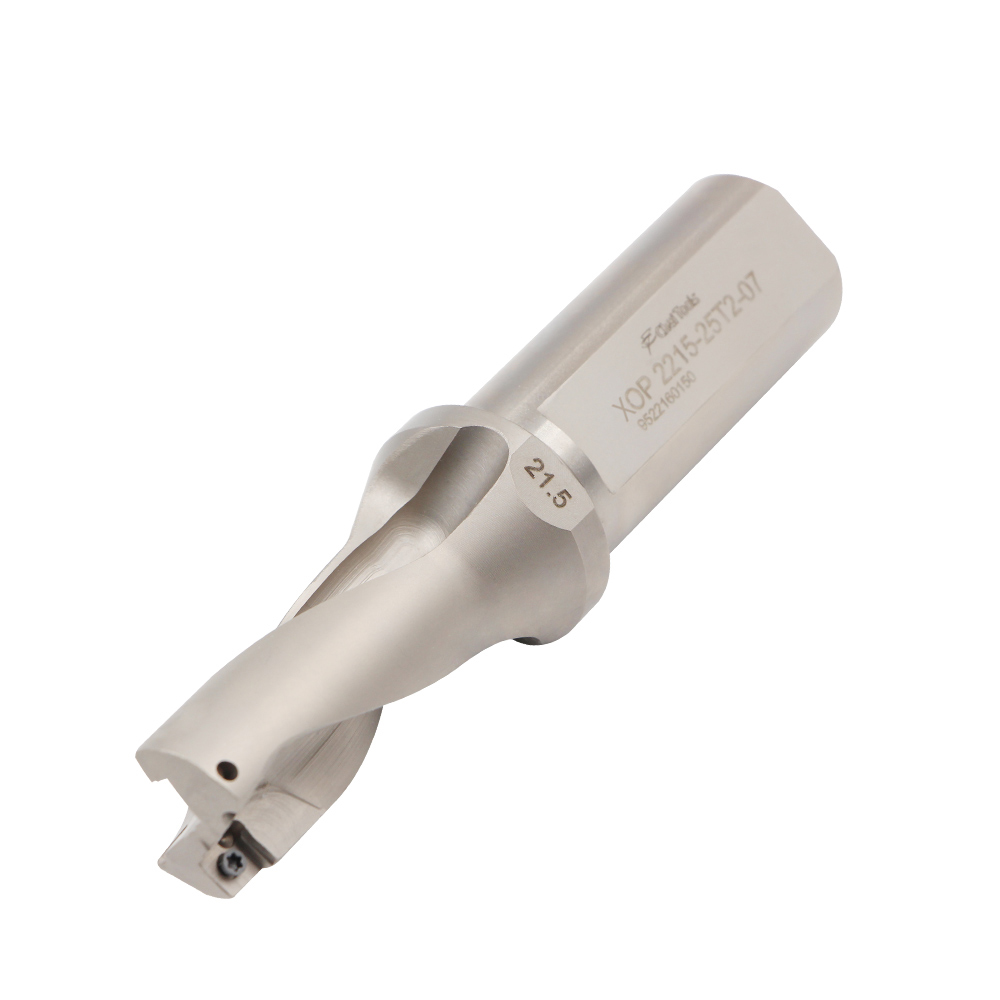

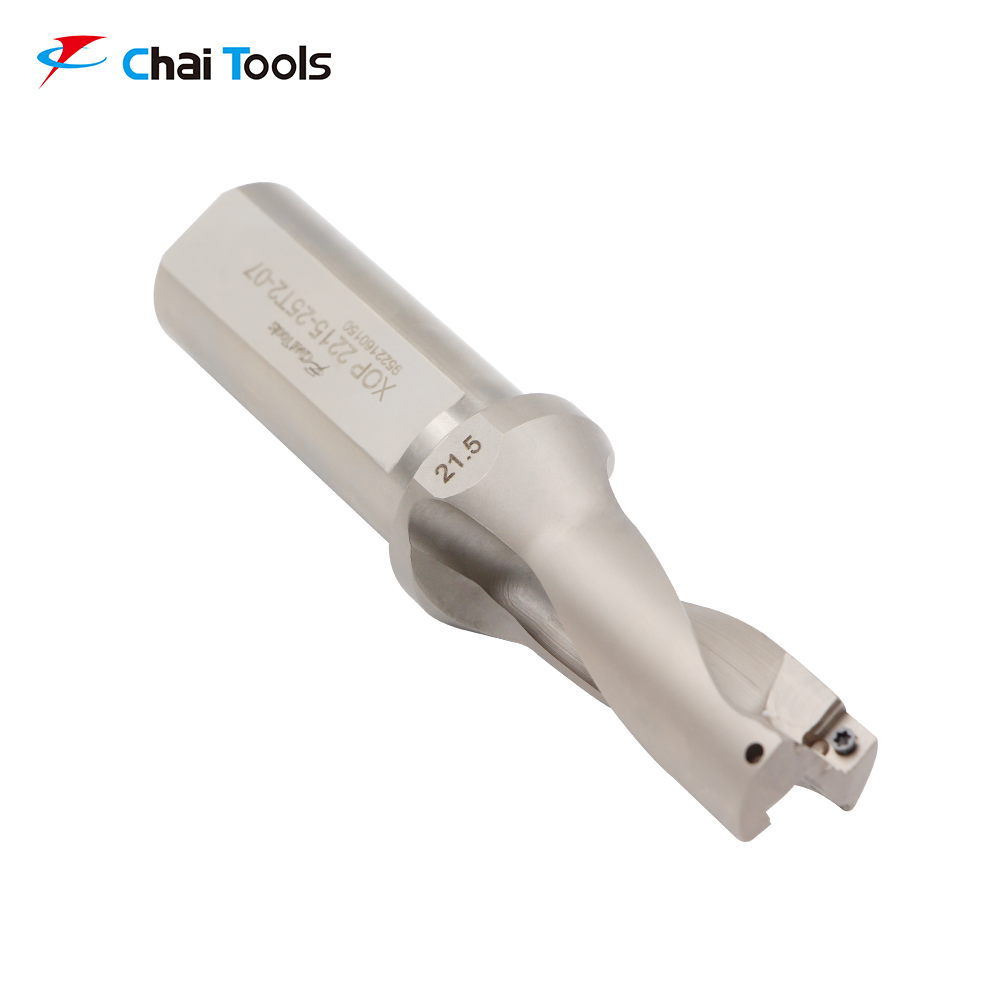

XOP 2215-25T2-07 2D indexable insert u drill

We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.
Contact now
  • FEATURE
  • INQUIRY

1. One kind of indexable drill bit, the range of drilling diameter is Φ14~Φ50mm. The Drilling depth is 2XDiameter.

2. Matched with SOMT insert  and also our own XOMX insert, almost has the same service life but

    much lower price, with good cost performance.

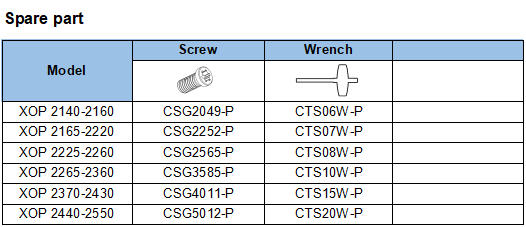

3. Spare parts are imported from Korea and Germany in good quality, further prolong the service life.

4. Provided complete specification and competitive price.

​

                        Model

Dimension（mm）

Insert

D

d

D3

L

L1

L2

Ls

XOP 2140-20T2-05

14.0

20

25

96

28

46

50



 XOMX 05

XOP 2145-20T2-05

14.5

20

25

99

30

49

50

XOP 2150-20T2-05

15.0

20

25

99

30

49

50

XOP 2155-20T2-05

15.5

20

25

102

32

52

50

XOP 2160-20T2-05

16.0

20

25

102

32

52

50

XOP 2165-25T2-06

16.5

25

32

110

34

54

56

XOMX 06

XOP 2170-25T2-06

17.0

25

32

110

34

54

56

XOP 2175-25T2-06

17.5

25

32

113

36

57

56

XOP 2180-25T2-06

18.0

25

32

113

36

57

56

XOP 2185-25T2-06

18.5

25

32

115

38

59

56

XOP 2190-25T2-06

19.0

25

32

115

38

59

56

XOP 2195-25T2-07

19.5

25

32

119

40

63

56

XOMX 07

XOP 2200-25T2-07

20.0

25

32

119

40

63

56

XOP 2205-25T2-07

20.5

25

32

121

42

65

56

XOP 2210-25T2-07

21.0

25

32

121

42

65

56

XOP 2215-25T2-07

21.5

25

32

123

44

67

56

XOP 2220-25T2-07

22.0

25

32

123

44

67

56

XOP 2225-25T2-08

22.5

25

32

124

46

68

56

XOMX 08

XOP 2230-25T2-08

23.0

25

32

124

46

68

56

XOP 2230-32T2-08

23.0

32

40

128

46

68

60

XOP 2235-25T2-08

23.5

25

32

126

48

70

56

XOP 2235-32T2-08

23.5

32

40

130

48

70

60

XOP 2240-25T2-08

24.0

25

32

126

48

70

56

XOP 2240-32T2-08

24.0

32

40

130

48

70

60

XOP 2245-25T2-08

24.5

25

32

128

50

72

56

XOP 2245-32T2-08

24.5

32

40

132

50

72

60

XOP 2250-25T2-08

25.0

25

32

128

50

72

56

XOP 2250-32T2-08

25.0

32

40

132

50

72

60

XOP 2255-25T2-08

25.5

25

32

129

52

73

56

XOP 2255-32T2-08

25.5

32

40

133

52

73

60

XOP 2260-25T2-08

26.0

25

32

129

52

73

56

XOP 2260-32T2-08

26.0

32

40

133

52

73

60

XOP 2265-32T2-09

26.5

32

40

137

54

77

60

XOMX 09

XOP 2270-25T2-09

27.0

25

40

133

54

77

56

XOP 2270-32T2-09

27.0

32

40

137

54

77

60

XOP 2275-32T2-09

27.5

32

40

139

56

79

60

XOP 2280-25T2-09

28.0

25

40

135

56

79

56

XOP 2280-32T2-09

28.0

32

40

139

56

79

60

XOP 2285-32T2-09

28.5

32

40

141

58

81

60

XOP 2290-25T2-09

29.0

25

40

137

58

81

56

XOP 2290-32T2-09

29.0

32

40

141

58

81

60

XOP 2295-32T2-09

29.5

32

40

143

60

83

60

XOP 2300-32T2-09

30.0

32

40

143

60

83

60

XOP 2305-32T2-09

30.5

32

40

145

62

85

60

XOP 2310-32T2-09

31.0

32

40

145

62

85

60

XOP 2320-32T2-11

32.0

32

40

147

64

87

60

XOMX 11

XOP 2320-40T2-11

32.0

40

50

157

64

87

70

XOP 2330-32T2-11

33.0

32

40

149

66

89

60

XOP 2330-40T2-11

33.0

40

50

159

66

89

70

XOP 2340-32T2-11

34.0

32

40

151

68

91

60

XOP 2340-40T2-11

34.0

40

50

161

68

91

70

XOP 2350-32T2-11

35.0

32

40

153

70

93

60

XOP 2350-40T2-11

35.0

40

50

163

70

93

70

XOP 2360-32T2-11

36.0

32

40

155

72

95

60

XOP 2360-40T2-11

36.0

40

50

165

72

95

70

XOP 2370-32T2-13

37.0

32

50

162

74

102

60

XOMX 13

XOP 2370-40T2-13

37.0

40

50

172

74

102

70

XOP 2380-32T2-13

38.0

32

50

164

76

104

60

XOP 2380-40T2-13

38.0

40

50

174

76

104

70

XOP 2390-32T2-13

39.0

32

50

166

78

106

60

XOP 2390-40T2-13

39.0

40

50

176

78

106

70

XOP 2400-32T2-13

40.0

32

50

168

80

108

60

XOP 2400-40T2-13

40.0

40

50

178

80

108

70

XOP 2410-40T2-13

41.0

40

50

180

82

110

70

XOP 2420-40T2-13

42.0

40

50

182

84

112

70

XOP 2430-40T2-13

43.0

40

50

184

86

114

70

XOP 2440-40T2-15

44.0

40

60

193

88

123

70

XOMX 15

XOP 2450-40T2-15

45.0

40

60

195

90

125

70

XOP 2460-40T2-15

46.0

40

60

197

92

127

70

XOP 2470-40T2-15

47.0

40

60

199

94

129

70

XOP 2480-40T2-15

48.0

40

60

201

96

131

70

XOP 2490-40T2-15

49.0

40

60

203

98

133

70

XOP 2500-40T2-15

50.0

40

60

205

100

135

70

◎Normal type has the inner-cooling holes

◎Insert needs to be purchased separately

◎Customized services are available.
