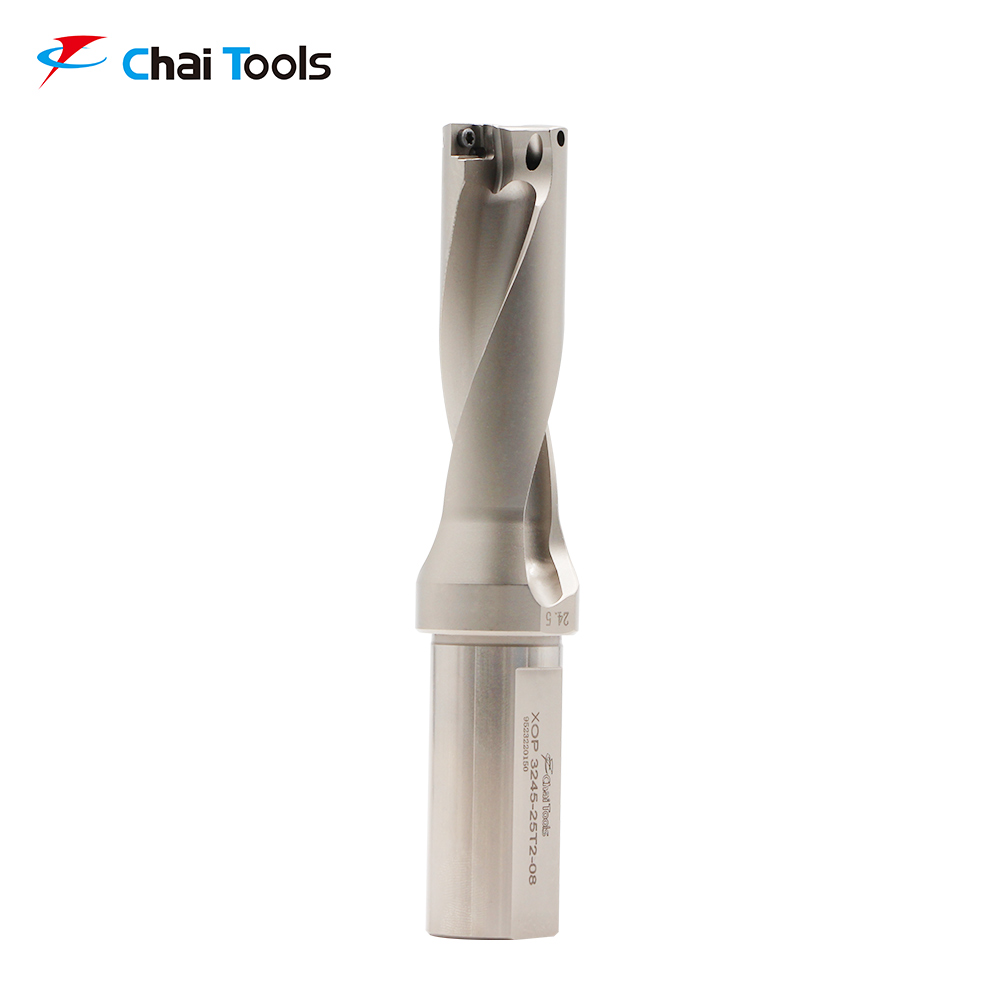

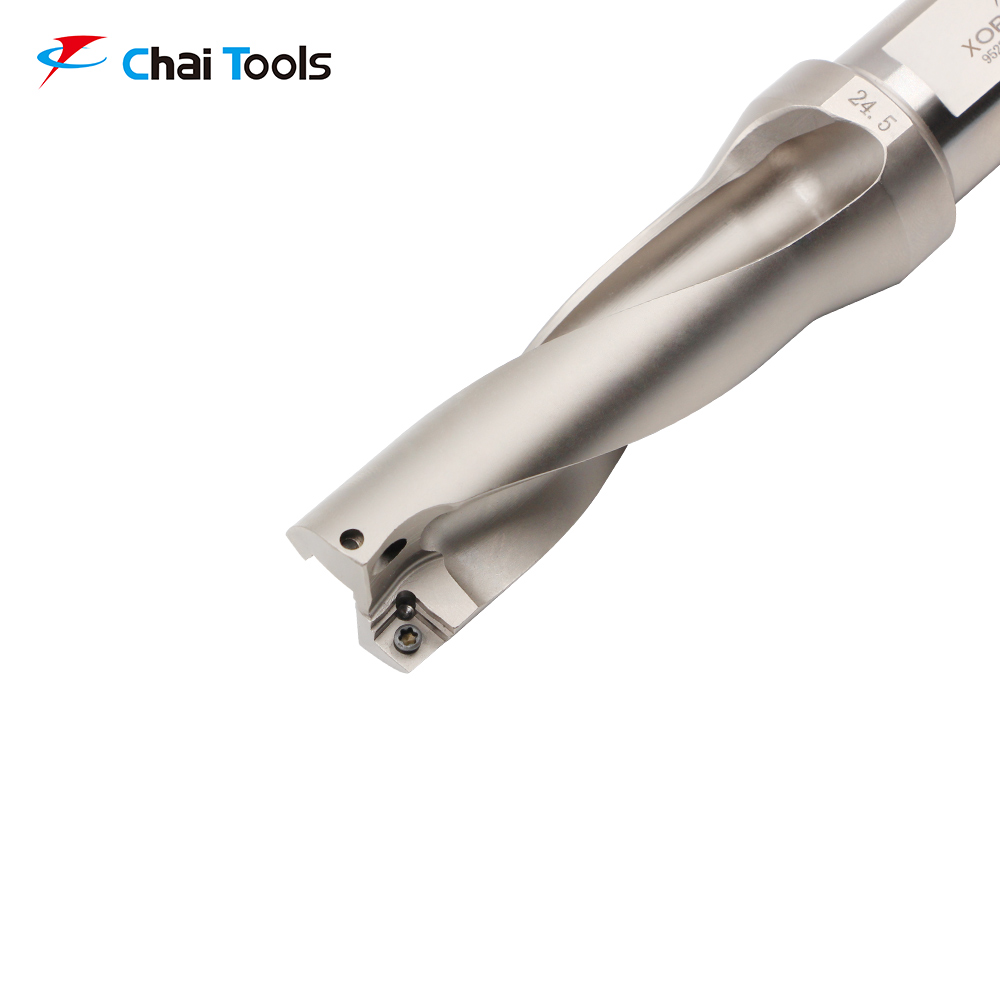

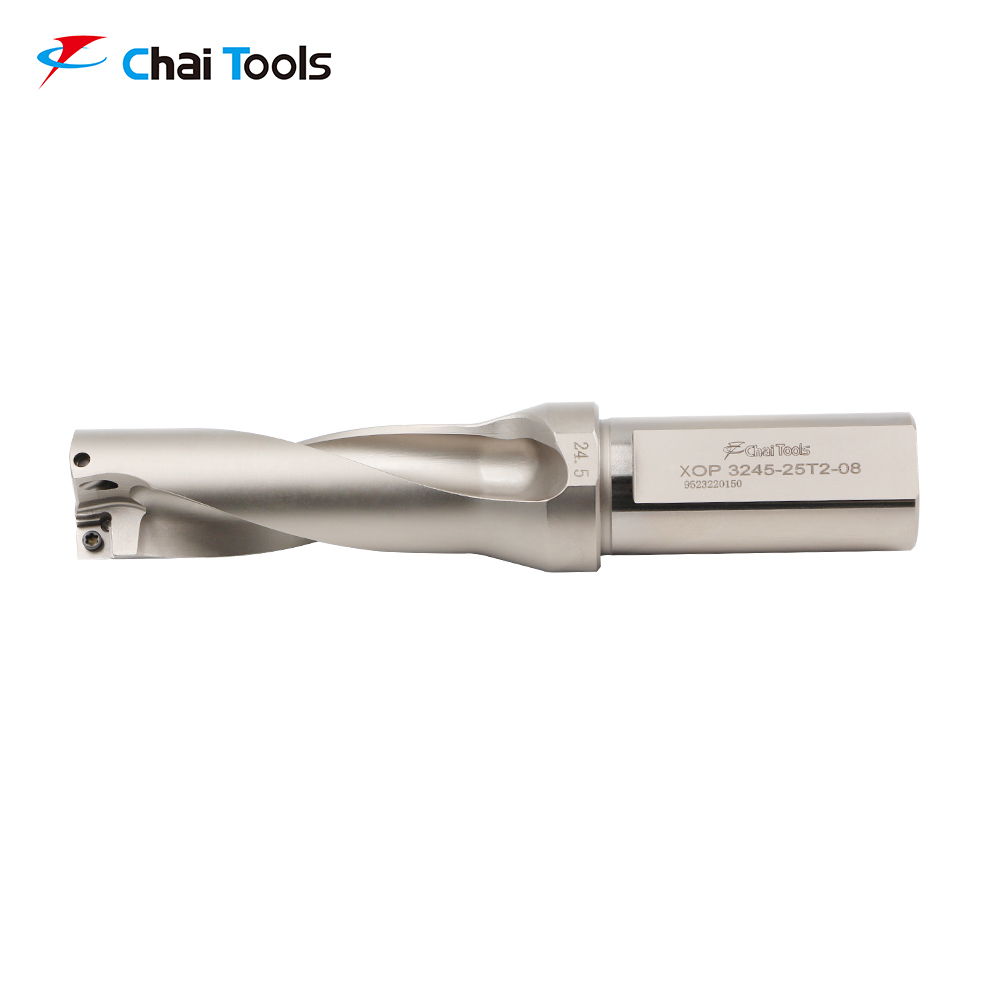

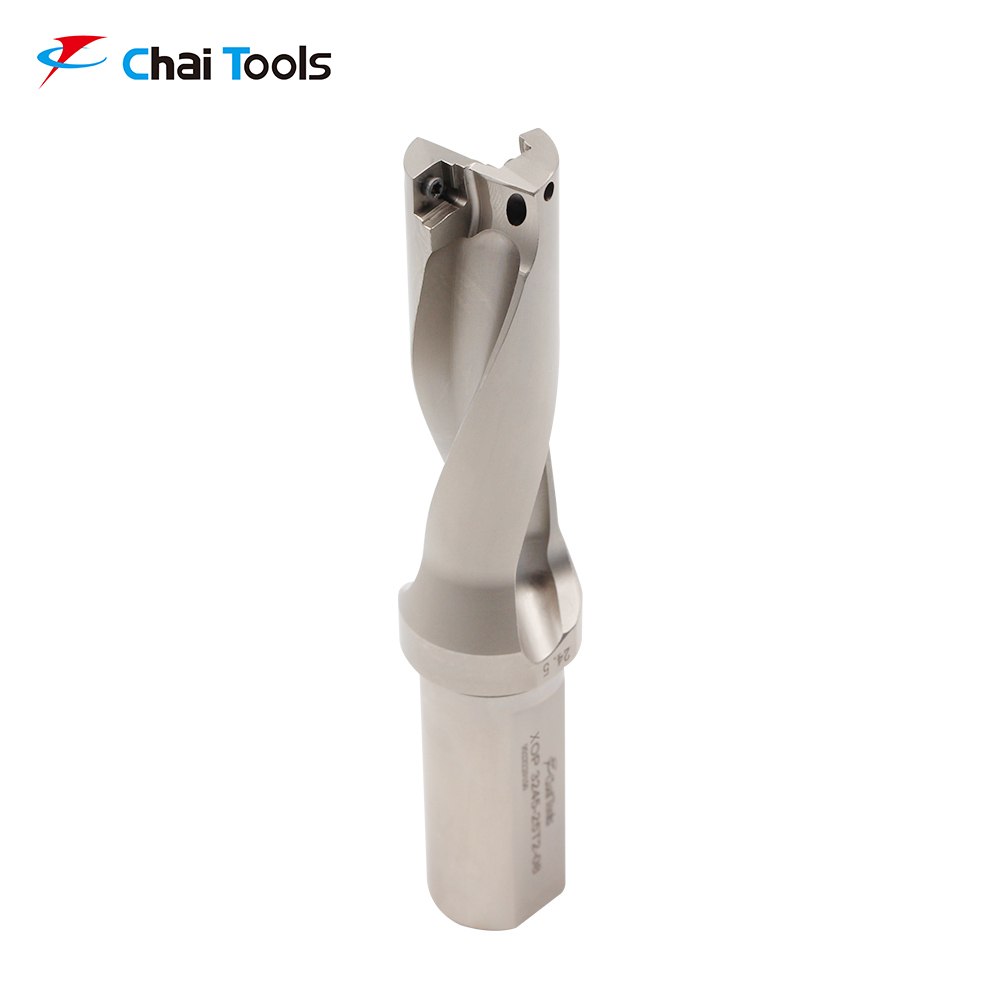

XOP 3245-25T2-08 3D indexable insert u drill

We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.
Contact now
  • FEATURE
  • INQUIRY

1. One kind of indexable drill bit, the range of drilling diameter is Φ14~Φ50mm. The Drilling depth is 2XDiameter.

2. Matched with SOMT insert and also our own XOMX insert, almost has the same service life but

    much lower price, with good cost performance.

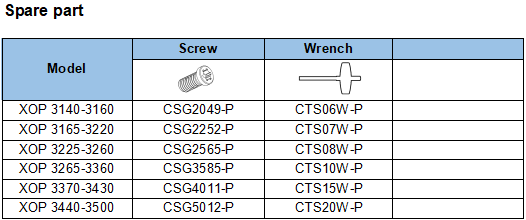

3. Spare parts are imported from Switzerland and Germany in good quality, further prolong the service life.

4. Provided complete specification and competitive price.

Model

Dimension（mm）

Insert

D

d

D3

L

L1

L2

Ls

XOP 3140-20T2-05

14.0

20

25

110

42

60

50

XOMX 05

XOP 3145-20T2-05

14.5

20

25

114

45

64

50

XOP 3150-20T2-05

15.0

20

25

114

45

64

50

XOP 3155-20T2-05

15.5

20

25

118

48

68

50

XOP 3160-20T2-05

16.0

20

25

118

48

68

50

XOP 3165-25T2-06

16.5

25

32

127

51

71

56

XOMX 06

XOP 3167-25T2-06

16.7

25

32

127

50.1

71

56

XOP 3170-25T2-06

17.0

25

32

131

51

71

56

XOP 3175-25T2-06

17.5

25

32

131

54

75

56

XOP 3180-25T2-06

18.0

25

32

134

54

75

56

XOP 3185-25T2-06

18.5

25

32

134

57

78

56

XOP 3190-25T2-06

19.0

25

32

139

57

78

56

XOP 3195-25T2-07

19.5

25

32

139

60

83

56

XOMX 07

XOP 3200-25T2-07

20.0

25

32

142

60

83

56

XOP 3205-25T2-07

20.5

25

32

142

63

86

56

XOP 3210-25T2-07

21.0

25

32

145

63

86

56

XOP 3215-25T2-07

21.5

25

32

145

66

89

56

XOP 3220-25T2-07

22.0

25

32

145

66

89

56

XOP 3222-25T2-07

22.2

25

32

147

66.6

89

56

XOP 3225-25T2-08

22.5

25

32

147

69

91

56

XOMX 08

XOP 3230-25T2-08

23.0

25

32

151

69

91

56

XOP 3230-32T2-08

23.0

32

40

150

69

91

60

XOP 3235-25T2-08

23.5

25

32

154

72

94

56

XOP 3235-32T2-08

23.5

32

40

154

72

94

60

XOP 3240-25T2-08

24.0

25

32

150

72

94

56

XOP 3240-32T2-08

24.0

32

40

154

72

94

60

XOP 3245-25T2-08

24.5

25

32

153

75

97

56

XOP 3245-32T2-08

24.5

32

40

157

75

97

60

XOP 3250-25T2-08

25.0

25

32

153

75

97

56

XOP 3250-32T2-08

25.0

32

40

157

75

97

60

XOP 3254-25T2-08

25.4

25

32

153

76.2

97

56

XOP 3255-25T2-08

25.5

25

32

155

78

99

56

XOP 3255-32T2-08

25.5

32

40

159

78

99

60

XOP 3260-25T2-08

26.0

25

32

155

78

99

56

XOP 3260-32T2-08

26.0

32

32

159

78

99

60

XOP 3265-25T2-09

26.5

25

40

160

81

104

56

XOMX 09

XOP 3265-32T2-09

26.5

32

40

164

81

104

60

XOP 3270-25T2-09

27.0

25

40

160

81

104

56

XOP 3270-32T2-09

27.0

32

40

164

81

104

60

XOP 3275-25T2-09

27.5

25

40

163

84

107

56

XOP 3275-32T2-09

27.5

32

40

167

84

107

60

XOP 3280-25T2-09

28.0

25

40

163

84

107

56

XOP 3280-32T2-09

28.0

32

40

167

84

107

60

XOP 3285-25T2-09

28.5

25

40

166

87

110

56

XOP 3285-32T2-09

28.5

32

40

170

87

110

60

XOP 3290-25T2-09

29.0

25

40

166

87

110

56

XOP 3290-32T2-09

29.0

32

40

170

87

110

60

XOP 3295-32T2-09

29.5

32

40

173

90

113

60

XOP 3300-32T2-09

30.0

32

40

173

90

113

60

XOP 3305-32T2-09

30.5

32

40

176

93

116

60

XOP 3310-32T2-09

31.0

32

40

176

93

116

60

XOP 3320-32T2-11

32.0

32

40

179

96

119

60

XOMX 11

XOP 3320-40T2-11

32.0

40

50

189

96

119

70

XOP 3330-32T2-11

33.0

32

40

182

99

122

60

XOP 3330-40T2-11

33.0

40

50

192

99

122

70

XOP 3340-32T2-11

34.0

32

40

185

102

125

60

XOP 3340-40T2-11

34.0

40

50

195

102

125

70

XOP 3350-32T2-11

35.0

32

40

188

105

128

60

XOP 3350-40T2-11

35.0

40

50

198

105

128

70

XOP 3360-32T2-11

36.0

32

40

191

108

131

60

XOP 3360-40T2-11

36.0

40

50

201

108

131

70

XOP 3370-32T2-13

37.0

32

50

199

111

139

60

XOMX 13

XOP 3370-40T2-13

37.0

40

50

209

111

139

70

XOP 3380-32T2-13

38.0

32

50

202

114

142

60

XOP 3380-40T2-13

38.0

40

50

212

114

142

70

XOP 3390-32T2-13

39.0

32

50

205

117

145

60

XOP 3390-40T2-13

39.0

40

50

215

117

145

70

XOP 3400-32T2-13

40.0

32

50

208

120

148

60

XOP 3400-40T2-13

40.0

40

40

218

120

148

70

XOP 3410-40T2-13

41.0

40

50

221

123

151

70

XOP 3420-40T2-13

42.0

40

50

224

126

154

70

XOP 3430-40T2-13

43.0

40

50

227

129

157

70

XOP 3440-40T2-15

44.0

40

60

237

132

167

70

XOMX 15

XOP 3450-40T2-15

45.0

40

60

240

135

170

70

XOP 3460-40T2-15

46.0

40

60

243

138

173

70

XOP 3470-40T2-15

47.0

40

60

246

141

176

70

XOP 3480-40T2-15

48.0

40

60

249

144

179

70

XOP 3490-40T2-15

49.0

40

60

252

147

182

70

XOP 3500-40T2-15

50.0

40

60

255

150

185

70


◎Normal type has the inner-cooling holes.
◎Insert needs to be purchased separately.
◎Customized services are available.
