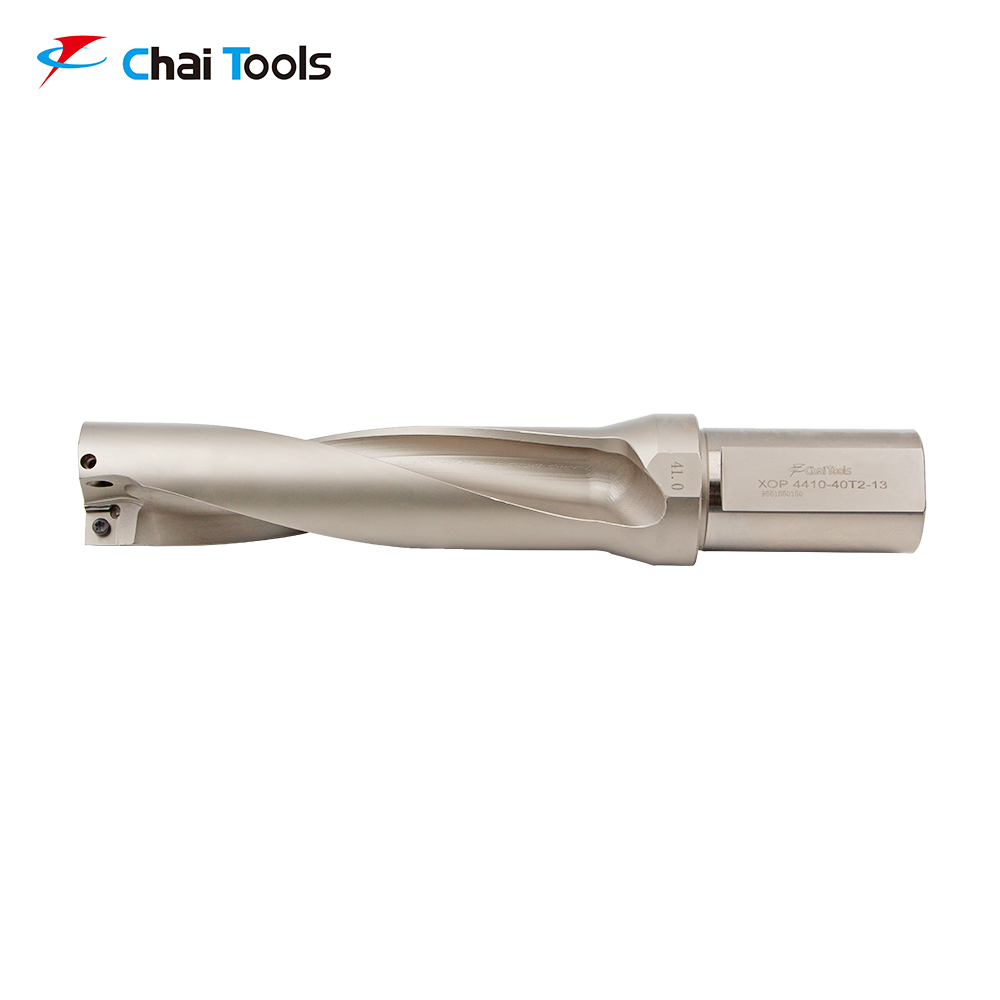

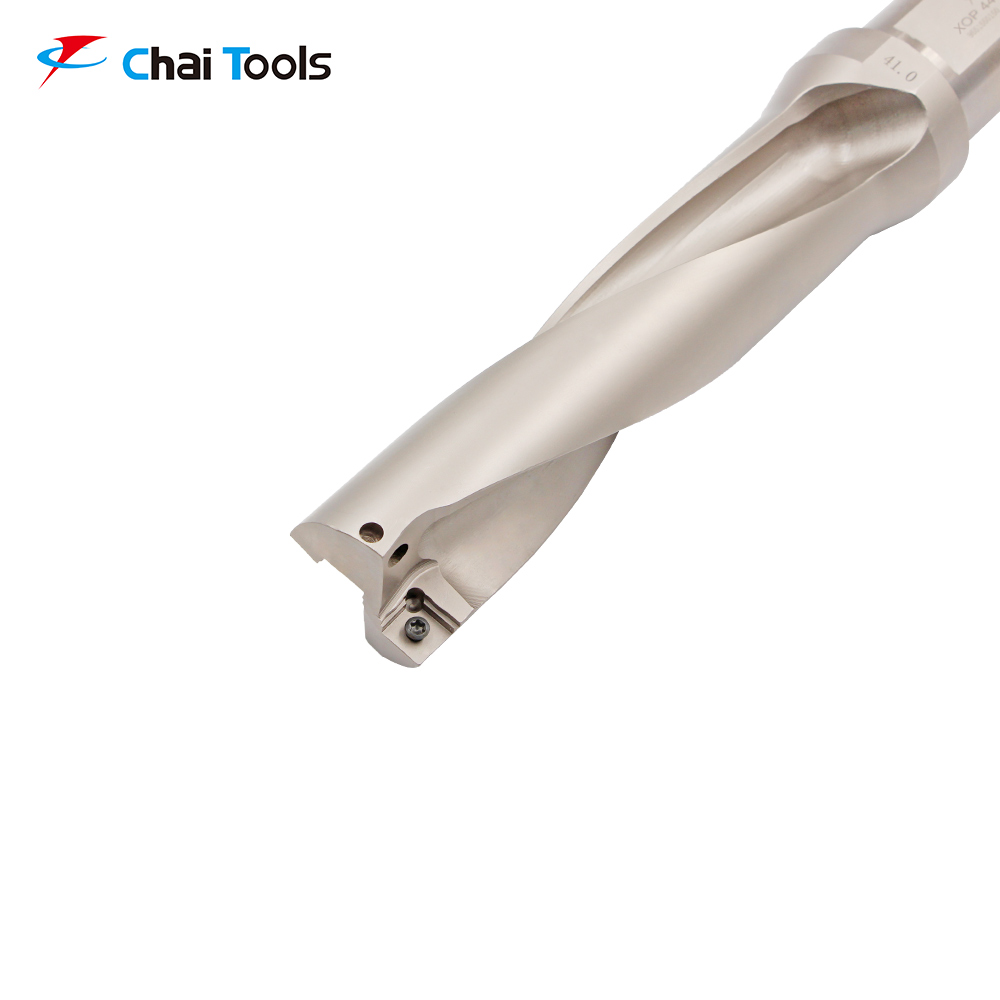

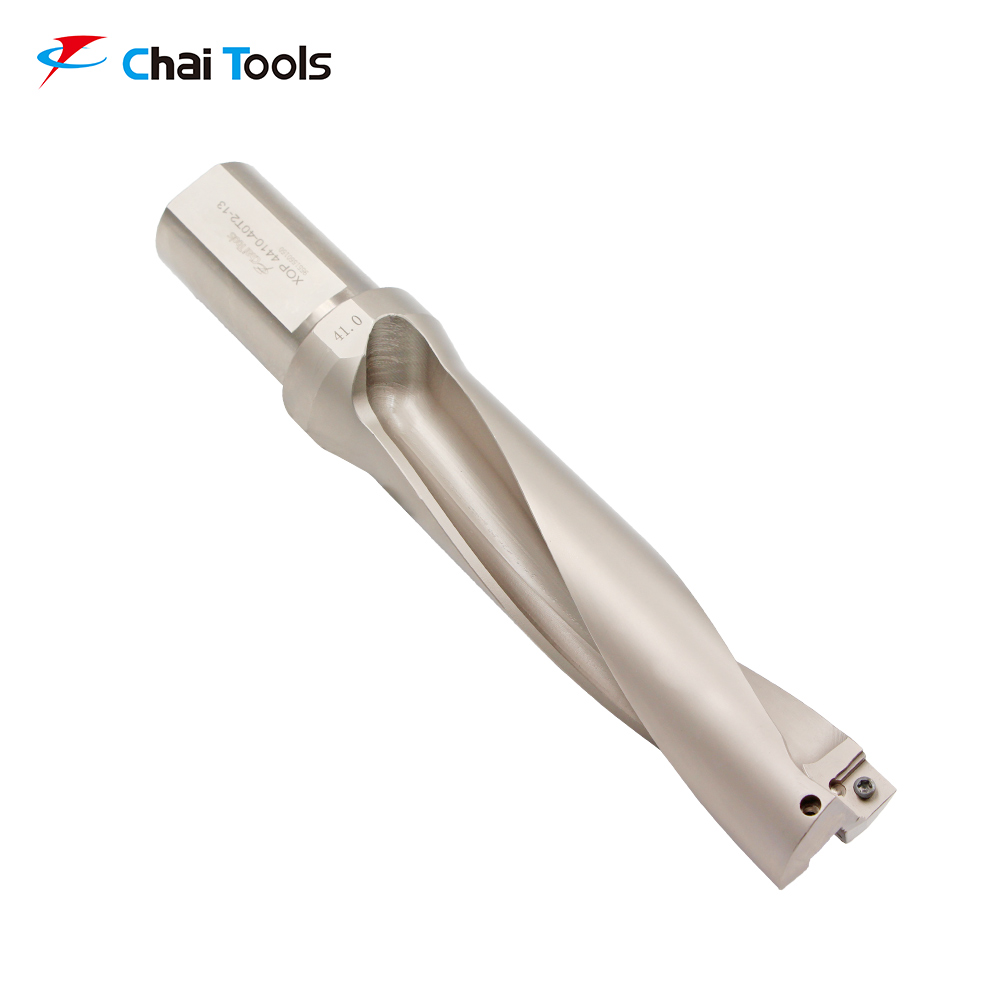

XOP 4410-40T2-13 4D indexable insert u drill

We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.
Contact now
  • FEATURE
  • INQUIRY

1. One kind of indexable drill bit, the range of drilling diameter is Φ14~Φ50mm. The Drilling depth is 2XDiameter.

2. Matched with SOMT insert and also our own XOMX insert, almost has the same service life but

    much lower price, with good cost performance.

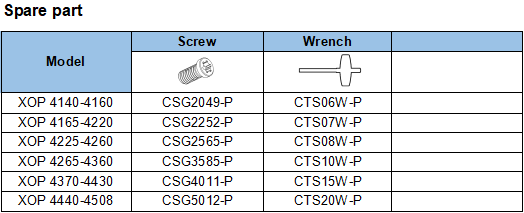

3. Spare parts are imported from Switzerland and Germany in good quality, further prolong the service life.

4. Provided complete specification and competitive price.

Model

Dimension（mm）

Insert

D

d

D3

L

L1

L2

Ls

XOP 4140-20T2-05

14.0

20

25

124

56

74

50

XOMX 05

XOP 4145-20T2-05

14.5

20

21

129

60

79

22

XOP 4150-20T2-05

15.0

20

21

129

60

79

22

XOP 4155-20T2-05

15.5

20

25

134

64

84

50

XOP 4160-20T2-05

16.0

20

25

134

64

84

50

XOP 4165-25T2-06

16.5

25

32

144

68

88

56

XOMX 06

XOP 4170-25T2-06

17.0

25

32

144

68

88

56

XOP 4175-25T2-06

17.5

25

32

149

72

93

56

XOP 4180-25T2-06

18.0

25

32

149

72

93

56

XOP 4185-25T2-06

18.5

25

32

153

76

97

56

XOP 4190-25T2-06

19.0

25

32

153

76

97

56

XOP 4195-25T2-07

19.5

25

32

159

80

103

56

XOMX 07

XOP 4200-25T2-07

20.0

25

32

159

80

103

56

XOP 4205-25T2-07

20.5

25

32

163

84

107

56

XOP 4210-25T2-07

21.0

25

32

163

84

107

56

XOP 4215-25T2-07

21.5

25

32

167

88

111

56

XOP 4220-25T2-07

22.0

25

32

167

88

111

56

XOP 4225-25T2-08

22.5

25

32

170

92

114

56

XOMX 08

XOP 4230-25T2-08

23.0

25

32

170

92

114

56

XOP 4230-32T2-08

23.0

32

40

174

92

114

60

XOP 4235-25T2-08

23.5

25

32

174

96

118

56

XOP 4235-32T2-08

23.5

32

40

178

96

118

60

XOP 4240-25T2-08

24.0

25

32

174

96

118

56

XOP 4240-32T2-08

24.0

32

40

178

96

118

60

XOP 4245-25T2-08

24.5

25

32

178

100

122

56

XOP 4245-32T2-08

24.5

32

40

182

100

122

60

XOP 4250-25T2-08

25.0

25

32

178

100

122

56

XOP 4250-32T2-08

25.0

32

40

182

100

122

60

XOP 4254-25T2-08

25.4

25

32

178

101.6

122

56

XOP 4255-25T2-08

25.5

25

32

181

104

125

56

XOP 4255-32T2-08

25.5

32

40

185

104

125

60

XOP 4260-25T2-08

26.0

25

32

181

104

125

56

XOP 4260-32T2-08

26.0

32

40

185

104

125

60

XOP 4265-25T2-09

26.5

25

40

187

108

131

56

XOMX 09

XOP 4265-32T2-09

26.5

32

40

191

108

131

60

XOP 4270-25T2-09

27.0

25

40

187

108

131

56

XOP 4270-32T2-09

27.0

32

40

191

108

131

60

XOP 4275-25T2-09

27.5

25

40

191

112

135

56

XOP 4275-32T2-09

27.5

32

40

195

112

135

60

XOP 4280-25T2-09

28.0

25

40

191

112

135

56

XOP 4280-32T2-09

280

32

40

195

112

135

60

XOP 4285-25T2-09

28.5

25

40

195

116

139

56

XOP 4285-32T2-09

28.5

32

40

199

116

139

60

XOP 4286-32T2-09

28.6

32

40

199

114.4

139

60

XOP 4290-25T2-09

29.0

25

40

195

116

139

56

XOP 4290-32T2-09

29.0

32

40

199

116

139

60

XOP 4395-32T2-09

39.5

32

40

203

120

143

60

XOP 4300-32T2-09

30.0

32

40

203

120

143

60

XOP 4305-32T2-09

30.5

32

40

207

124

147

60

XOP 4310-32T2-09

31.0

32

40

207

124

147

60

XOP 4318-32T2-11

31.8

32

40

211

127.2

151

60

XOMX 11

XOP 4320-32T2-11

32.0

32

40

211

128

151

60

XOP 4320-40T2-11

32.0

40

50

221

128

151

70

XOP 4330-32T2-11

33.0

32

40

215

132

155

60

XOP 4330-40T2-11

33.0

40

50

225

132

155

70

XOP 4340-32T2-11

34.0

32

40

219

136

159

60

XOP 4340-40T2-11

34.0

40

50

229

136

159

70

XOP 4349-40T2-11

34.9

40

50

233

139.6

163

70

XOP 4350-32T2-11

35.0

32

40

223

140

163

60

XOP 4350-40T2-11

35.0

40

50

233

140

163

70

XOP 4360-32T2-11

36.0

32

40

227

144

167

60

XOP 4360-40T2-11

36.0

40

50

237

144

167

70

XOP 4370-32T2-13

37.0

32

50

236

148

1769

60

XOMX 13

XOP 4370-40T2-13

37.0

40

50

246

148

176

70

XOP 4371-40T2-13

37.1

40

50

246

148.4

176

70

XOP 4380-32T2-13

38.0

32

50

240

152

180

60

XOP 4380-40T2-13

38.0

40

50

250

152

180

70

XOP 4381-40T2-13

38.1

40

50

250

152.4

180

70

XOP 4390-32T2-13

39.0

32

50

244

156

184

60

XOP 4390-40T2-13

39.0

40

50

254

156

184

70

XOP 4400-32T2-13

40.0

32

50

248

160

188

60

XOP 4400-40T2-13

40.0

40

50

258

160

188

70

XOP 4410-40T2-13

41.0

40

50

262

164

192

70

XOP 4413-40T2-13

41.3

40

50

262

165.2

192

70

XOP 4420-40T2-13

42.0

40

50

266

168

196

70

XOP 4429-40T2-13

42.9

40

50

270

171.6

200

70

XOP 4430-40T2-13

43.0

40

50

270

172

200

70

XOP 4440-40T2-13

44.0

40

50

281

176

211

70

XOP 4445-40T2-15

44.5

40

60

285

178

215

70

XOMX 15

XOP 4450-40T2-15

45.0

40

60

285

180

215

70

XOP 4460-40T2-15

46.0

40

60

289

184

219

70

XOP 4470-40T2-15

47.0

40

60

293

188

223

70

XOP 4476-40T2-15

47.6

40

60

297

190.4

227

70

XOP 4480-40T2-15

48.0

40

60

297

192

227

70

XOP 4490-40T2-15

49.0

40

60

301

196

231

70

XOP 4500-40T2-15

50.0

40

60

305

200

235

70

XOP 4508-40T2-15

50.8

40

60

309

203.2

239

70

◎Normal type has the inner-cooling holes.
◎Insert needs to be purchased separately.
◎Customized services are available.
