Gear Rough Milling Series：CSM…A Milling Cutter

Gear Rough Milling Cutter

Contact now

FEATURE
INQUIRY

FEAURES

can design inserts accordingly
Rough milling and fine milling 2-station or 4- station cutter head can be designed according to customer needs

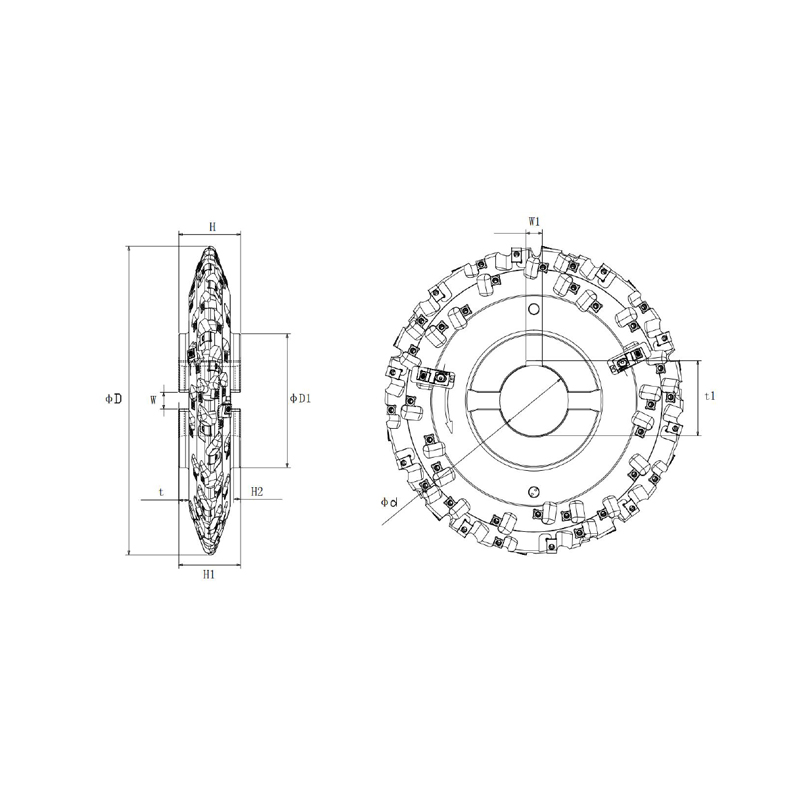

MODEL		DIMENSIONS					MOULD	INSERTS
MODEL		D	d	H	zeff.	D1	MOULD	INSERTS
CSM-40400D90W80-M10A	40	400	90	80	8/4	190	10	16xC, 24xY/Z
CSM-56450D100W90-M10A	56	450	100	90	10/5	190	10	20xC, 36xY/Z
CSM-40400D90W80-M12A	40	400	90	80	8/4	190	12	16xD, 24xY/Z
CSM-56450D100W90-M12A	56	450	100	90	10/5	190	12	20xD, 36xY/Z
CSM-40400D90W80-M14A	40	400	90	80	8/4	190	14	16xE, 24xY/Z
CSM-56450D100W90-M14A	56	450	100	90	10/5	190	14	20xE, 36xY/Z
CSM-40400D90W80-M16A	40	400	90	80	8/4	190	16	16xF, 24xY/Z
CSM-56450D100W90-M16A	56	450	100	90	10/5	190	16	20xF, 36xY/Z
CSM-40400D90W80-M18A	40	400	90	80	8/4	190	18	16xG, 24xY/Z
CSM-56450D100W90-M18A	56	450	100	90	10/5	190	18	20xG, 36xY/Z
CSM-48400D90W80-M20A	48	400	90	80	8/4	190	20	16xH, 32xY/Z
CSM-60450D100W90-M20A	60	450	100	90	10/5	190	20	20xH, 40xY/Z
CSM-48400D90W80-M22A	48	400	90	80	8/4	190	22	16x1, 32xY/Z
CSM-60450D100W90-M22A	60	450	100	90	10/5	190	22	20x1, 40xY/Z
CSM-48400D90W80-M24A	48	400	90	80	8/4	190	24	16xJ, 32xY/Z
CSM-60450D100W90-M24A	60	450	100	90	10/5	190	24	20xJ, 40xY/Z
