INSERTS |
SHAPE |
INTRODUCTION |
SUITABLE FOR |
|||||||||
|
|

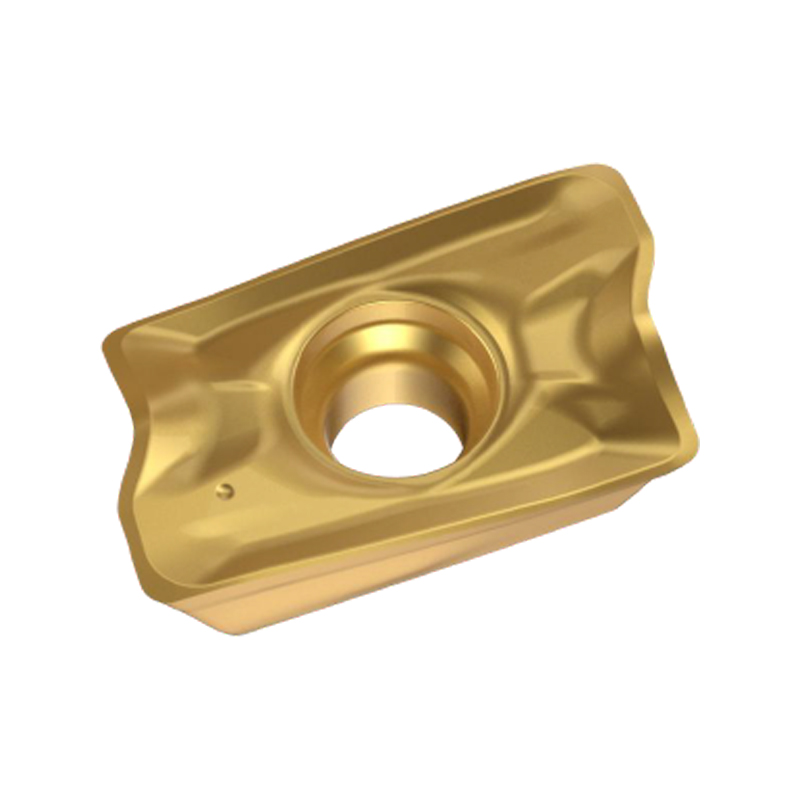

• Blade with wiper Commonly used in 90° shoulder milling, corn milling and other designs |
Milling cutter head: B58 Milling shank: B83 Corn milling: B98 Corn milling: B101 |
|||||||||

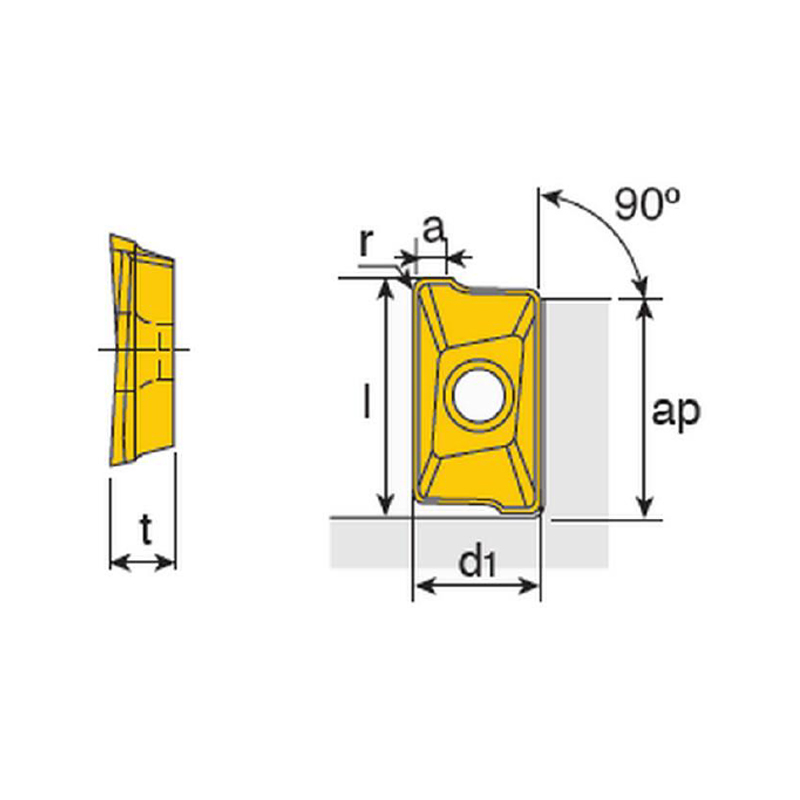

INSERT MODEL |
EDGE |
DIMENSION (mm) |
GRADE |
|||||||||
Long |
d |
ap |
L |
t |
a |
r |
CT5320 |
CT5420 |
CT7420 |
CT8320 |
CT9080 |
|
APKT 1705PER-EM |
17 |
10.7 |
16. 1 |
18.5 |
5. 56 |
11。 |
0.8 |
• |
|
• |
|
|
INSERTS |
SHAPE |
INTRODUCTION |
SUITABLE FOR |
|||||||
|
|

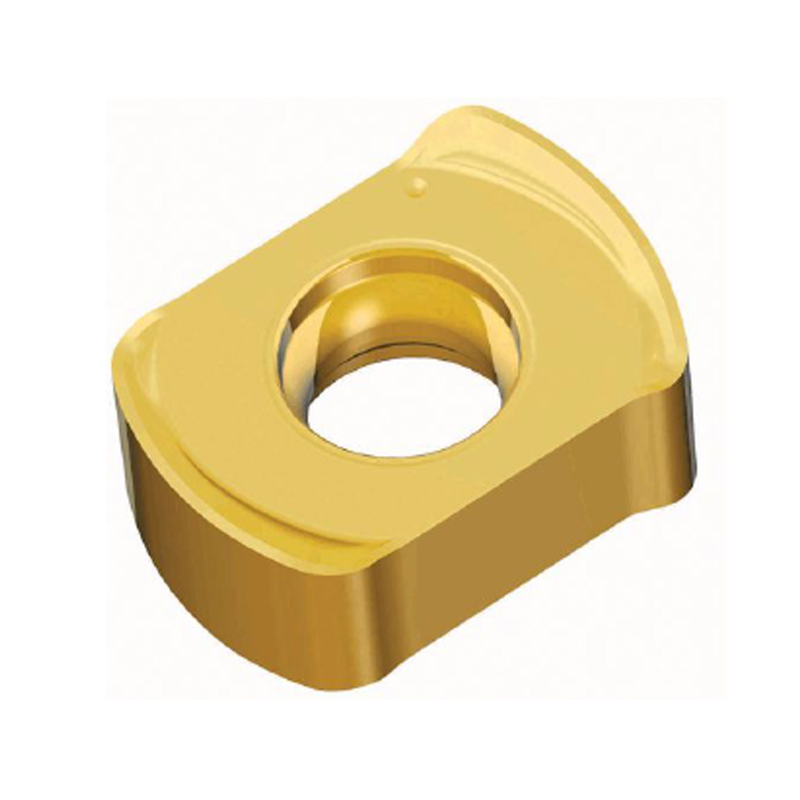

• fast feed blade |
Milling head: B72 Milling shank: B78 Threaded head: B82 |
|||||||

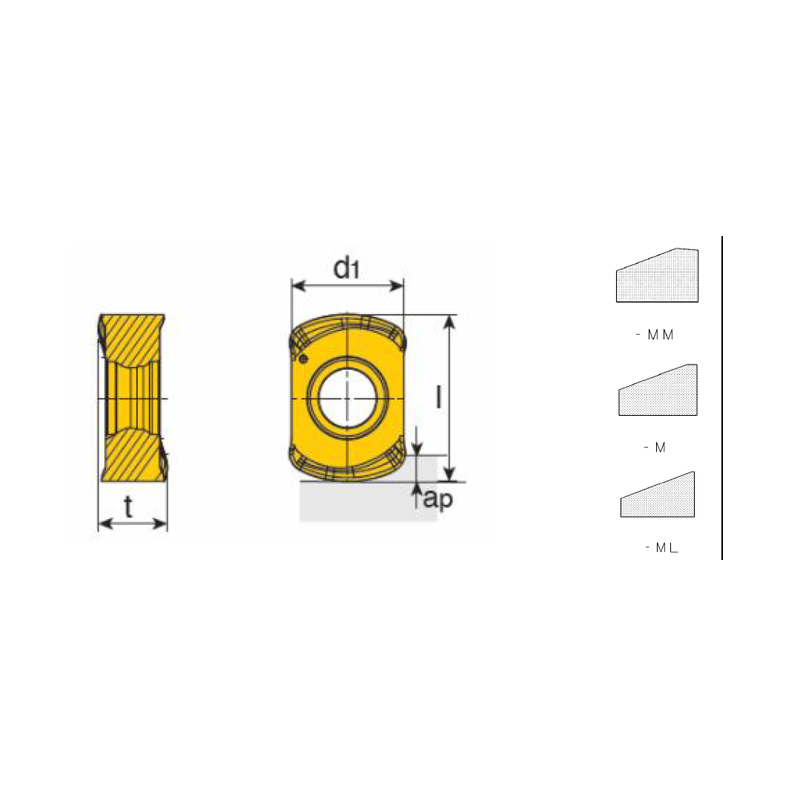

INSERT MODEL |
EDGE Long |
DIMENSION (mm) |
GRADE |
|||||||
1 |
dl |
t |
ap |
FEED mm/TEE |
CUT DEP. mm |
CT5320 |
CT5420 |
|||
BLMP 0603R-M |
06 |
9.0 |
6. 39 |
3. 73 |
1.0 |
0. 3-2. 5 |
0. 1-1.0 |
• |
• |
|
BLMP 0603R-MM |
06 |
9.0 |
6. 39 |
3. 73 |
1.0 |
0. 3-2. 5 |
0. 1-1.0 |
• |
• |
|
BLMP 0904R-M |
09 |
11.9 |
9.18 |
4.80 |
1.5 |
0. 3-3. 5 |
0. 1-1.5 |
• |
• |
|
BLMP 0904R-MM |
09 |
11.9 |
9.18 |
4.80 |
1.5 |
0. 3-3. 5 |
0. 1-1.5 |
• |
• |
|
BLMP 1105R-ML |
11 |
14.6 |
11.2 |
6. 54 |
2.0 |
0. 3-4. 0 |
0. 3-2.0 |
• |
• |
|
BLMP 1105R-M |
14.6 |
11.2 |
6. 54 |
2.0 |
0. 3-4. 0 |
0. 3-2.0 |
• |
• |
With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional AP**17、BL**06/09/11 Milling Inserts suppliers and Wholesale AP**17、BL**06/09/11 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.
