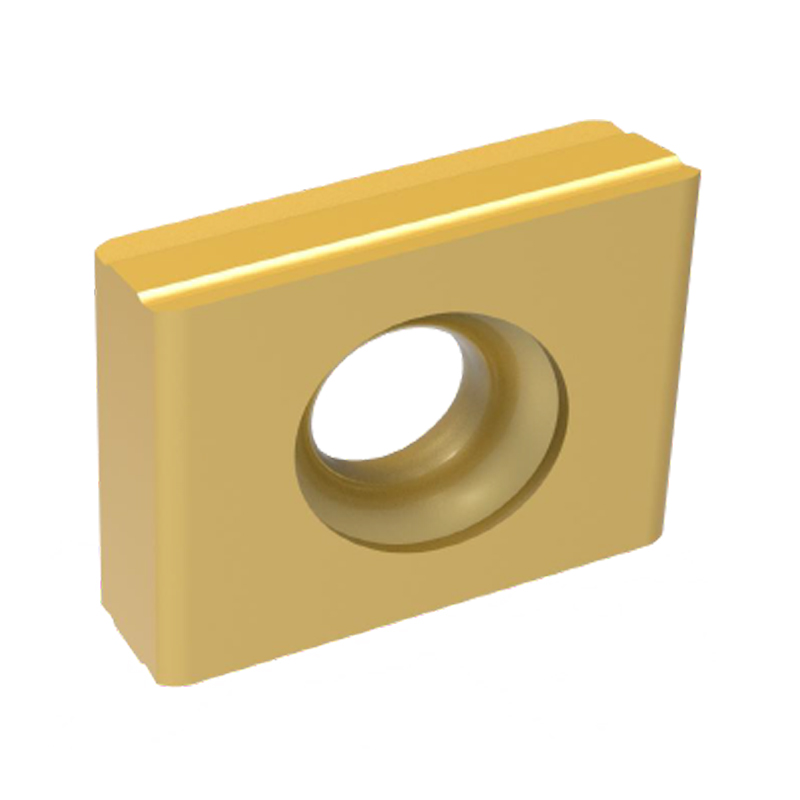

CN**08/10/12/13/16 Milling Inserts

Contact now

FEATURE
INQUIRY

INSERTS	SHAPE						INTRODUCTION			SUITABLE FOR
							• Vertical mount blade • Central blade, no split			three-sided blade： B117

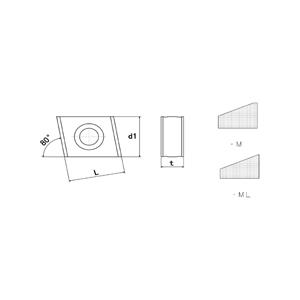

INSERT MODEL	EDGE Long	DIMENSION (mm)				FEED	GRADE
INSERT MODEL	EDGE Long	1	dl	t	r	(mm/Teeth)	CT5320	CT5420	CT7320	CT7420	CT101
CNHX 080504E-M	08	一	一	一	0.4	0. 1 〜0.3		•	i		•
CNHX 080508E-M	08	一	一	一	0.8	0. 1 〜0.3		•			•
CNHX 080512E-M	08	一	一	一	1.2	0. 1 〜0.3		•			•
CNHX 080524E-M	08	一	一	一	2.4	0. 1 〜0.3	•				•
CNHX 100504-ML	10	一	一	一	0.4	0. 1 〜0.3	•	•	•	•
CNHX 100508-ML	10	一	一	一	0.8	0. 1 〜0.3	•	•	•	•
CNHX 100512-ML	10	一	一	一	1.2	0. 1 〜0.3	•	•	•	•
CNHX 100516-ML	10	一	一	一	1.6	0. 1 〜0.3	•	•	•	•
CNHX 121116	12	一	一	一	2.4	0. 1 〜0.3	•	•	•	•
CNHX 121120	12	一	一	一	3.0	0. 1 〜0.3	•	•	•	•
CNHX 131104-ML	13	12.7	11	5.4	0.4	0.1 〜0. 35	•	•	•	•
CNHX 131108-ML	13	12.7	11	5.4	0.8	0.1 〜0. 35	•	•	•	•
CNHX 131112-ML	13	12.7	11	5.4	1.2	0.1 〜0. 35	•	•	•	•
CNHX 131116-ML	13	12.7	11	5.4	1.6	0.1 〜0. 35	•	•	•	•
CNHX 131124-ML	13	12.7	11	5.4	2.4	0.1 〜0. 35	•	•	•	•
CNHX 131130-ML	13	12.7	11	5.4	3.0	0.1 〜0. 35	•	•	•	•
CNHX 160604-ML	16	16.0	12	6.4	0.4	0. 1 〜0.4	•	•	•	•
CNHX 160608-ML	16	16.0	12	6.4	0.8	0. 1 〜0.4	•	•	•	•
CNHX 160612-ML	16	16.0	12	6.4	1.2	0. 1 〜0.4	•	•	•	•
CNHX 160616-ML	16	16.0	12	6.4	1.6	0. 1 〜0.4	•	•	•	•
CNHX 160624-ML	16	16.0	12	6.4	2.4	0. 1 〜0.4	•	•	•	•
CNHX 160630-ML	16	16.0	12	6.4	3.0	0. 1 〜0.4	•	•	•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CN**08/10/12/13/16 Milling Inserts suppliers and Wholesale CN**08/10/12/13/16 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
