INSERTS |
SHAPE |
INTRODUCTION |
SUITABLE FOR |
||||||||
|
|
• Vertical mount blade • Large arc blade |
g cutter head |
||||||||
INSERT MODEL |
EDGE Long |

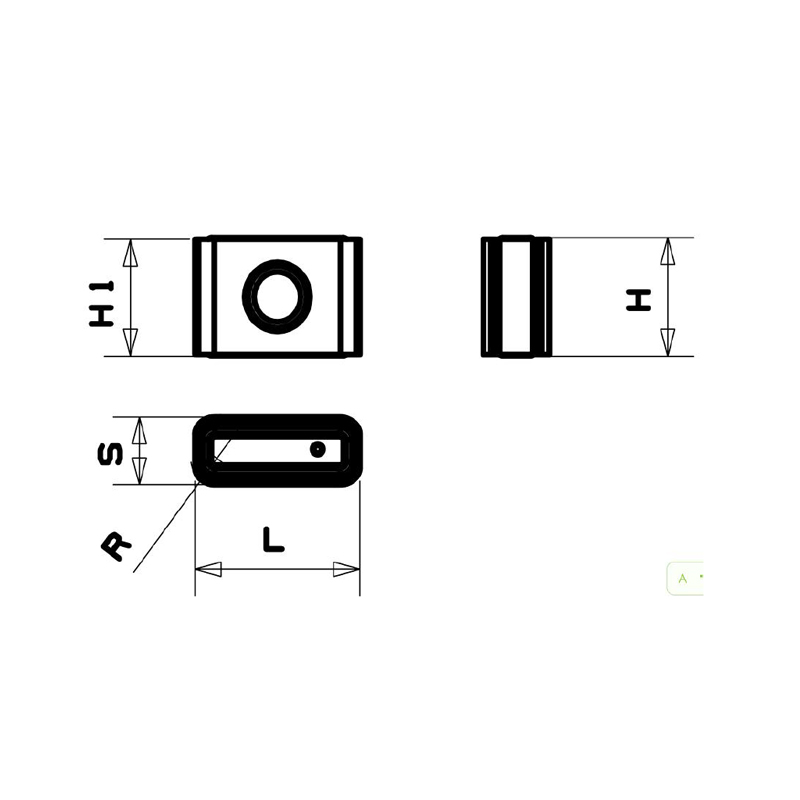

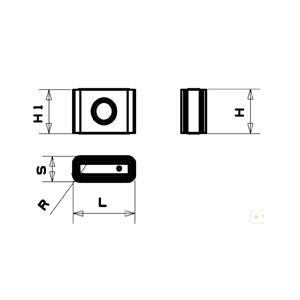

Dimension (mm) |
GRADE |
||||||||
L |
S |
HI |
H |
r |
|
CT5420 |
CT7420 |
CT8320 |
CT9320 |
||
LNGX 2008R2 |
20 |
20.2 |
8.2 |
14 |
14.2 |
2.0 |
|
• |
• |
• |
|
LNGX 2008R2. 5 |
2.5 |
|
• |
• |
• |
|
|||||
LNGX 2008R3 |
3.0 |
|
• |
• |
• |
|
|||||
LNGX 2008R3. 2 |
3.2 |
|
• |
• |
• |
|
|||||
LNGX 2008R4 |
4.0 |
|
• |
• |
• |
|
|||||
LNGX 2008R4. 8 |
4.8 |
|
• |
• |
• |
|
|||||
LNGX 2008R5 |
5.0 |
|
• |
• |
• |
|
|||||
LNGX 2008R6 |
6.0 |
|
• |
• |
• |
|
With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional LN**20 Milling Inserts suppliers and Wholesale LN**20 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.
The following information is help you to understand more:
