SD14、WN04/08 Milling Inserts

Contact now

FEATURE
INQUIRY

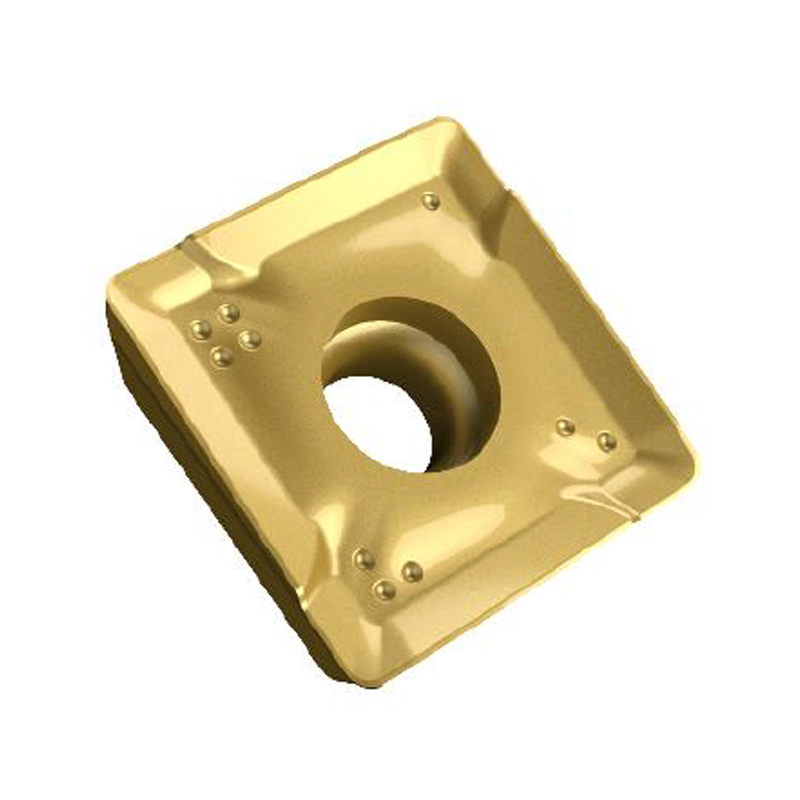

INSERTS	SHAPE					INTRODUCTION			SUITABLE FOR
						• Flat mount 4-edged blade • Maximum depth of cut 10mm • Sharp cutting edge, light cutting perfornance can effectively improve the surface quality of the workpiece			Milling head: B60 Milling shank: B94
INSERT MODEL	EDGE LENGTH	Dimension (mm)					GRADE

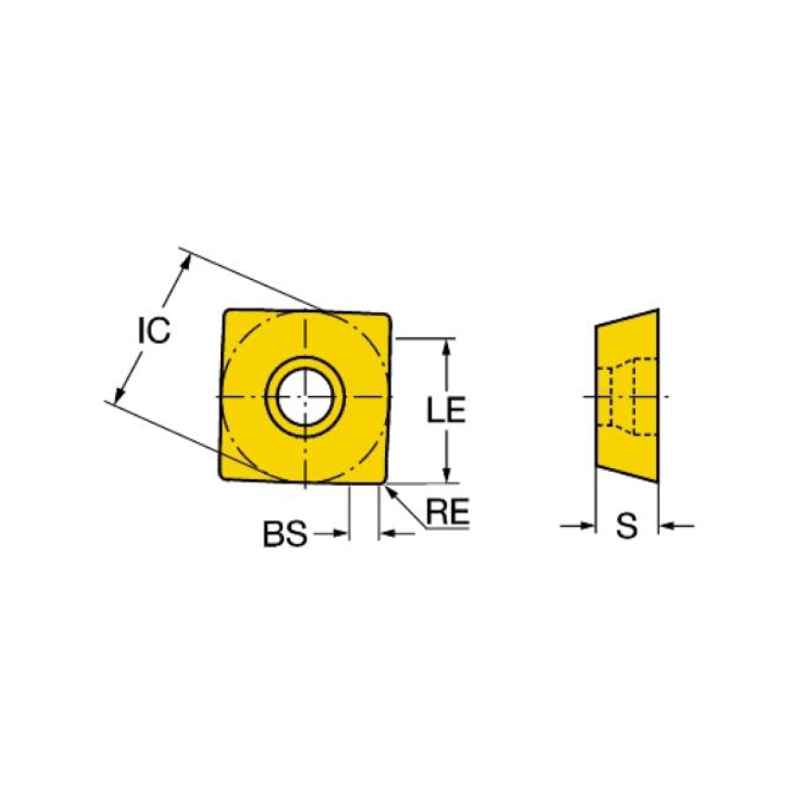

		LE	IC	S	BS	RE	CT5320	CT7420	CT8240	CT8420
SDKT 140408M-PM	14	10.3	13.8	3.9	2.0	0.8	•	•	•	•

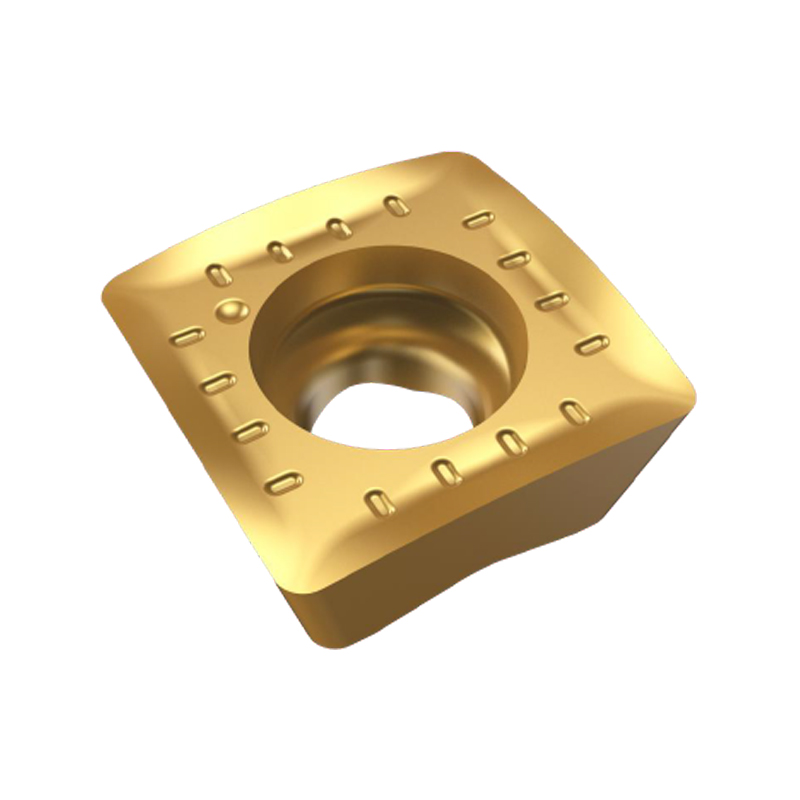

INSERTS	SHAPE				INTRODUCTION			SUITABLE FOR
					• Flat pack single-sided 4-edged blade • Large rake angle, easy cutting • Built-in wiper design			Corn milling: B100 Corn milling: B103


INSERT MODEL	EDGE LENGTH	Dimension (mm)				GRADE

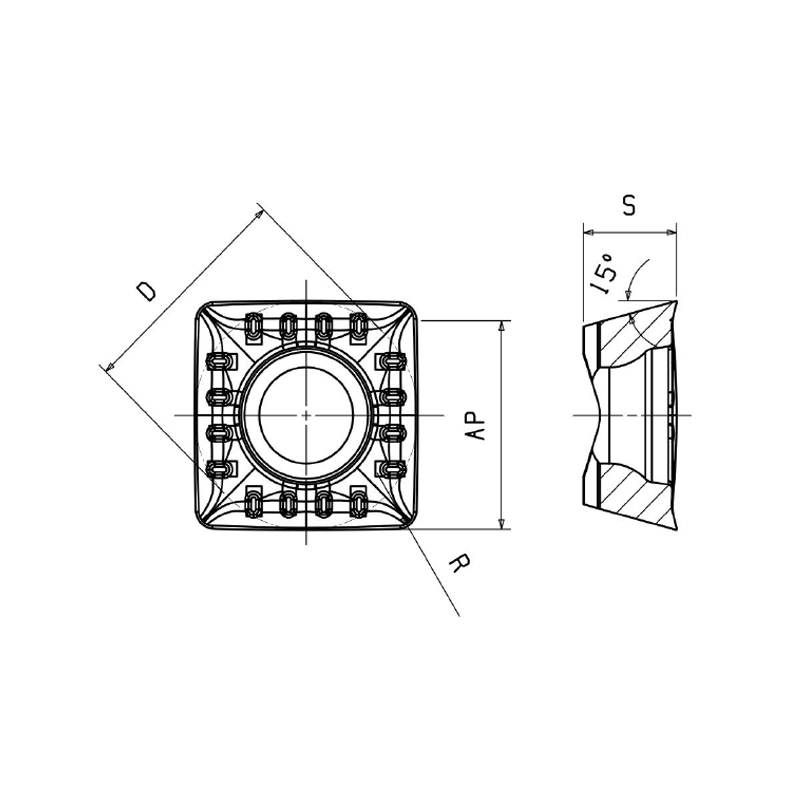

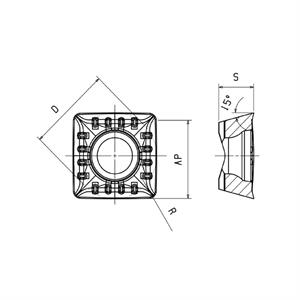

INSERT MODEL	EDGE LENGTH	D	s	AP	R	CT5320	CT7320	CT8320	CT9320
SVKT 09T308-M	09	9. 525	3. 97	8.5	0.8	•	•	•
SVKT 110408-ML	11	11.0	4.5	10.0	0.8	•	•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional SD**14、WN**04/08 Milling Inserts suppliers and Wholesale SD**14、WN**04/08 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
