XC**31 Milling Inserts

Contact now

FEATURE
INQUIRY

INSERTS	SHAPE					INTRODUCTION			SUITABLE FOR

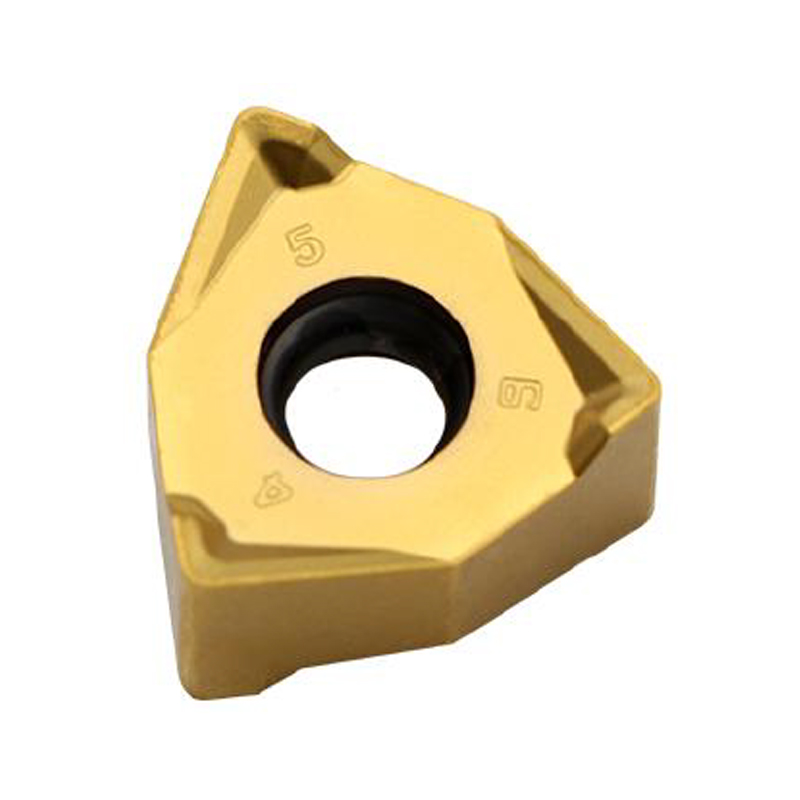

						• Flat mount double-sided 6- blade blade • Large rake angle, easy cutting • Built-in wiper design			Milling cutter head: B56 Milling shank: B85 Threaded head: B86

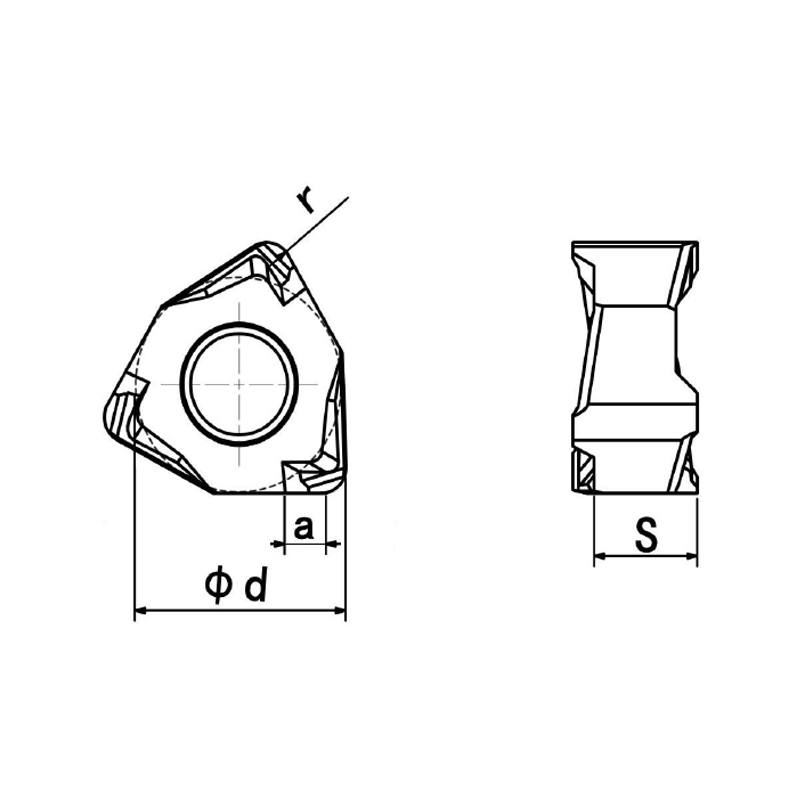

INSERT MODEL	EDGE Long	Dimension (mm)				GRADE
INSERT MODEL	EDGE Long	d	r	s	a	CT5320	CT7420	CT8320	CT8420	CT9320
WNHX 040308-ML	04	7. 64	0.8	3.29	1. 1	•	•
WNHX 080608-ML	08	12. 48	0.8	6. 35	1.2 〜2.0	•	•
WNHX 080608-TR	08	12. 48	0.8	6. 35	1.2 〜2.0	•

INSERTS	SHAPE						INTRODUCTION			SUITABLE FOR

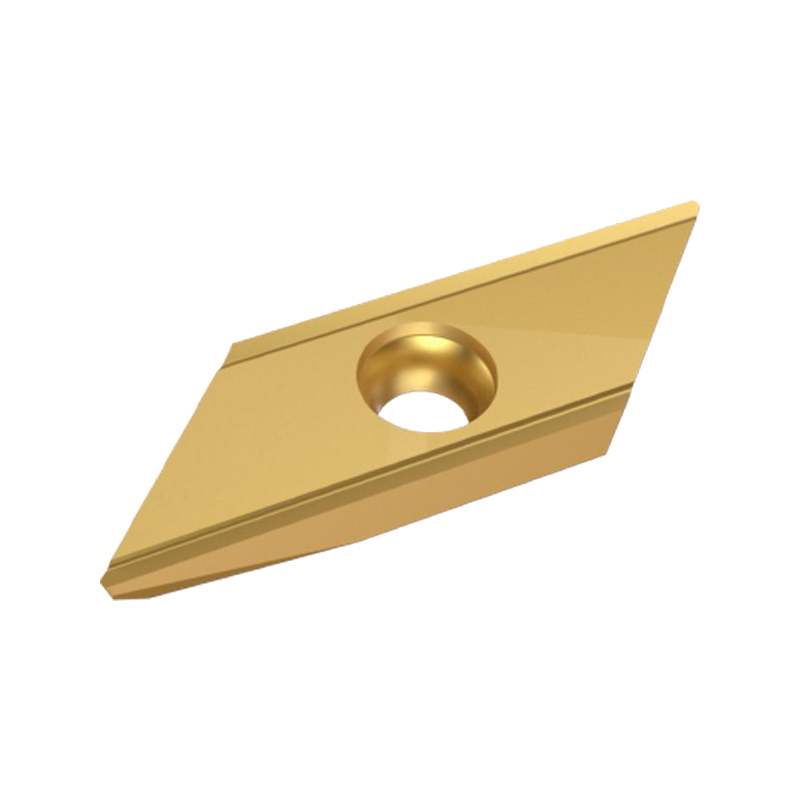

							• Long edge chamfering inserts • Flat mount blade			Chamfering cutter： B97

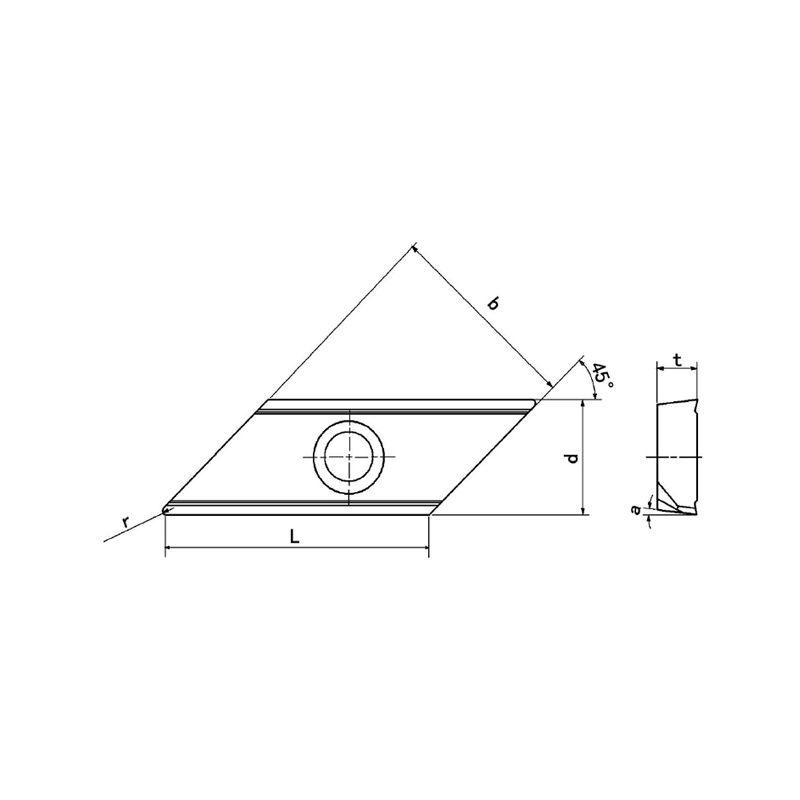

INSERT MODEL	EDGE Long	Dimension (mm)						GRADE
		L	b	d	t	a	r	CT5320	CT5420	CT7320	CT7420
XCET 310404	31	29.2	22	12.7	4.5	7°	0.4	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional XC**31 Milling Inserts suppliers and Wholesale XC**31 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
