CLR Rough Boring Tools

Standard Steel Bridge Rough Boring Tool (Large Bore)，RANGE φ150-φ850

Contact now

FEATURE
INQUIRY

FEAURES

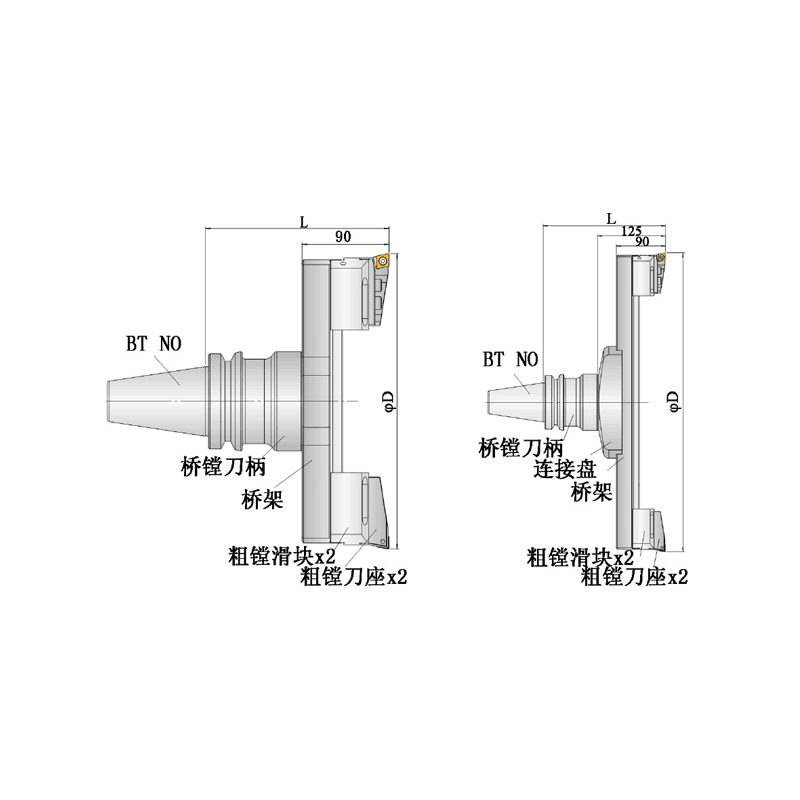

Standard Steel Bridge Rough Boring Tool (Large Bore), Machining Rangeφ 150-φ850

RANGEφ D(mm)	MODEL	W.kg	CONNECTOR		steel bridge		Rough boring slide （2PCS 1 SET）		INSERTS BASE （2PCS 1 SET		FOR INSERT S


			MODEL	W kg	MODEL	W. kg	MODEL	W. kg	MODHL	W. kg
150-210	CLR 150-210	5.5		/	CL 150-210	2.5	LR 150	1.9 1 SET	RS 150	0.6 1SET	cc 1204
210-290	CLR 210-290	6.7			CL 210-290	3.7
290-370	CLR 290-370	8.05			CL 290-370	5. 05
370-450	CLR 370-450	9.8			CL 370-450	6.8
450-530	CLR 450-530	11.4			CL 450-530	8.4
530-610	CLR 530-610	17.2	CL40 -200	4.7	CL 530-610	9.5
610-690	CLR 610-690	18.7			CL 610-690	11.0
690-770	CLR 690-770	20.4			CL 690-770	12.7
770-850	CLR 770-850	22.7			CL 770-850	15.0

◎INSERT to be ordered separately

◎Pull studs are not included in the combination, please note that the form of pull studs is also different

◎Also can make extended bridge type boring holder (non-standard) can be customized when needed

◎The direction of the tool nose of the standard product and the direction of rotation are in the same phase ◎Parts can also be sold individually

◎Wider range of customization

◎Since it is a modular type, it is possible tohandle various types of processing by simply combining the components, thereby simplifying

◎Anlother aluminum alloy bridge is optional,which can be used to reduce the weight of the tool.
