MODEL |
TEETH Z |
DIMENSION |

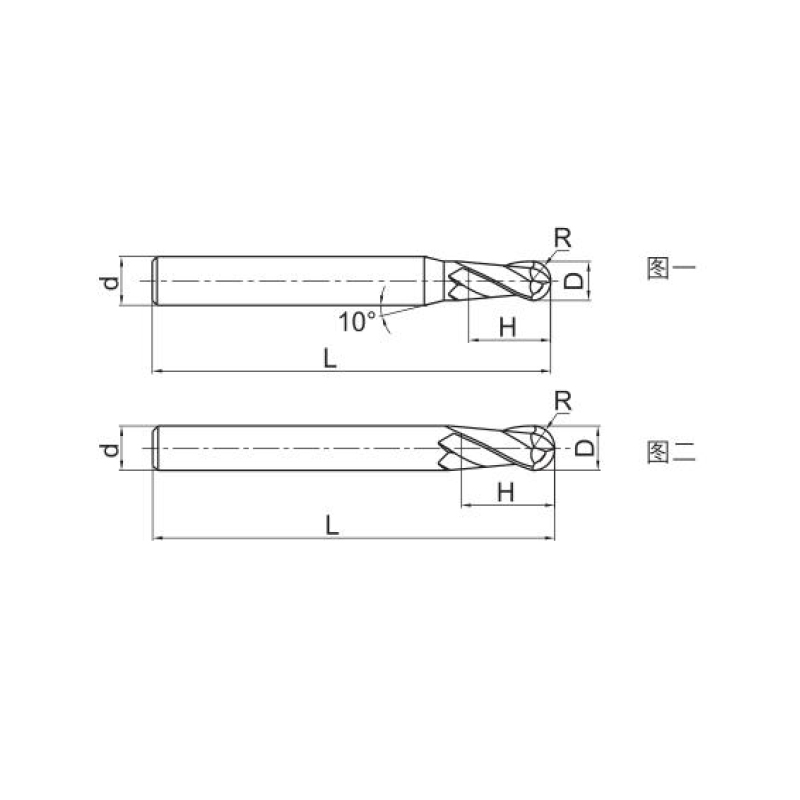

PIC |
||||
D |
R |
d |
H |
L |
|||
CLB2-D010H002L50 |
2 |
1.0 |
0.5 |
4 |
2 |
50 |
PIC 1 |
CLB2-D015H003L50 |
2 |
1.5 |
0. 75 |
4 |
3 |
50 |
PIC 1 |
CLB2-D020H004L50 |
2 |
2.0 |
1.0 |
4 |
4 |
50 |
PIC 1 |
CLB2-D025H005L50 |
2 |
2.5 |
1.25 |
4 |
5 |
50 |
PIC 1 |
CLB2-D030H006L50 |
2 |
3.0 |
1.5 |
4 |
6 |
50 |
PIC 1 |
CLB2-D040H008L50 |
2 |
4.0 |
2.0 |
4 |
8 |
50 |
PIC 2 |
CLB2-D010H002L50 |
2 |
1.0 |
0.5 |
6 |
2 |
50 |
PIC 1 |
CLB2-D015H003L50 |
2 |
1.5 |
0. 75 |
6 |
3 |
50 |
PIC 1 |
CLB2-D020H004L50 |
2 |
2.0 |
1.0 |
6 |
4 |
50 |
PIC 1 |
CLB2-D025H005L50 |
2 |
2.5 |
1.25 |
6 |
5 |
50 |
PIC 1 |
CLB2-D030H006L50 |
2 |
3.0 |
1.5 |
6 |
6 |
50 |
PIC 1 |
CLB2-D035H008L50 |
2 |
3.5 |
1.75 |
6 |
8 |
50 |
PIC 1 |
CLB2-D040H008L50 |
2 |
4.0 |
2.0 |
6 |
8 |
50 |
PIC 1 |
CLB2-D050H010L50 |
2 |
5.0 |
2.5 |
6 |
10 |
50 |
PIC 1 |
CLB2-D055H012L50 |
2 |
5.5 |
2. 75 |
6 |
12 |
50 |
PIC 1 |
CLB2-D060H012L50 |
2 |
6.0 |
3.0 |
6 |
12 |
50 |
PIC 2 |
Processed material |
||||||||||
Carbon steel |
ALLOY |
Pre-hardened steel, hardened steel |
ss |
CAST iron Ductile Iron |
COOPER ALLOY |
ALU ALLOY |
Titan alloy |
Heat res. alloy |
||
〜40HRC |
〜50HRC |
〜55HRC |
||||||||
♦ |
♦ |
♦ |
◇ |
|
◇ |
♦ |
|
|
|
|
With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CLB2 Milling Cutter suppliers and Wholesale CLB2 Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.
