BT-SLN Tooling System

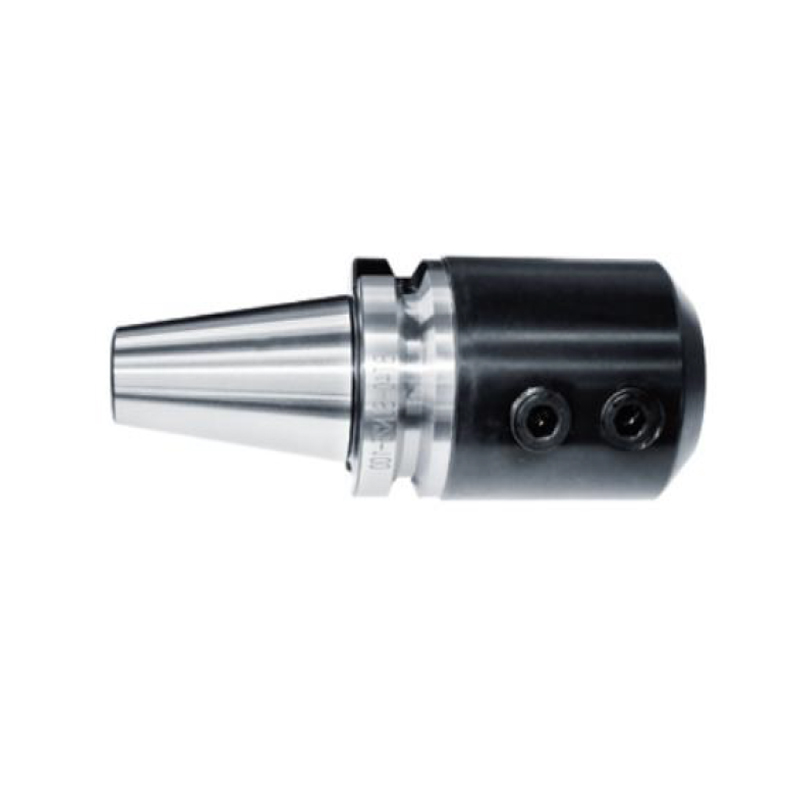

SLN Side mount handle holder

Contact now

FEATURE
INQUIRY

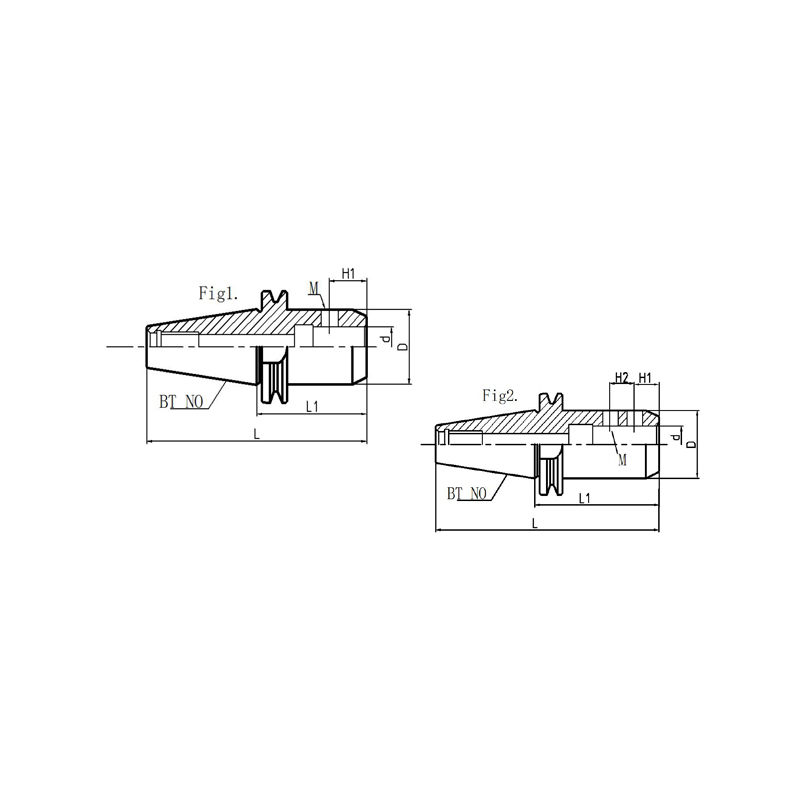

MODEL	DIMENSION						handle	type
MODEL	D	M	L	LI	HI	H2	d	type
BT30-SLN06-60	25	M6	108.4	60	18	—	6	Fig. 1
BT30-SLN08-60	28	M8			18		8
BT30-SLN10-60	35	M10			20		10
BT30-SLN12-60	42	M12			22.5		12
BT30-SLN16-75	48	M12	123.4	75	24		16
BT30-SLN20-63	52	M16	111.4	63	25		20
BT30-SLN20-75	52	M16	123.4	75	25		20
BT30-SLN25-80	65	M16	128.4	80	24	25	25	Fig. 2
BT30-SLN25-90	65	M16	138.4	90	24
BT30-SLN25-100	65	M16	148.4	100	24
BT40-SLN06-50	25	M6	115.4	50	18	—	6	Fig. 1
BT40-SLN08-50	28	M8	115.4	50	18		8
BT40-SLN10-63	35	M10	128.4	63	20		10
BT40-SLN12-63	42	M12			22.5		12
BT40-SLN16-63	48	M12			24		16
BT40-SLN20-63	52	M16			25		20
BT40-SLN25-90	65	M16	155.4	90	24	25	25	Fig. 2
BT40-SLN25-100	65	M16	165.4	100	24	25	25
BT40-SLN32-100	72	M20	165.4	100	24	28	32
BT40-SLN40-105	80	M20	170.4	105	30	32	40
BT40-SLN42-105	82	M20	170.4	105	30	32	42
BT50-SLN06-63	25	M6			18		6
BT50-SLN08-63	28	M8	164.8	63	18		8
BT50-SLN10-63	35	M10			20		10	Fig. 1
BT50-SLN12-80	42	M12			22.5		12	Fig. 1
BT50-SLN16-80	48	M12	181.8	80	24		16
BT50-SLN20-80	52	M16			25		20
BT50-SLN25-100	65	M16	201.8	100	24	25	25
BT50-SLN32-105	72	M20	206.8	105	24	28	32	Fig. 2
BT50-SLN40-115	80	M20	216.8	115	30	32	40	Fig. 2
BT50-SLN42-120	82	M20	221.8	120	30	32	42
