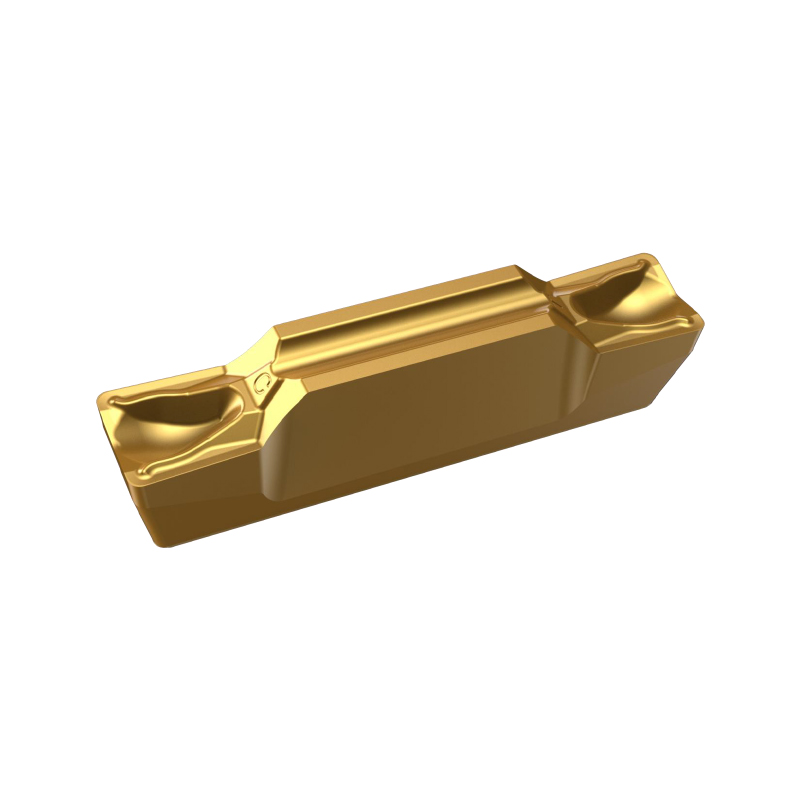

TDGU/TDGX Inserts Series

GROOVING INSERT

Contact now

FEATURE
INQUIRY

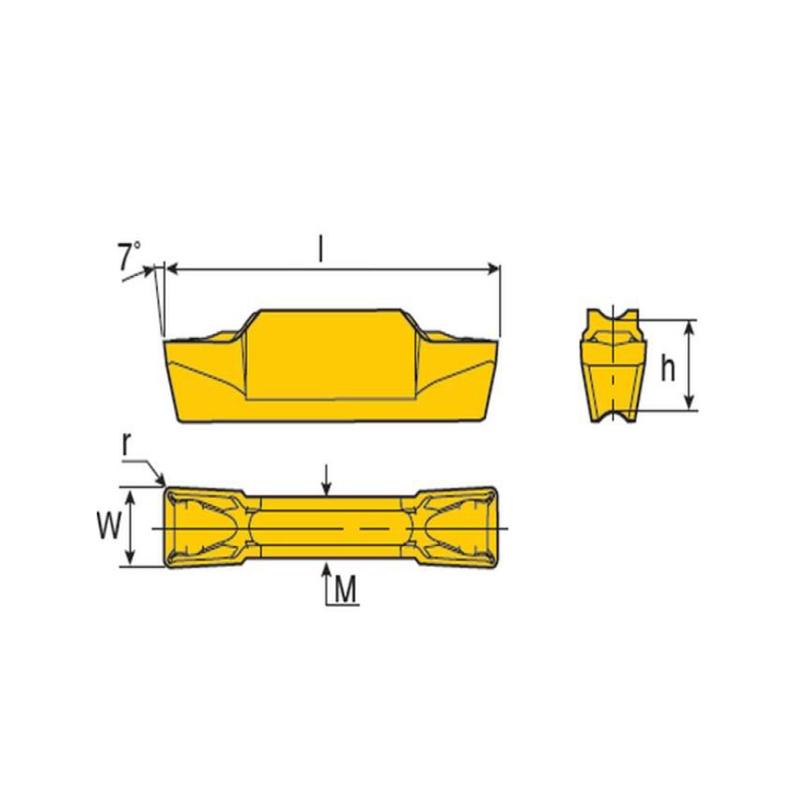

INSERT MODEL	DIMENSION					TURNING MILL		GROOVING	GRADE
INSERT MODEL	W土 0.05	M	1	h	r	FEED (ram/rev)	CUT DEF. (mm)	FEED (mm/rev)	CT5320
TDGU 200	2.0	1.7	20.0	4.7	0.3	0.12-0.18	0. 4-1.2	0. 03-0.18	•
TDGU 250	2.5	2.2	20.0	4.7	0.3	0.15-0.19	0. 4-1.8	0. 04-0.11
TDGU 300	3.0	2.2	20.0	4.7	0.3	0.15-0.19	0. 4-1.8	0. 04-0.11
TDGU 400	4.0	3.0	20.0	4.7	0.4	0.18-0.24	0. 5-2.4	0. 09-0.15
TDGU 500	5.0	4.0	25.0	5.2	0.4	0. 20-0. 30	0. 5-3. 0	0. 11-0. 20
TDGU 600	6.0	5.0	25.0	5.2	0.8	0. 22-0. 36	0. 1-0.4	0. 13-0. 23

FLAT INSERTS: PRESSED INSERTS FOR EXTERNAL,INTERNAL FACE TURNING,GROOVING AND PARTING

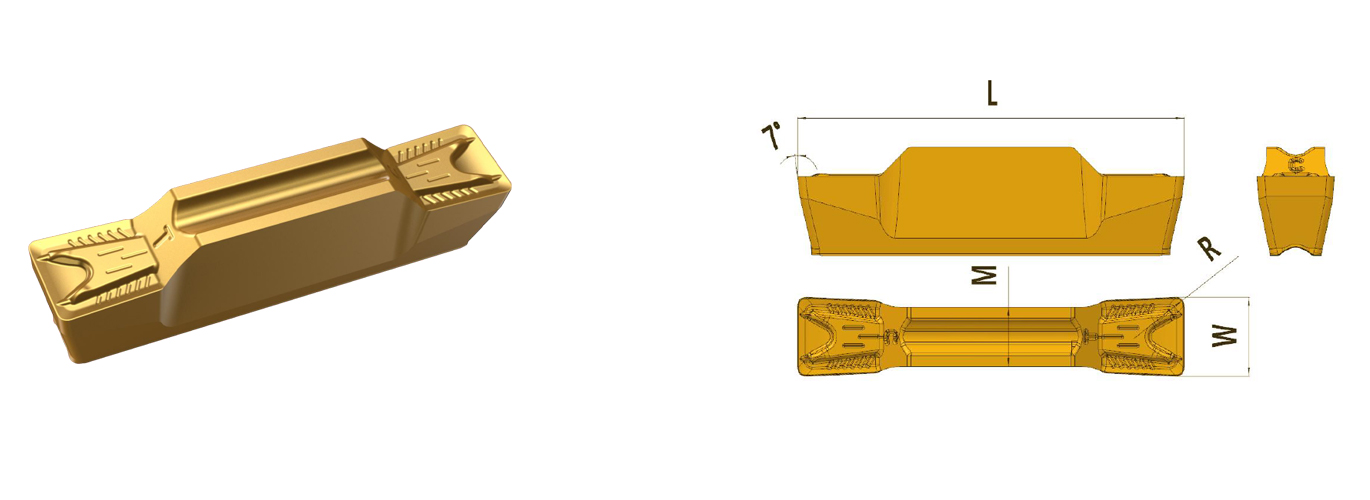

INSERT MODEL	DIMENSION				TURNING MILL		GROOVING	GRADE
INSERT MODEL	W ±0.05	M	L	R	FEED (mm/rev)	CUT DEF. (mm)	FEED (mm/rev)	CT5320	CT7320
TDGX 3E-0. 4	3.0	2.2	20.0	0.4	0. 17-0. 20	0. 5-1.8	0. 06-0. 18	•	•
TDGX 4E-0.4	4.0	3.0	20.0	0.4	0. 20-0. 27	0. 5-2.4	0. 07-0. 20
TDGX 4E-0. 8	4.0	3.0	20.0	0.8	0. 22-0. 27	1.0-2.4	0. 07-0. 20
TDGX 5E-0.4	5.0	4.0	25.0	0.4	0. 22-0. 32	0. 5-3.0	0. 08-0. 23
TDGX 5E-0. 8	5.0	4.0	25.0	0.8	0. 25-0. 37	1. 0-3.0	0. 08-0. 23
TDGX 6E-0.4	6.0	5.0	25.0	0.4	0. 25-0. 38	0. 5-3.6	0.12-0. 35
TDGX 6E-0. 8	6.0	5.0	25.0	0.8	0. 26-0. 42	1.0-3.6	0.12-0. 35

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional TDGU/TDGX Inserts Series suppliers and Wholesale TDGU/TDGX Inserts Series company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
