LN SERIES：CCM490LN Milling Cutter

Corn milling cutter HOLDER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ25～φ 40mm
Has four right-hand 90° cutting edges
The design combination of helical cutting edge and large positive rake angle makes cutting easier and faster can be used to process P/M/K/S type material

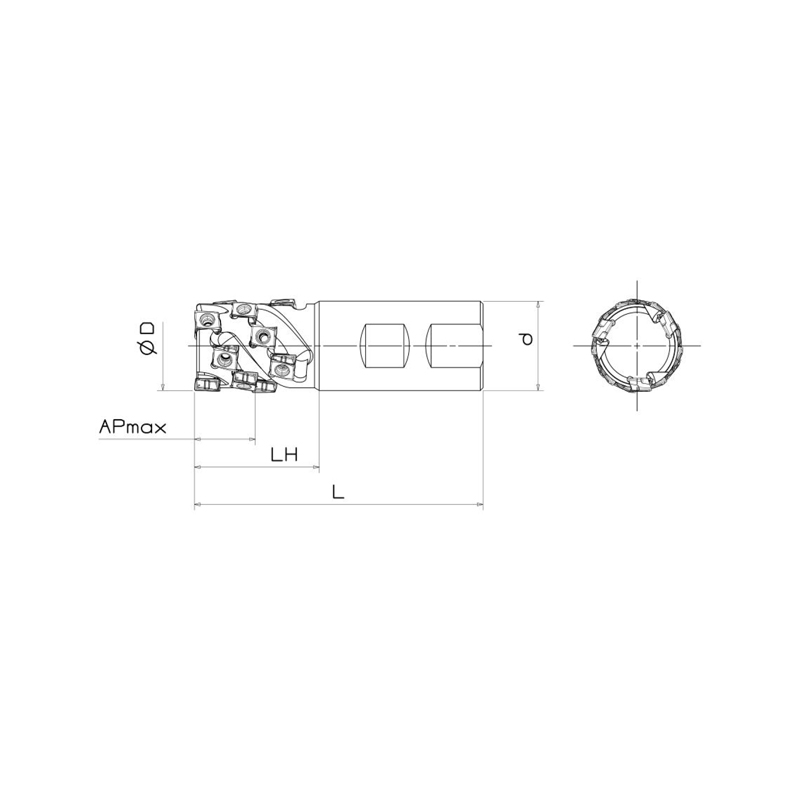

MODEL	kr		TEETH	DIMENSION					INSERT
MODEL	kr		TEETH	D	APmax	LH	L	d	INSERT
CCM490LN-2525L100Z25R-09	90°	2	10	25	36	43	100	25	LNHU 0904
CCM490LN-3532L105Z32R-09		3	15	32	36	44	105	32
CCM490LN-3632L115Z32R-09		3	18	32	43	52	115	32
CCM490LN-3640L125Z40R-09		3	18	40	43	54	125	40
CCM490LN-3740L135Z40R-09		3	21	40	51	64	135	40

◎STANDARD CUTTER WITHOUT INTERNAL COOLANT；INSERTS TO BE ORDERED SEPARATELY

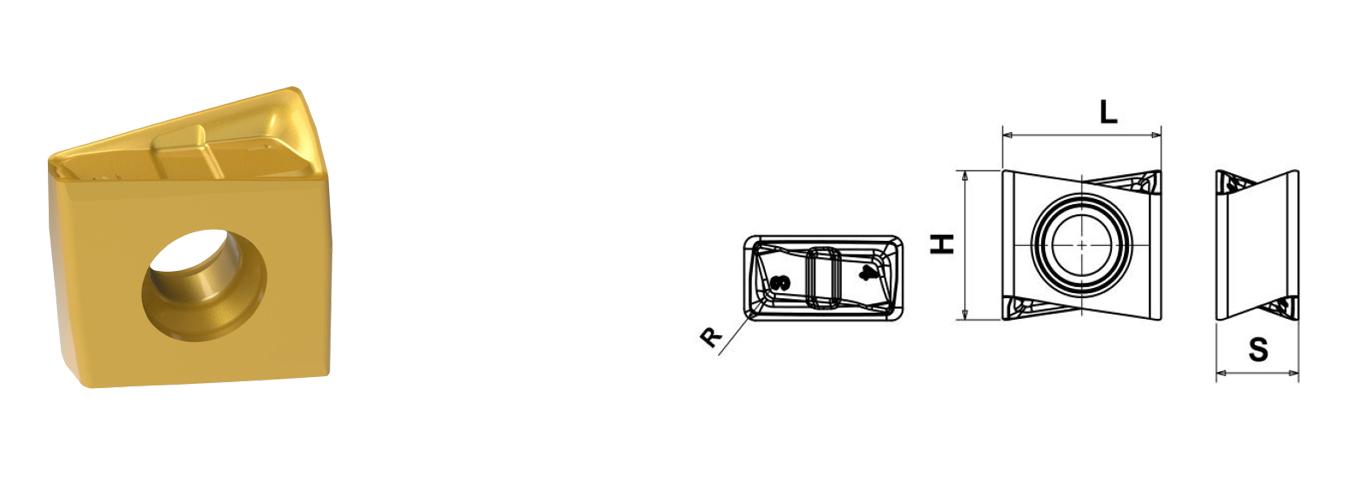

MODEL

EDGE

LONG

(° )

DIMENSION

GRADE

APmax

CT5320

CT5420

CT7320

CT8320

LNHU 090404-M

9.02

8. 55

4. 48

0.4

8.5

•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CCM490LN-09	CSC3010	CTS08W
