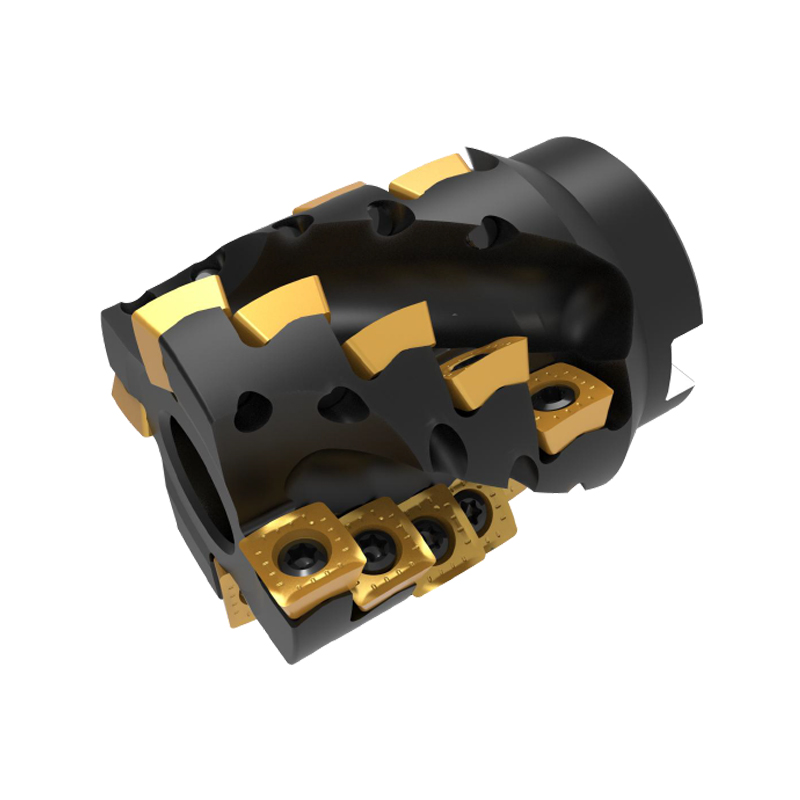

SV SERIES：CCM90SV Milling Cutter

CORN TYPE MILL CUTTER HOLDER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ40 ～φ80mm The insert has 4 right-hand 90° cutting edges, a combination of helical cutting edges and a large positive rake angle, making cutting easier.

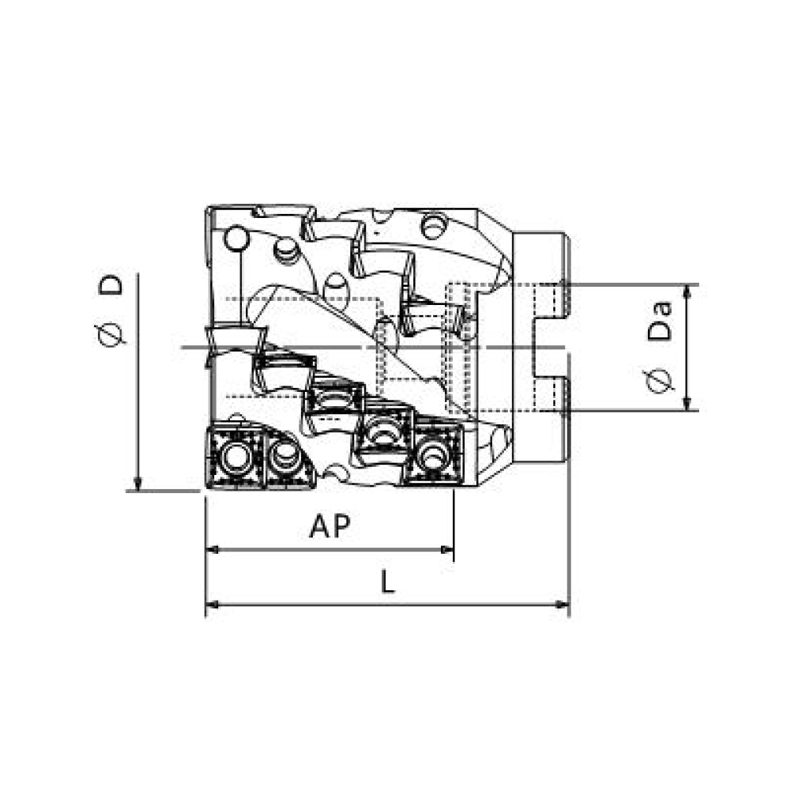

MODEL	KR		TEETH	DIMENSION				kg	INSERT
MODEL	KR		TEETH	D	AP	L	Da	kg	INSERT
CCM90SV-3340A16R-11	90°	3	9	40	27	55	16	0.3	SVKT 1104
CCM90SV-4550A22R-11		4	20	50	43	65	22	0.6
CCM90SV-4850A22R-11		4	32	50	69	90	22	0.8
CCM90SV-5763A27R-11		5	35	63	60	85	27	1.2
CCM90SV-5863A27R-11		5	40	63	69	93	27	1.4
CCM90SV-6980A32R-11		6	54	80	76	100	32	2.6

◎STANDARD CUTTER WITHOUT INTERNAL COOLANT；INSERTS TO BE ORDERED SEPARATELY。

MODEL

EDGE

LONG

DIMENSION

GRADE

CT5320

CT5420

CT7320

CT8320

CT9320

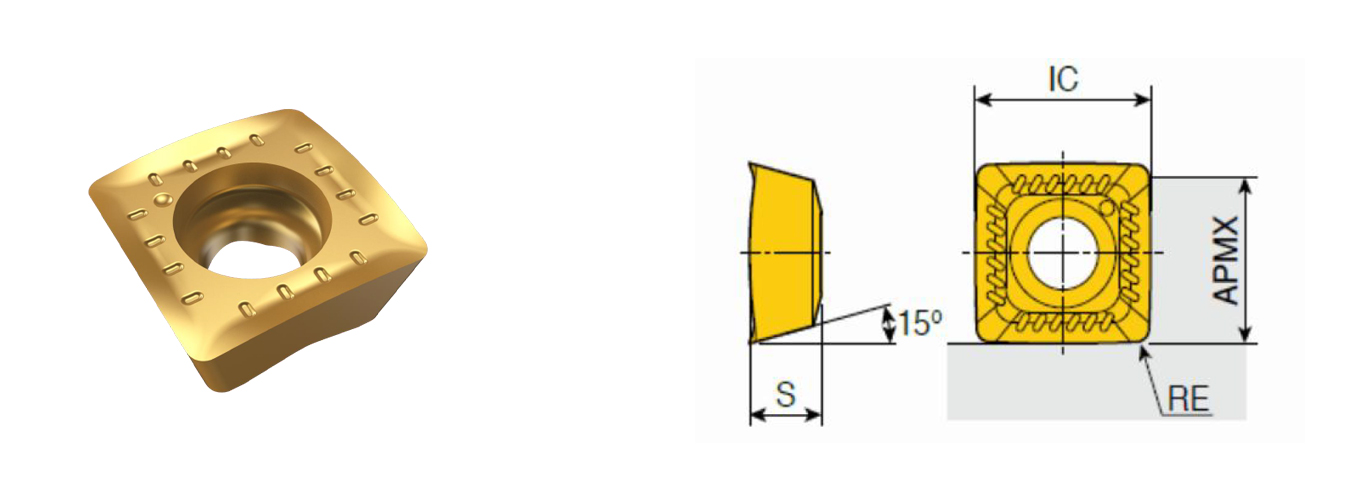

SVKT 110408-ML

90°

4.5

0.8

•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CCM90SV-**-11	CST4010	CTS15W

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional SV SERIES：CCM90SV Milling Cutter suppliers and Wholesale SV SERIES：CCM90SV Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
