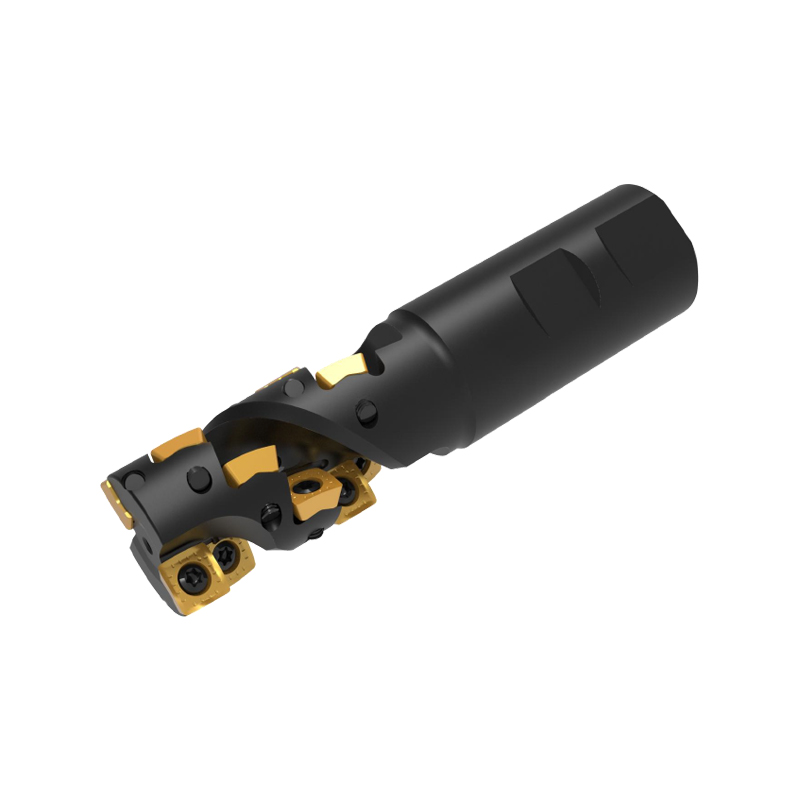

SV SERIES：CCM90SV Milling Cutter

Corn milling cutter HOLDER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Corn milling cutter HOLDER
Blade turning diameterφ25 ～φ50mm

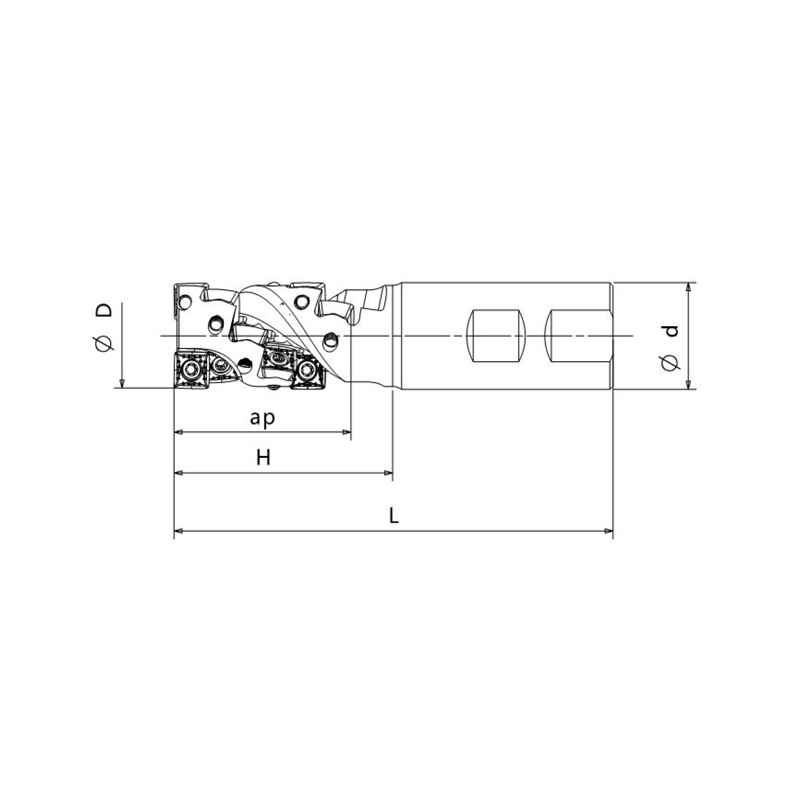

MODEL	kr		TEETH	DIMENSION					INSERT
MODEL	kr		TEETH	D	ap	H	L	d	INSERT
CCM90SV-2625L120Z25R-09	90°	2	12	25	40	58	120	25	SVKT 09T3
CCM90SV-2732L135Z32R-09		2	14	32	52	70	135	32	SVKT 09T3
CCM90SV-2632L135Z32R-11		2	12	32	52	70	135	32	SVKT 1104
CCM90SV-3640L135Z32R-11		3	18	40	52	75	135	32
CCM90SV-3740L180Z32R-11		3	21	40	60	85	180	32
CCM90SV-4650L145Z40R-11		4	24	50	52	75	145	40
CCM90SV-4950L170Z40R-11		4	36	50	76	100	170	40

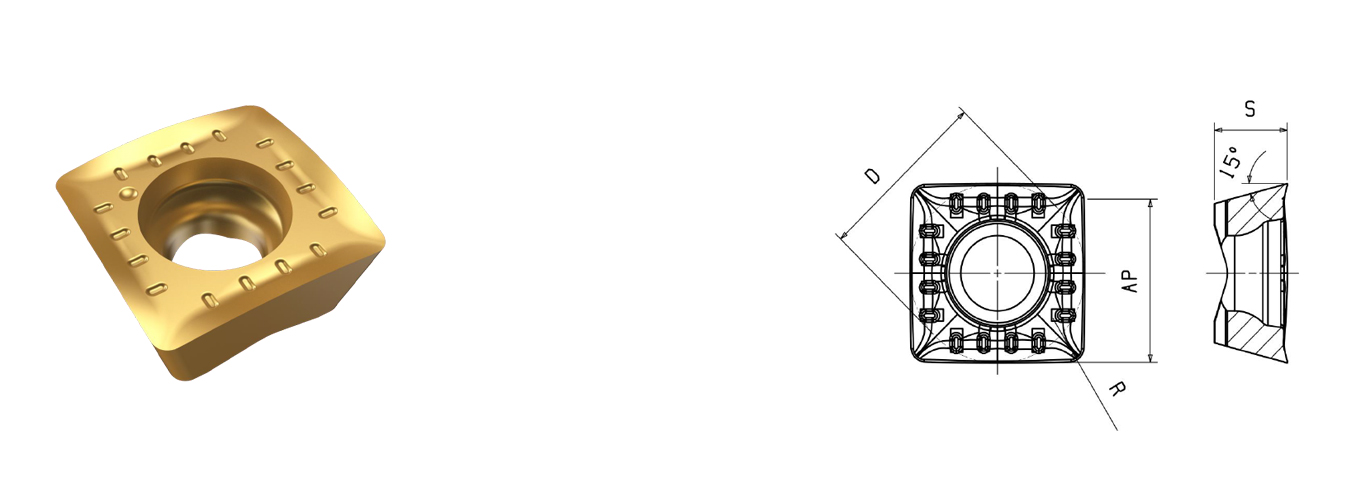

INSERT MODEL	EDGE LENGTH	DIMENSION				GRADE
INSERT MODEL	EDGE LENGTH	D	S	AP	R	CT5320	CT7320	CT8320	CT9320
SVKT 09T308-M	09	9. 525	3. 97	8.5	0.8	•	•	•
SVKT 110408-ML	11	11.0	4.5	10.0	0.8	•	•	•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CCM90SV-**-11	CSC4090	CTS15W
