XOMX / SPMG Drilling Inserts

Drilling inserts

Contact now

FEATURE
INQUIRY

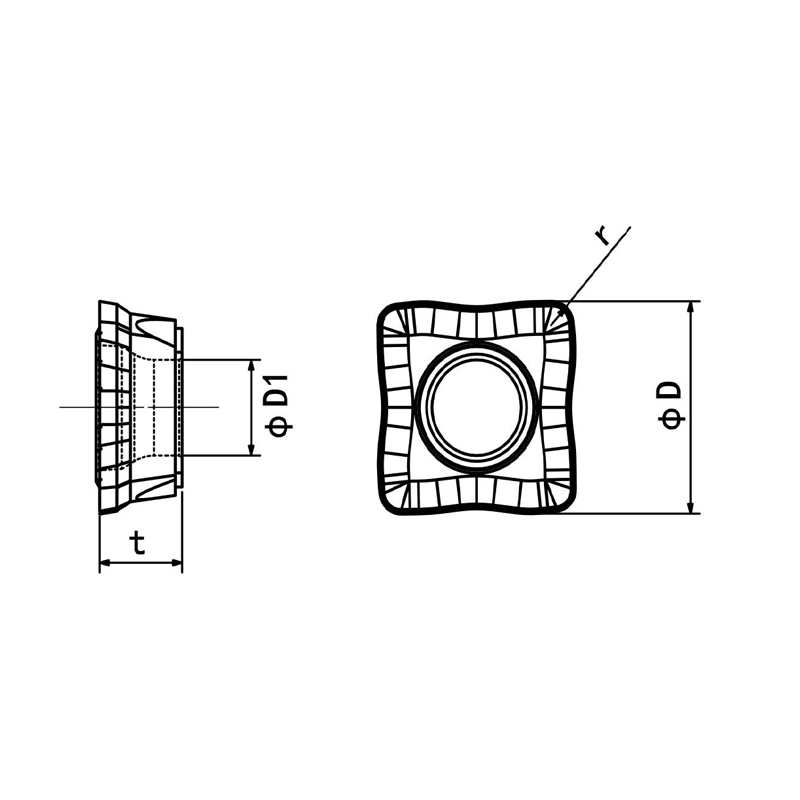

inserts model	dimensions				screw	grade
inserts model	D	t	r	D1		CT5320
XOMX 050204	4.9	2. 38	0.4	2.25	CSG2049-P	•
XOMX 060204	5.7	2. 38	0.4	2.60	CSG2252-P
XOMX 070306	6.8	2. 80	0.6	2.60	CSG2252-P
XOMX 08T306	7.9	3.97	0.6	2.85	CSG2565-P
XOMX 09T308	9.2	3.97	0.8	3.80	CSG3585-P
XOMX 11T308	11.0	3.97	0.8	3. 80	CSG3585-P
XOMX 130408	12.8	4. 40	0.8	4.40	CSG4011-P
XOMX 150510	15.0	4. 80	1.0	5.40	CSG5012-P

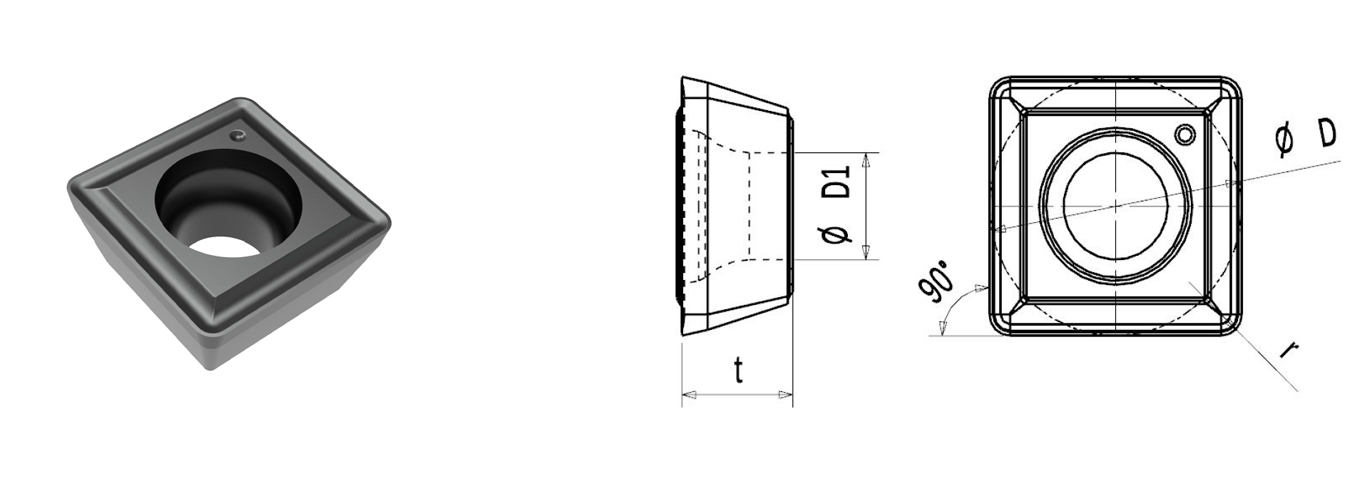

SPMGinserts

inserts model	dimensions				screw	grade
inserts model	D	t	r	D1		CT5420
SPMG 050204-PM	5. 00	2. 38	0.4	2.25	CSG2049-P	•
SPMG 060204-PM	6. 00	2. 38	0.4	2.61	CSG2252-P
SPMG 07T308-PM	7. 94	3.97	0.8	2.85	CSG2565-P
SPMG 090408-PM	9. 80	4. 30	0.8	4.05	CSG3585-P
SPMG 110408-PM	11.5	4. 80	0.8	4.45	CSG4011-P

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional XOMX / SPMG Drilling Inserts suppliers and Wholesale XOMX / SPMG Drilling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
