ANSERIES：CE90AN-Z End Milling Cutter

END MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

SHANK DIAφ40～φ63mm
Positive 4-flute 90° insert, cutting lightlyAP maximum cutting depth 5.5-10.0mm The cutting edge of the blade is in a large arc shape to avoid the occurrence of tool marks in the layered milling ofsquare shoulder

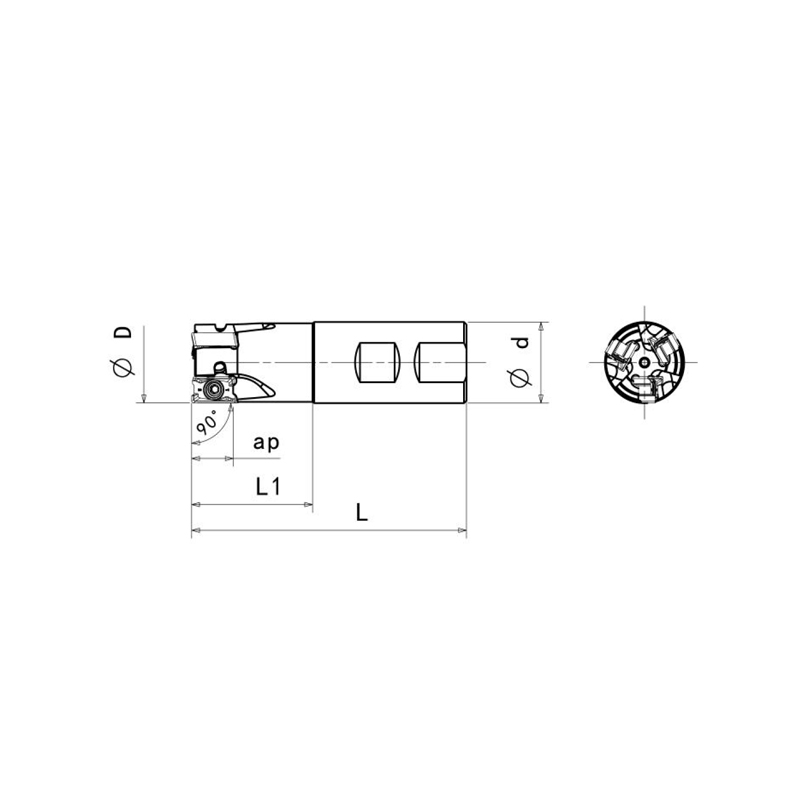

MODEL	kr		DIMENSION						SUITABLE INSERT
MODEL	kr		D	d	L	LI	ap		SUITABLE INSERT
CE90AN-220L79Z20R-12	90°	2	20	20	79	28	11.5	0. 17	ANKU 1204
CE90AN-320L79Z20R-12		3	20	20	79	28		0. 16
CE90AN-325L89Z25R-12		3	25	25	89	32		0. 29
CE90AN-432L110Z32R-12		4	32	32	110	49		0. 60
CE90AN-540L110Z32R-12		5	40	32	110	49		0. 66
CE90AN-225L89Z25R-17		2	25	25	89	32	16.5	0. 28	ANKU 17T6 ANHU 17T6
CE90AN-332L111Z32R-17		3	32	32	111	50		0. 58
CE90AN-340L111Z32R-17		3	40	32	111	50		0. 65
CE90AN-440L111Z32R-17		4	40	32	111	50		0. 65

ACCESSORY

MODEL	DIA	SCREW	WRENCH
MODEL	DIA
CE90AN-**-12	20、25、32、40	CSC3080	CTS10W
CE90AN-**-17	25、32	CSD4010	CTS15W
CE90AN-**-17	40	CSC4013	CTS15W
