SN SERIES：CFM88SN Face Milling Cutter

FACE MILL CUTTER，Kr=88°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ200mm
The blade is double-sided and eight-edged type, which is economical. The large rake angle of the blade is designed for FAST cutting.
Divided into M and ML models.

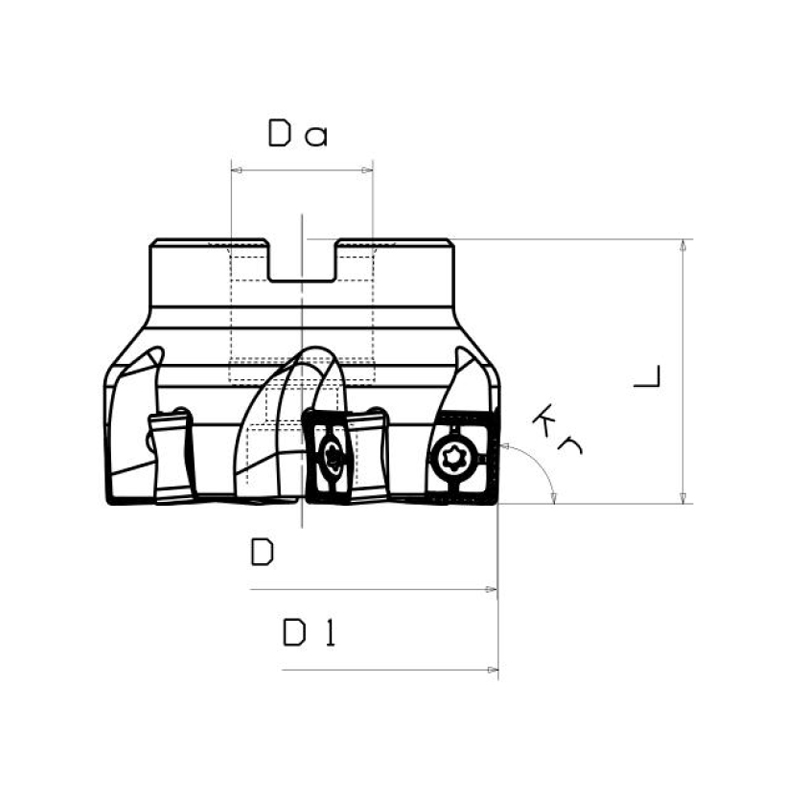

MODEL	kr		DIMENSION				CONNE CTOR		SUITABLE INSERT
MODEL	kr		D	Dl	Da	L	CONNE CTOR		SUITABLE INSERT
CFM88SN-450A22R-13-B	88°	4	50	51	22	40	A	0.4	SNGX 1306ZN
CFM88SN-550A22R-13		5	50	51	22	40	A	0.4
CFM88SN-563A22R-13-B		5	63	64	22	40	A	0.6
CFM88SN-663A22R-13		6	63	64	22	40	A	0.6
CFM88SN-680A27R-13-B		6	80	81	27	50	A	1.3
CFM88SN-780A27R-13		7	80	81	27	50	A	1.3
CFM88SN-980A27R-13		9	80	81	27	50	A	1.3
CFM88SN-7100B32R-13-B		7	100	101	32	50	B	1.8
CFM88SN-8100B32R-13		8	100	101	32	50	B	1.8
CFM88SN-11100B32R-13		11	100	101	32	50	B	1.8
CFM88SN-10125B40R-13		10	125	125.9	40	63	B	2.9
CFM88SN-14125B40R-13		14	125	125.9	40	63	B	2.9
CFM88SN-12160C40R-13		12	160	160.8	40	63	C	4.3
CFM88SN-18160C40R-13		18	160	160.8	40	63	C	4.3
CFM88SN-14200C60R-13		14	200	200.8	60	63	C	6.2
CFM88SN-22200C60R-13		22	200	200.8	60	63	C	6.2

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM88SN	CST4010	CTS15W
