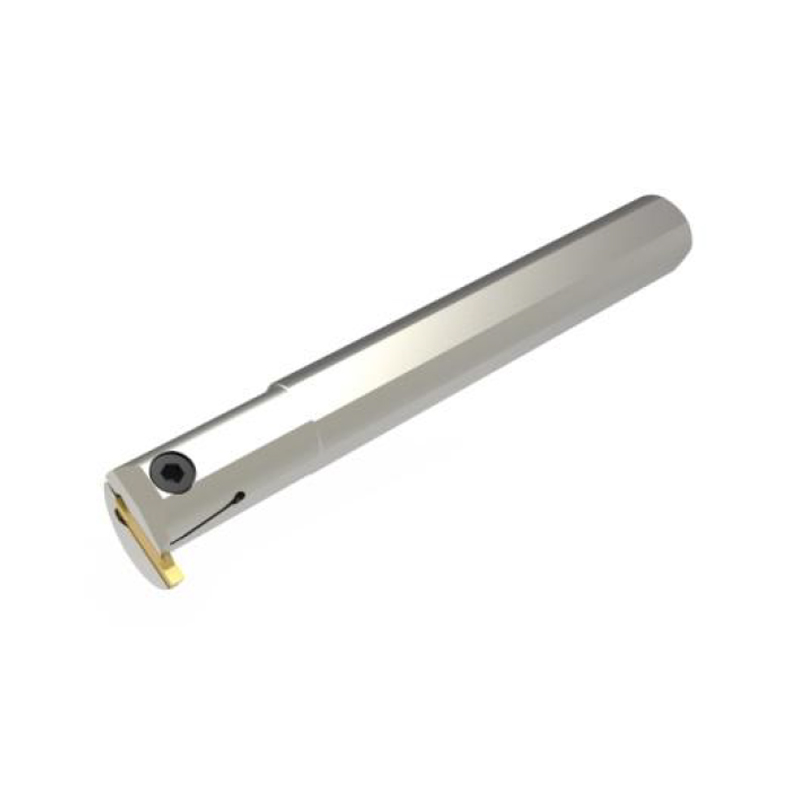

TTIR/L Grooving Tool

INNER HOLE TURNING MILL、GROOVING & PROFILING

Contact now

FEATURE
INQUIRY

FEAURES

Internal grooving tool holder

APPLICATION

Cut width: 2～4mm
Maximum depth of cut: 8.5mm"

PRODUCT MODEL	HOLDER SIZE	DIMENSION								COMPATIBLE INSERT

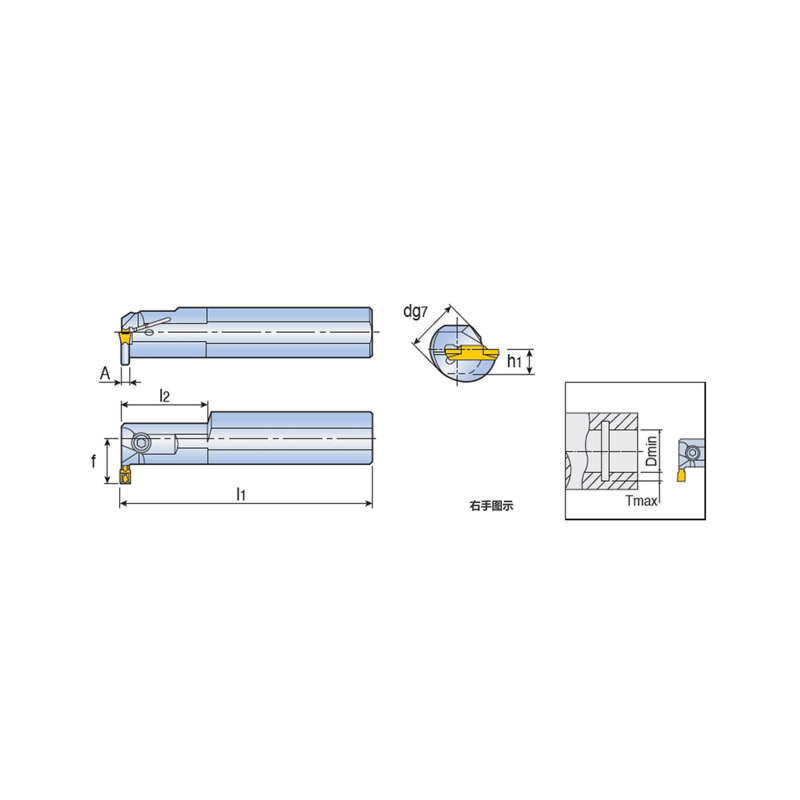

PRODUCT MODEL	HOLDER SIZE	d	11	12	f	hi	A	Tmax	Dmin	COMPATIBLE INSERT
TTIR/L 16-2	2	16	125	一	16.5	7.5	1.8	8.5	25	TDGU TDGX TDGC TDEF
TTIR/L 20-2	2	20	160	40	15.8	9.0	1.6	6.0	25
TTIR/L 25-2	2	25	200	40	17.5	11.5	1.6	5.0	25
TTIR/L 20-2. 5	2.5	20	160	40	15.8	9.0	2.0	6.0	25
TTIR/L 25-2. 5	2.5	25	200	40	17.5	11.5	2.0	5.0	25
TTIR/L 32-2. 5	2.5	32	250	60	19.8	14.0	2.0	4.7	31
TTIR/L 20-3	3	20	160	40	15.8	9.0	2.1	6.0	25
TTIR/L 25-3	3	25	200	40	17.5	11.5	2.1	5. 1	25
TTIR/L 32-3	3	32	250	60	19.8	14.0	2.1	4.7	31
TTIR/L 20-4	4	20	160	40	15.8	9.0	2.9	6.0	25
TTIR/L 25-4	4	25	200	40	17.5	11.5	2.9	5.2	25
TTIR/L 32-4	4	32	250	60	20.8	14.0	2.9	4.7	31

◎INSERTS to be ordere s
◎This SHANK has no internal coolant

ACCESSORY

PRODUCT MODEL	SCREW	WRENCH
PRODUCT MODEL
TTIR/L 16/20-2	CLA0501208	CBL40
TTIR/L 20-2. 5/3/4	CLA0501608	CBL40
TTIR/L 25-2/2. 5/3/4	CLA0502008	CBL40
TTIR/L 32-2. 5/3/4	CLA0502508	CBL40

face machining	Note on insert selection
	First, confirm the minimum machining diameter of end face GROOVING on page E04.
