CLB4 Head changeable drill

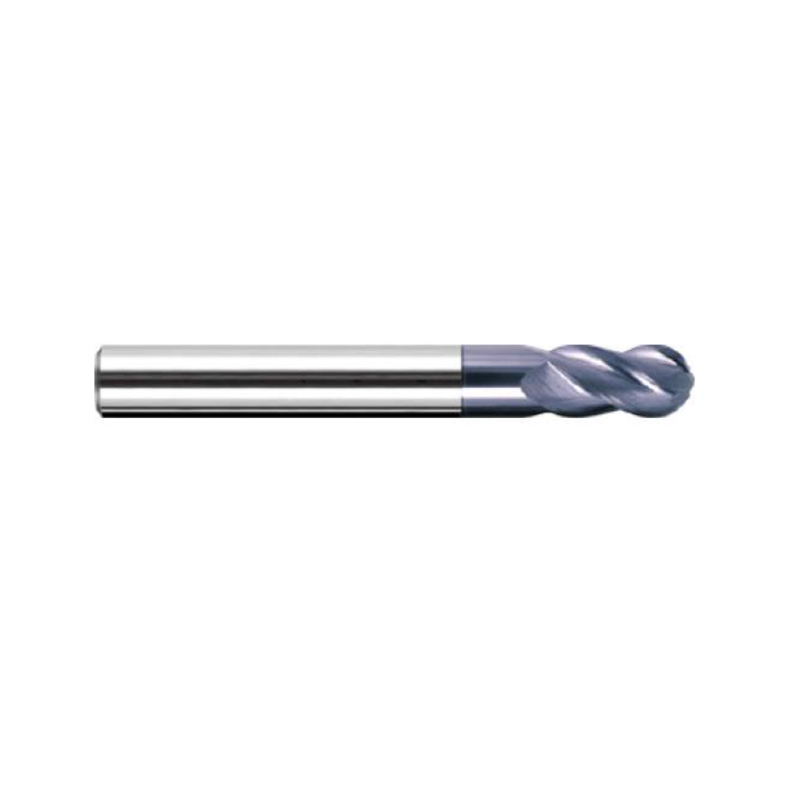

General purpose machining, four-flute straight shank ball nose solid carbide end mill

Contact now

FEATURE
INQUIRY

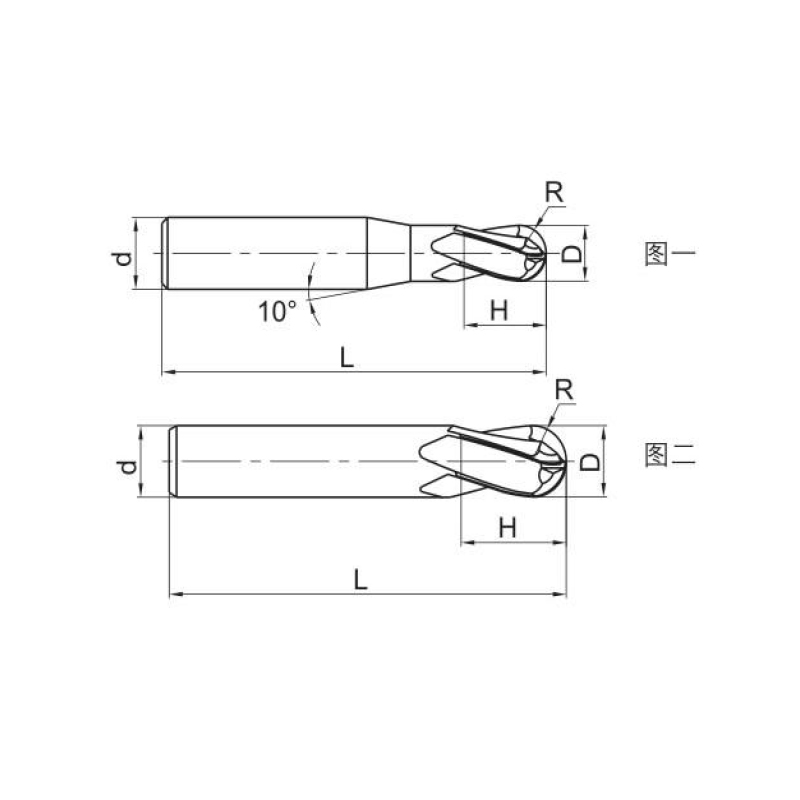

MODEL	TEETH Z	DIMENSION					PIC
MODEL	TEETH Z	D	R	d	H	L	PIC
CLB4-D030H006L50	4	3.0	1.5	6	6	50	PIC 1
CLB4-D040H008L50	4	4.0	2.0	6	8	50	PIC 1
CLB4-D050H010L50	4	5.0	2.5	6	10	50	PIC 1
CLB4-D060H012L50	4	6.0	3.0	6	12	50	PIC 2
CLB4-D080H016L60	4	8.0	4.0	8	16	60	PIC 2
CLB4-D100H020L75	4	10.0	5.0	10	20	75	PIC 2
CLB4-D120H024L75	4	12.0	6.0	12	24	75	PIC 2
CLB4-D140H028L75	4	14.0	7.0	14	28	75	PIC 2
CLB4-D160H032L100	4	16.0	8.0	16	32	100	PIC 2
CLB4-D180H036L100	4	18.0	9.0	18	36	100	PIC 2
CLB4-D200H040L100	4	20.0	10.0	20	40	100	PIC 2

MATERIAL

Processed material
Carbon steel	ALLOY	Pre-hardened steel, hardened steel			ss	CAST iron Ductile Iron	COOPER ALLOY	ALU ALLOY	Titan alloy	Heat res. alloy
		〜40HRC	〜50HRC	〜55HRC
♦	♦	♦	o		o	♦

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CLB4 Head changeable drill suppliers and Wholesale CLB4 Head changeable drill company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
