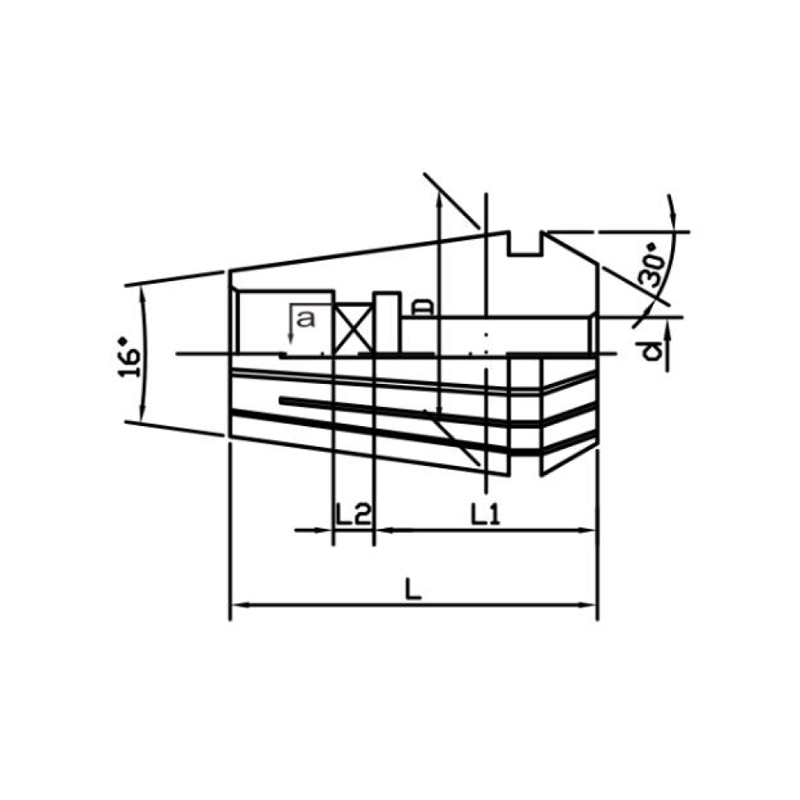

PRODUCT MODEL |
DIMENSIONS |
|||||
|
d |
a |
LI |
L2 |
D |
L |
|
|
ETP-ER16-M2 |
2.5 |
2.0 |
15 |
3 |
16 |
27.5 |
|
ETP-ER16-M3 |
3.15 |
2.5 |
15 |
3 |
16 |
27.5 |
|
ETP-ER16-M4 |
4.0 |
3.15 |
15 |
3 |
16 |
27.5 |
|
ETP-ER16-M5 |
5.0 |
4.0 |
18 |
3 |
16 |
27.5 |
|
ETP-ER16-M6-8 |
6.3 |
5.0 |
18 |
4 |
16 |
27.5 |
|
ETP-ER16-M10 |
8.0 |
6.3 |
18 |
5 |
16 |
27.5 |
|
ETP-ER16-M12 |
9.0 |
7. 1 |
18 |
5 |
16 |
27.5 |
|
ETP-ER20-M2 |
2.5 |
2.0 |
15 |
3 |
20 |
31.5 |
|
ETP-ER20-M3 |
3.15 |
2.5 |
15 |
3 |
20 |
31.5 |
|
ETP-ER20-M4 |
4.0 |
3.15 |
15 |
3 |
20 |
31.5 |
|
ETP-ER20-M5 |
5.0 |
4.0 |
18 |
4 |
20 |
31.5 |
|
ETP-ER20-M6-8 |
6.3 |
5.0 |
18 |
4 |
20 |
31.5 |
|
ETP-ER20-M10 |
8.0 |
6.3 |
18 |
5 |
20 |
31.5 |
|
ETP-ER20-M12 |
9.0 |
7. 1 |
22 |
6 |
20 |
31.5 |
|
ETP-ER20-M14 |
11.2 |
9.0 |
22 |
6 |
20 |
31.5 |
|
ETP-ER20-M16 |
12.5 |
10.0 |
23 |
7 |
20 |
31.5 |
|
ETP-ER25-M2 |
2.5 |
2.0 |
15 |
3 |
25 |
34.0 |
|
ETP-ER25-M2. 5 |
2.8 |
2.24 |
15 |
3 |
25 |
34.0 |
|
ETP-ER25-M3 |
3.15 |
2.5 |
15 |
3 |
25 |
34.0 |
|
ETP-ER25-M4 |
4.0 |
3.15 |
18 |
4 |
25 |
34.0 |
|
ETP-ER25-M5 |
5.0 |
4.0 |
18 |
4 |
25 |
34.0 |
|
ETP-ER25-M6-8 |
6.3 |
5.0 |
18 |
5 |
25 |
34.0 |
|
ETP-ER25-M10 |
8.0 |
6.3 |
22 |
6 |
25 |
34.0 |
|
ETP-ER25-M12 |
9.0 |
7. 1 |
22 |
6 |
25 |
34.0 |
|
ETP-ER25-M14 |
11.2 |
9.0 |
23 |
7 |
25 |
34 |
|
ETP-ER25-M16 |
12.5 |
10.0 |
23 |
8 |
25 |
34 |
|
ETP-ER25-M18-20 |
14.0 |
11.2 |
23 |
8 |
25 |
34 |
|
ETP-ER25-M22 |
16.0 |
12.5 |
25 |
9 |
25 |
34 |
|
ETP-ER32-M1 |
2.5 |
2.0 |
18 |
3 |
32 |
40 |
|
ETP-ER32-M2 |
2.5 |
2.0 |
18 |
3 |
32 |
40 |
|
ETP-ER32-M2. 5 |
2.8 |
2.24 |
18 |
3 |
32 |
40 |
|
ETP-ER32-M3 |
3.15 |
2.5 |
18 |
4 |
32 |
40 |
|
ETP-ER32-M4 |
4.0 |
3.15 |
18 |
4 |
32 |
40 |
|
ETP-ER32-M5 |
5.0 |
4.0 |
18 |
5 |
32 |
40 |
|
ETP-ER32-M6-8 |
6.3 |
5.0 |
22 |
6 |
32 |
40 |
|
ETP-ER32-M10 |
8.0 |
6.3 |
22 |
6 |
32 |
40 |
|
ETP-ER32-M12 |
9.0 |
7. 1 |
25 |
7 |
32 |
40 |
|
ETP-ER32-M14 |
11.2 |
9.0 |
25 |
8 |
32 |
40 |
|
ETP-ER32-M16 |
12.5 |
10.0 |
25 |
8 |
32 |
40 |
|
ETP-ER32-M18-20 |
14.0 |
11.2 |
25 |
10 |
32 |
40 |
|
ETP-ER32-M22 |
16.0 |
12.5 |
25 |
10 |
32 |
40 |
|
ETP-ER32-M24 |
18.0 |
14.0 |
25 |
10 |
32 |
40 |
|
ETP-ER32-M27-30 |
20.0 |
16.0 |
28 |
12 |
32 |
40 |
With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional ETP-ER Tooling System suppliers and Wholesale ETP-ER Tooling System company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.
The following information is help you to understand more:
ChaiTools is specializing in the research and development, design, production, sales and technical support of high-end CNC tools.
